Replacing the Stylus tip

Last Updated: June 20, 2019

Overview

Periodically the capacitive stylus tip may need to be replaced.

Resolution

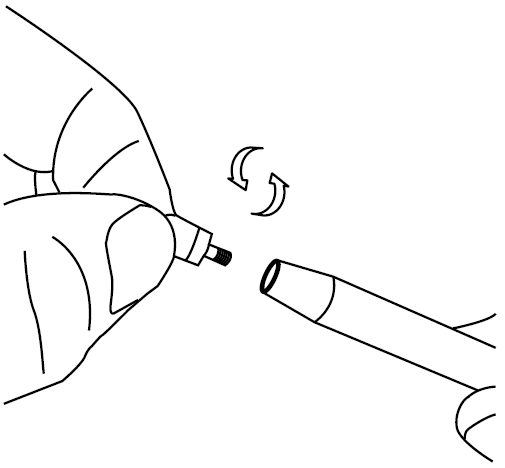

To remove the stylus tip, unthread the tip counterclockwise. To install the new stylus tip, thread clockwise until seated. Stylus tips are available as optional equipment (contact your sales representative to order).

IMPORTANT: Do not overtighten the stylus tip.

Applies To

VERUS® Edge, ZEUS®
