Application Examples
The Expert Tips feature includes reference images of known good and bad vehicle components.
|
Typical Automotive Component and System Checks |
|
|
Powertrain & Exhaust (GeneralTemperatureChecks) |
Ignition Coils and Exhaust Manifolds (misfire) |
|
Catalytic Converter |
|
|
Pulleys/Bearings-Idler,A/C Compressor, Alternator, Water Pump, etc |
|
|
Differential Bearings and Fluid |
|
|
Intercooler |
|
|
Radiator, Thermostat, Coolant Passages/Hoses/Control Valves |
|
|
Heated IAC |
|
|
Engine Block Heater |
|
|
O2 Sensor Heater |
|
|
GlowP lugs |
|
|
EGR |
|
|
Oil, Transmission and Inverter Coolers/Pumps |
|
|
Electrical (General Temperature Checks (Open,Short,HighResistanceConditions)) |
Battery Cables, Wiring, Relays and Switches |
|
Heated Seats, Mirrors, Wipers and Steering Wheels |
|
|
Window, Seat and Wiper Motors |
|
|
Alternator Charging |
|
|
Rear Window Defroster |
|
|
MAF (Hot Wire) |
|
|
Body (LeakChecks) |
Cabin |
|
Windows/Doors |
|
|
Sunroof |
|
|
Chassis & Brakes (General Temperature Checks) |
Bearings |
|
Brake Rotors/Calipers |
|
|
Brake Drums |
|
|
Uneven Tire Wear |
|
|
Power Steering Cooler/Lines |
|
|
Driveshaft Center Support Bearing |
|
|
Typical Automotive Component and System Checks |
|
|
HVAC (General Temperature and Leak Checks) |
General HVAC Conditioned Air Supply Temperature |
|
Condenser/Compressor |
|
|
High and Low Pressure Lines (A/C) |
|
|
Blend Doors |
|
|
Heater Core |
|
|
Blower Motor |
|
|
Typical Motorcycle Component Checks |
|
|
Powertrain & Exhaust (General Temperature Checks) |
Cylinder/Exhaust temperature (misfire) |
|
ExhaustLeaks |
|
|
Radiator, Thermostat, Coolant Passages/Hoses |
|
|
Drive System |
|
|
Electrical (General Temperature Checks (Open, Short, High Resistance Conditions)) |
Battery Cables, Wiring, Connectors, Relays and Switches |
|
Heated Sea tand Grips |
|
|
Chassis & Brakes (General Temperature Checks) |
Bearings |
|
Brake Rotors/Calipers |
|
Examples
The thermal images in this section have been modified for clarity.
The temperature values, target indicator and color palette have been removed.
|
Description |
Thermal Image Example |
|---|---|
|

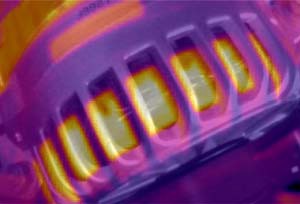

Alternator Operation |
|
|
Exhaust Manifold Leak |
|
|

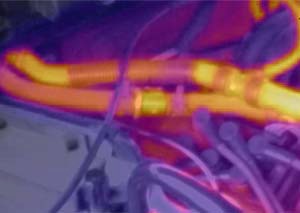

Coolant Control Valve (Heater Core) |
|
|

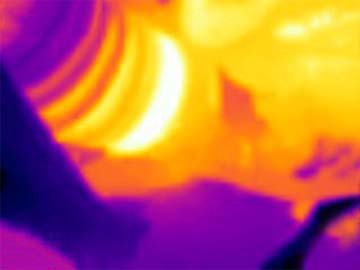

Intercooler |
|
|

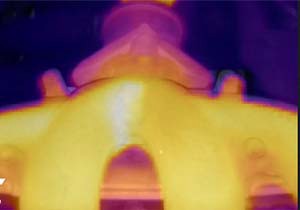

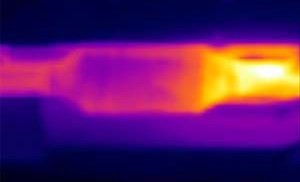

Catalytic Converter |
|
|

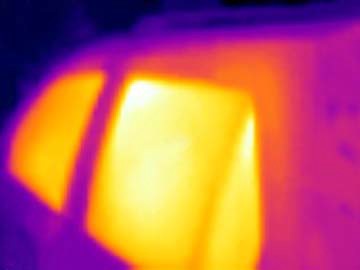

Alternator Bearing |
|
|

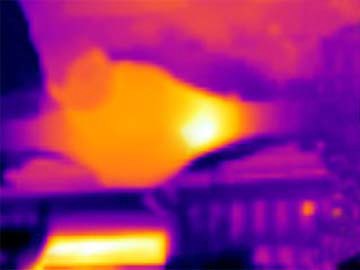

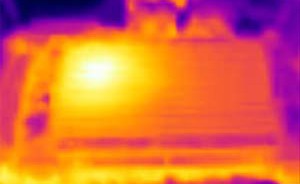

Cabin HVAC Leaks |
|
|

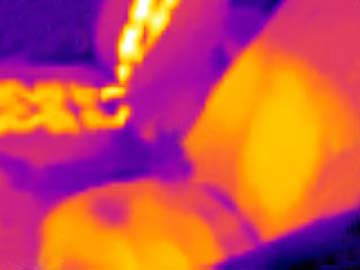

Heated Seats |
|
|

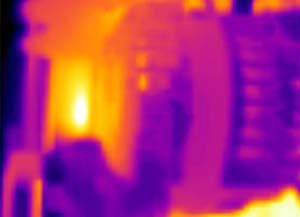

Differential Bearing |
|
|
Wheel Bearing (Hub Asy.) |
|
|

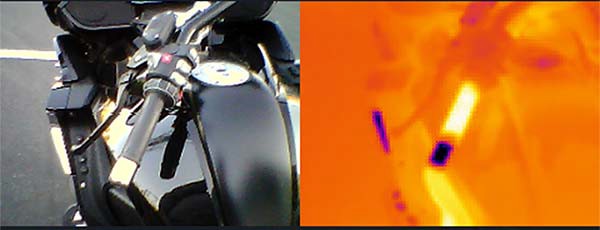

Motorcycle Heated Grip (Split-Screen) |
|
|

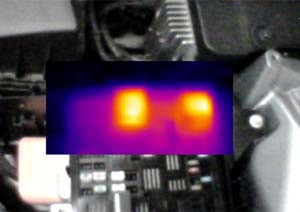

Electrical Relays (Picture-in-Picture view) |
|
