If you have not already linked your diagnostic tool to your Snap-on Profile Manager account, proceed to the next step. If you have, proceed to "Create an OEM account (FCA)".

1.

Connect your compatible diagnostic tool to Wi-Fi.

2.

Select the Tools icon from the Home screen.

3.

Select Get Connected

4.

Remember the following information from this screen:

●

Serial Number

●

Pin Code

●

Activation Code

The FCA account requires payment.

1.

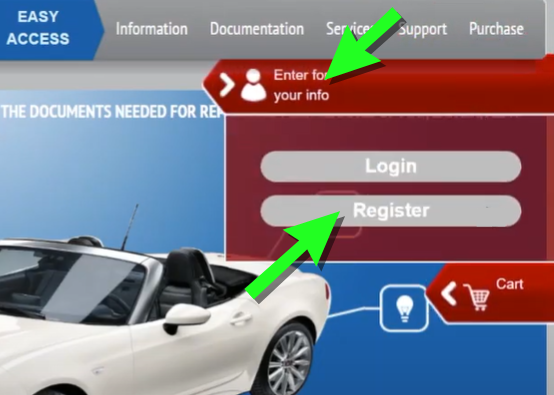

Go to technicalinformation.fiat.com click the profile icon and then select Register.

2.

Follow the screen prompts to register, starting with Accept the Terms and Conditions.

3.

On the Technical Information Registration screen, enter your VAT-ID number. If you are a first time user then select NEW.

4.

If needed, enter your company information as required including your VAT-ID (Value Added Tax Identification Number ). Attach (Attach File button) the required VAT documents as evidence of your VAT numbers and operation in the automotive sector.

5.

Enter all registration information as required including your actual business location and billing address. Select Save as required and follow the screen prompts to continue.

6.

Complete the security question section.

7.

Select your Type of Business and then select Save to compete the registration. You will be sent a confirmation email with your "first time" user ID and password.

8.

Open the email sent to the address you used to register and note the generated "first time" user ID and password. This email may take up to ten days to arrive.

9.

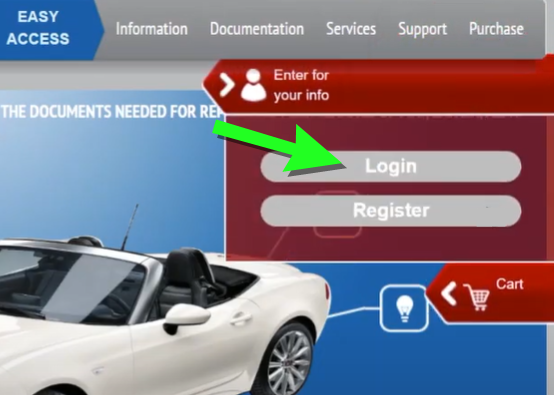

After you receive your "first time" user ID and password, return to technicalinformation.fiat.com select Login (to be redirected to the FCA website).

10.

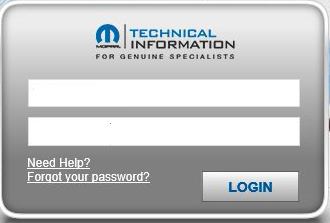

On the FCA website, enter your "first time" user ID and password.

11.

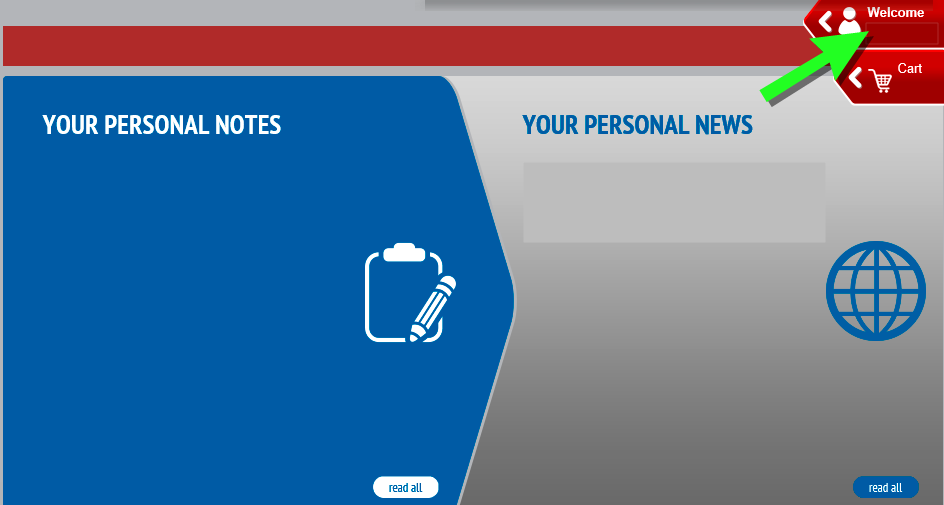

On the main page click on the profile icon to access the menu.

12.

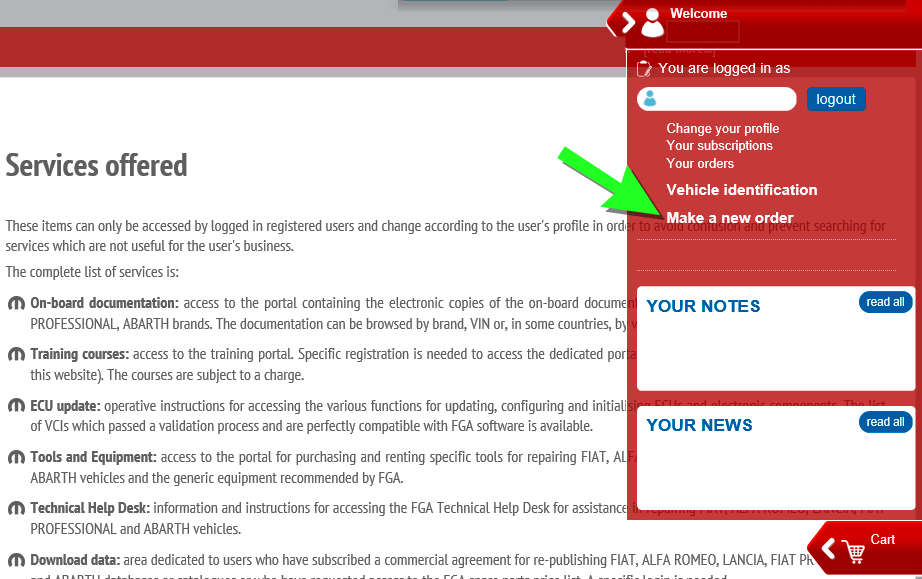

Select "Make a new order", this allows you to setup your desired diagnostic tool access subscription.

13.

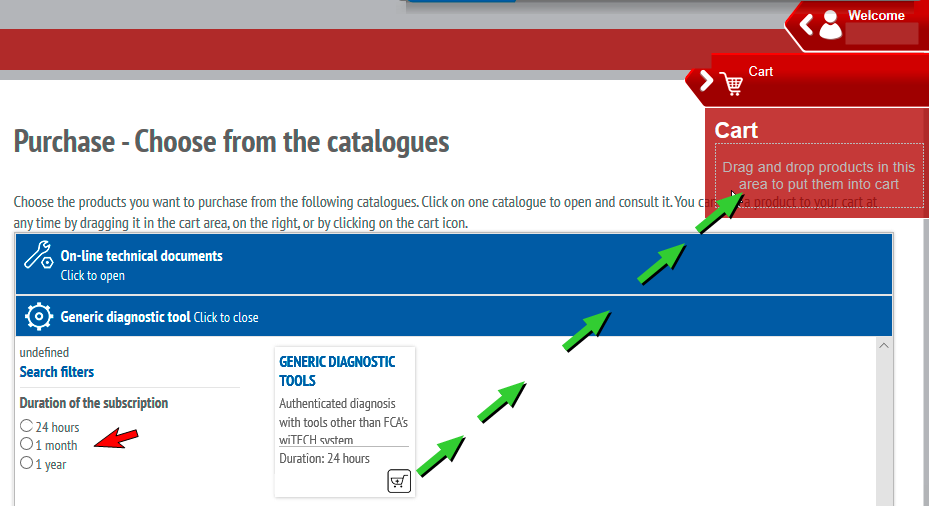

Select the “Generic diagnostic tool” tab and then choose the subscription time period (e.g. 24 Hr, 1 mth, 1 yr. etc) and then drag/drop your selection into your shopping cart.

14.

Confirm your purchase and make the required payment.

15.

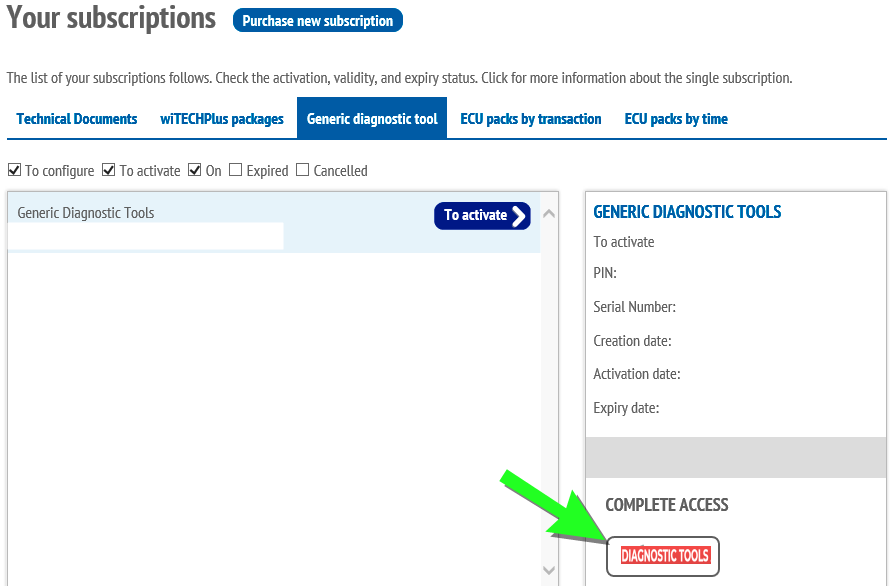

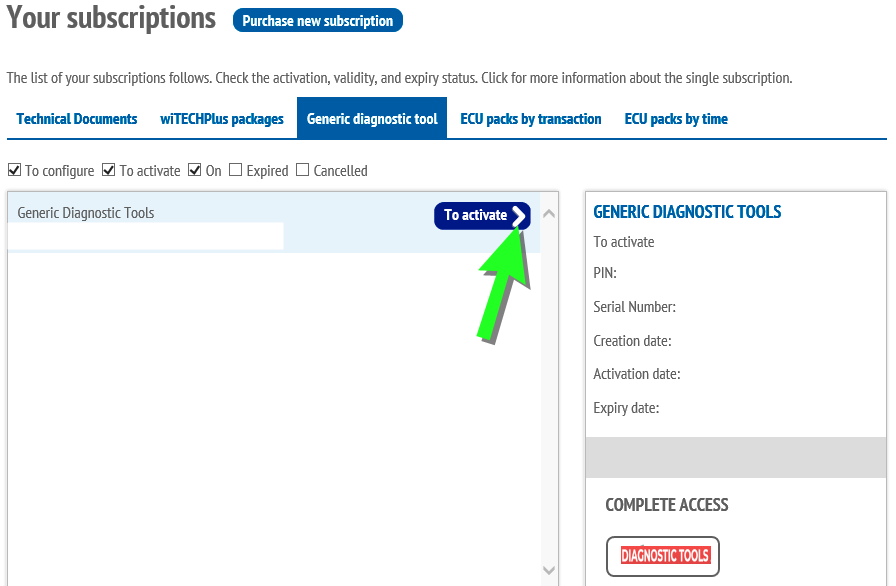

After the payment has processed, you need to activate your subscription. Click on your profile icon (like before) to access the main menu, and select “Your subscriptions”, then select the “Generic diagnostic tool” tab and click the arrow on the “To activate” button to activate it.

16.

Confirm your activation information on the screen, then click the "Diagnostic Tools" button.

17.

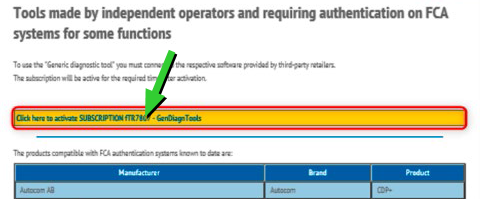

To complete the activation, click the yellow button "Click here to activate...." on the activation screen.

Your FCA account is now active.

If you do not have a Snap-on Technician Profile, you need to create one first, see Snap-on Technician Profile

If you are already using the Snap-on Cloud (ALTUSDrive.com), you already have a Snap-on Technician Profile.

1.

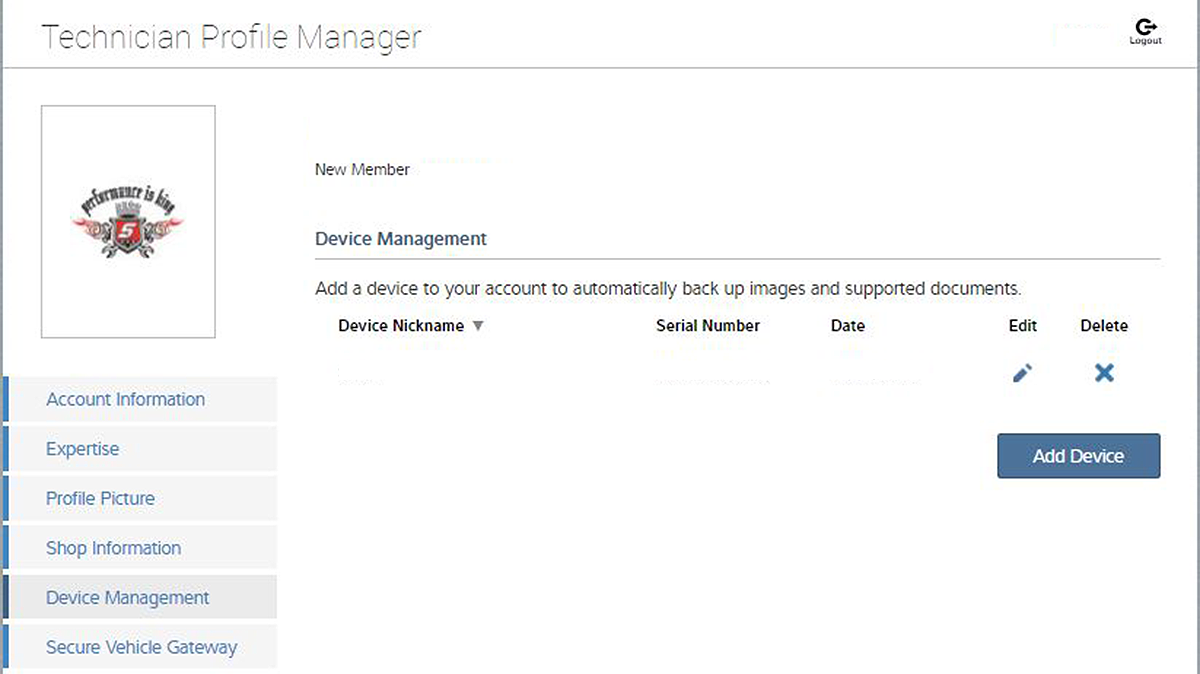

If you already have a Snap-on Technician Profile, log in and select the Device Management tab.

2.

(If you have not already linked your diagnostic tool to your Snap-on Technician Profile perform this step, if you have, then proceed to the next step.) Enter your Diagnostic Tool Pin Code and Serial Number from the Get Connected screen of your tool (See "Step 1 - Get your diagnostic tool information" at the beginning of these instructions).

3.

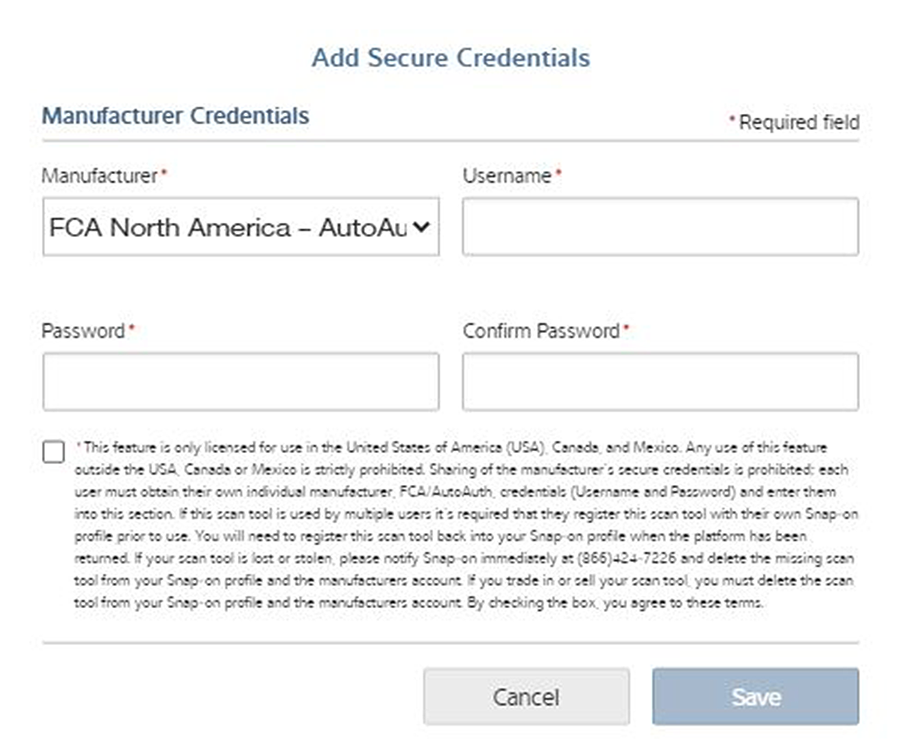

Select the Security Link tab, then select Add Secure Credentials.

4.

Enter your OEM account username and password and select Save.

5.

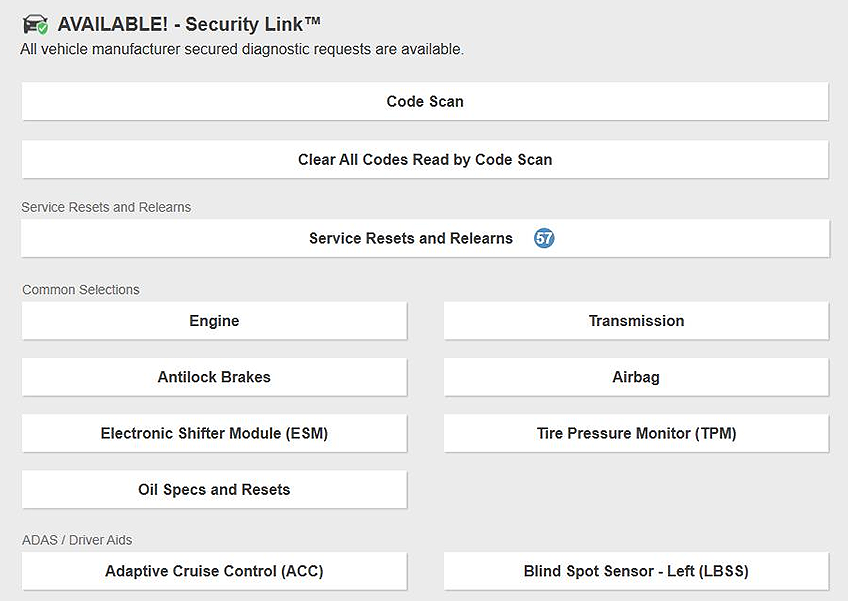

Your diagnostic tool is now linked to your OEM account which allows you to connect and access the applicable secured gateways during scanner use.
