Select Scanner
from the Home Screen, > Identify the Vehicle > Select a System > Functional Tests
Functional Test capability, availability, navigation and terminology is vehicle manufacturer dependent and will vary.
Functional tests may include:
| ● | Information Tests—read-only tests (i.e. selecting “VIN” to display the VIN of the vehicle). |
| ● | Toggle Tests—component state change tests (i.e. switching a solenoid, relay, or switch, between two operating states). |
| ● | Variable Control Tests—command variable value tests (i.e. varying spark timing in 1° increments or EGR valve duty cycle in 10% increments). |
| ● | Reset Tests—reset the adaptive, or learned, values that are stored in the vehicle electronic control module memory. |
| ● | Scripted Tests—preconfigured tests that are run when performing certain repairs (i.e. bleeding brakes with ABS). |
Follow all screen instructions while performing tests.
Data List icon, used on some tests allows you to change which data displays.

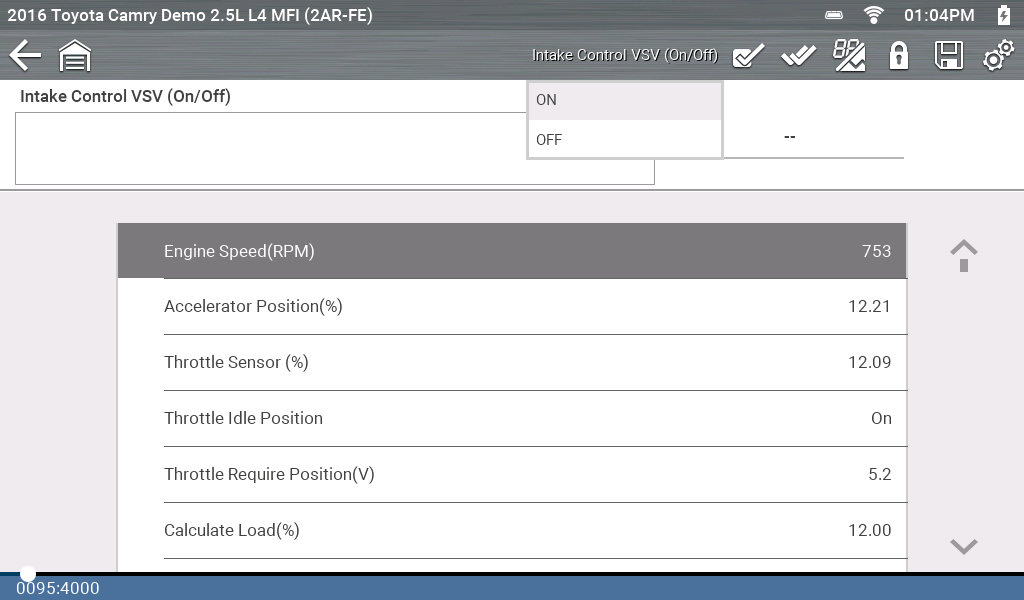

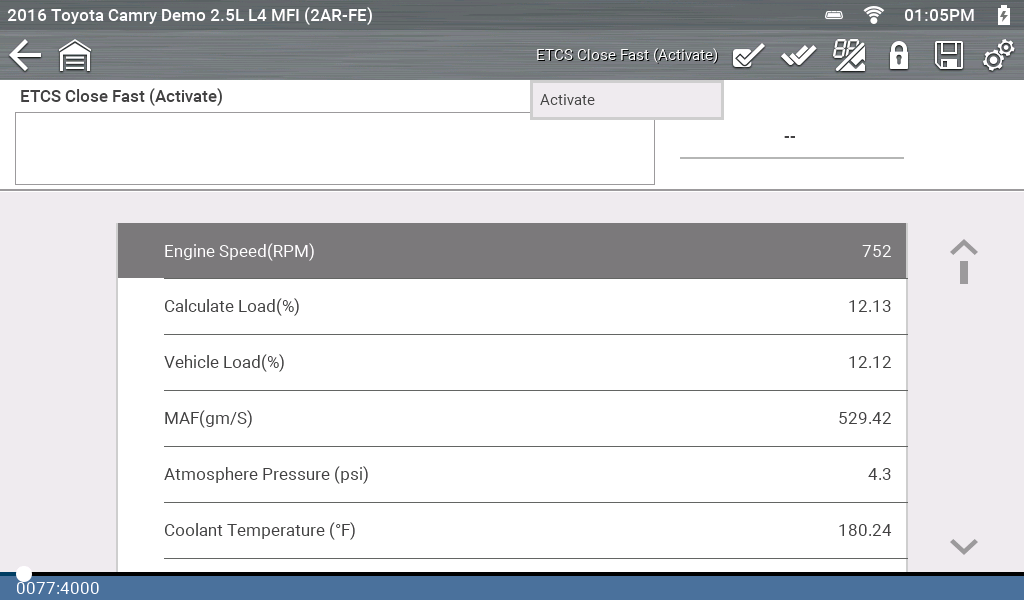

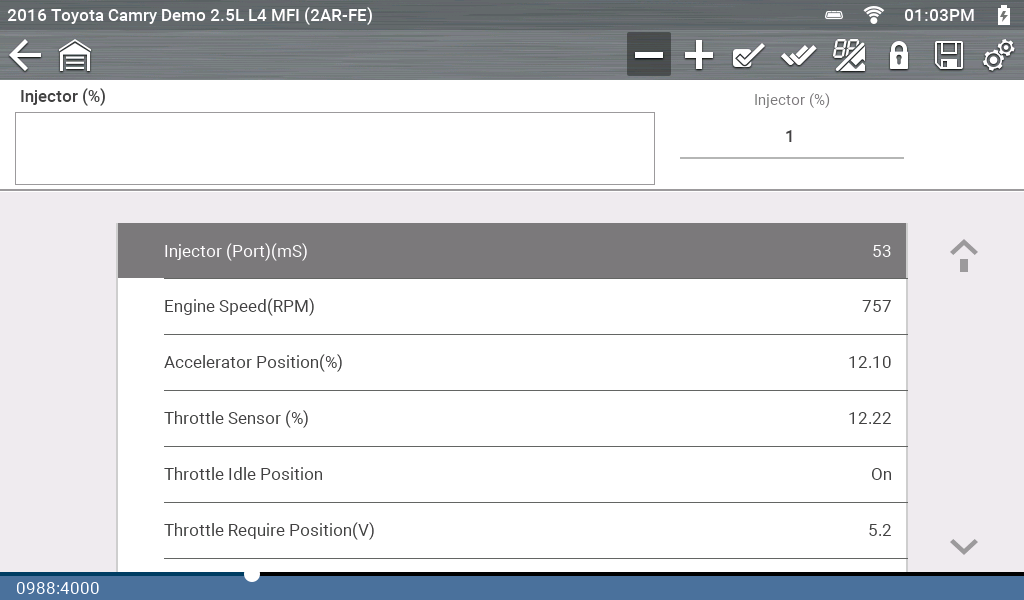

Typical functional test screens (shown below), showing differences in tests and controls:
