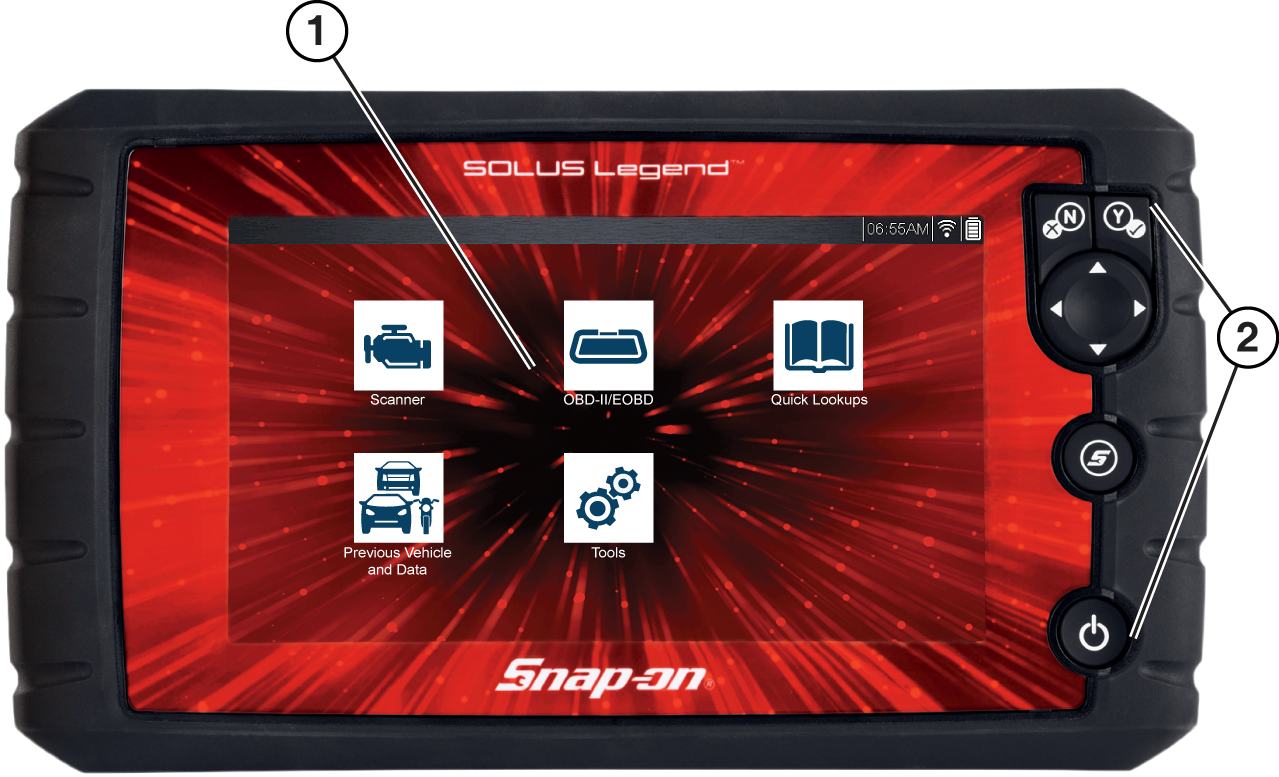

1. | Touch Screen |
2. | Control Panel |

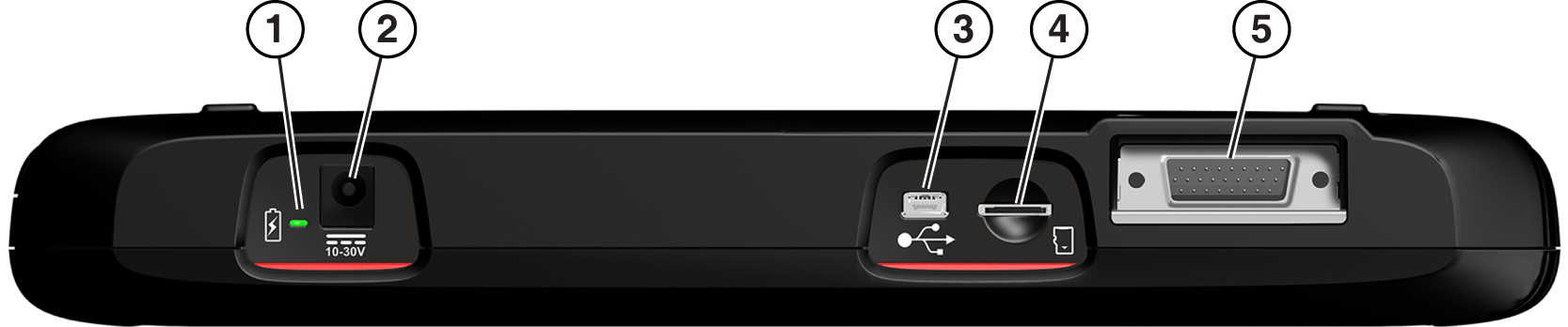

Connectors and jacks for data communication cables and the AC power supply are located on the top of the diagnostic tool.
1. | Battery Status Indicator LED |
2. | Power Supply Jack - AC power supply connection |
3. | Mini USB Jack - USB cable connection used to transfer saved data files to a personal computer |
4. | Micro secure digital (uSD) Card - contains operating system programming.IMPORTANT The uSD card must be installed for the diagnostic tool to operate. Do not remove the uSD card while the diagnostic tool is powered on. |
5. | Data Cable Connector - Data cable connection used to connect the diagnostic tool to a vehicle data link connector (DLC) |

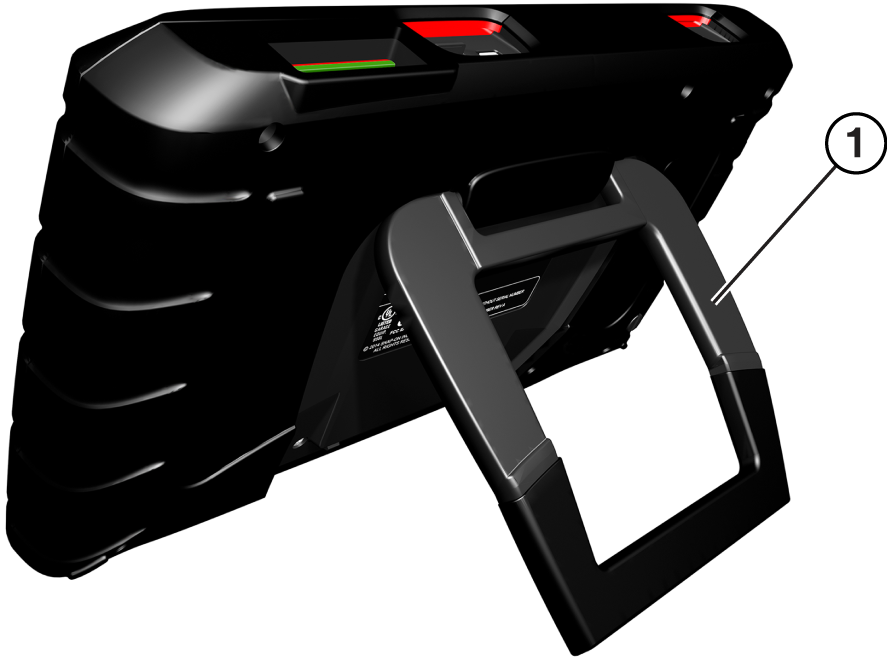

1. | Built in-Stand |
There are four “push type” control buttons and one “thumb pad rocker type” multi-directional button located on the right side of the diagnostic tool. All other diagnostic tool operations are controlled through the touch screen.
|
|||
---|---|---|---|
Item |
Button |
Description |
|
1 |
|
N/Cancel - Push type button |
To exit a menu or program. To close an open list and return to the previous menu or screen. To answer “No” when a yes/no choice is given. |
2 |
|
Y/Accept - Push type button |
To confirm a selection from a menu or program. To select an item that was highlighted using the direction arrows. To advance to the next screen in a series. To answer “Yes” when a yes or no choice is given. |
3 |
|
Directional - Thumb pad rocker type buttons |
Buttons move the cursor or highlight in their respective direction: Up ( Down ( Left ( Right ( |
4 |
|
S (Shortcut) - Push type button |
Programmable function button that can provide a shortcut for performing a variety of routine tasks. Refer to Configure Shortcut Key for additional information. |
5 |
|
Power (On/Off) - Push type button |
Turns the diagnostic tool on and off. Also, press and hold for 5 seconds for emergency shutdown. |

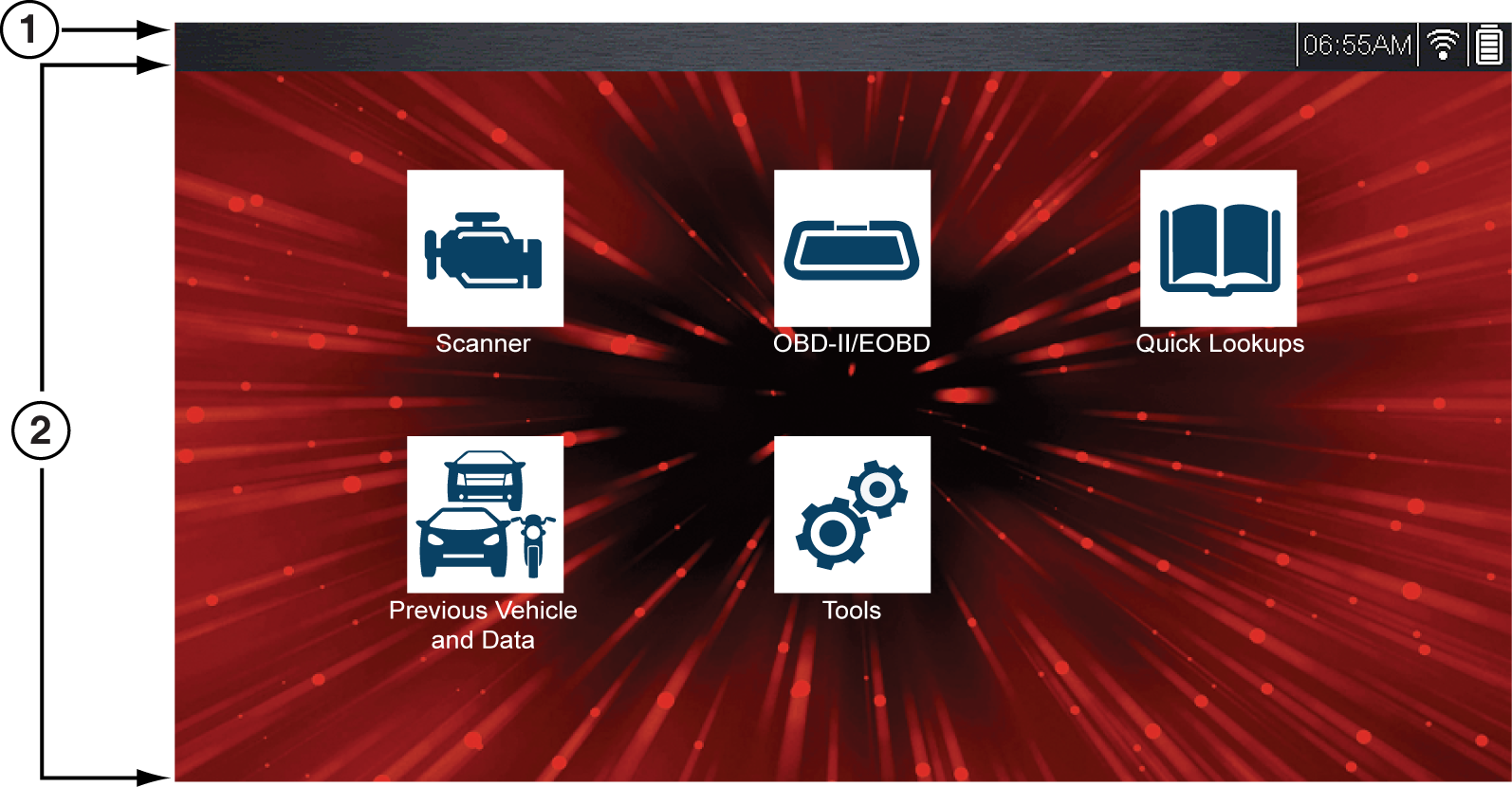

The Home screen includes a title bar and main body. The Home screen contains the primary diagnostic tool function icons.
1. | Title Bar |
2. | Main Body |
Title Bar
The title bar at the top of the screen provides basic information about current diagnostic tool operating conditions. Title bar options vary depending upon vehicle make and model, what function is active, what test is being performed, or what menu is selected. The title bar contains information only, there are no selectable items.
Elements of the Title bar let you know at a glance:
● | Which diagnostic tool function is active |
● | The current time |
● | Wi-Fi signal strength |
● | The source and status of the power being supplied to the diagnostic tool |
A real time clock displays to the left of the power supply icon. The clock is powered by a dedicated internal battery, so the correct time is maintained even when the main battery pack is discharged. Use the Tools function to set the clock and format how time is displayed.
The Title bar displays other information that varies depending upon what functions are being performed. Other information may include:
● | The identification (ID) of the test vehicle |
● | The name of the active menu or function |
● | The name of the test being performed |
Icon |
Function |
Icon |
Function |
|
Full Battery Charge Level - Indicates power is being supplied by the internal battery pack. Horizontal bars diminish as the battery discharges. |
|
External Power Connected - Indicates power is being supplied through the data cable connection to a vehicle or by the AC Power Supply and charging the battery pack. |
|
Low Battery Charge Level - Indicates the internal battery pack is low and needs to be recharged immediately. A warning message will also display on the screen when the battery gets low. |
|
Wi-Fi Signal Strength - Indicates signal strength of the wireless network connection. |
Each available diagnostic tool function is represented by a icon on the Home screen. Select an icon from the Home screen to start a function. You can also use the control buttons to select an icon. Use the directional button to highlight the desired function and then press the Y/Accept to select it.
Function Name |
Function Icon |
Description |
Scanner |
|
Used to communicate with the electronic control systems of a vehicle. This function allows you to retrieve diagnostic trouble codes (DTCs), view PID data and perform diagnostic tests. |
OBD-II/EOBD |
|
Allows you to access generic OBD-II/EOBD data and tests without identifying the vehicle being tested. |
Quick Lookups |
|
Provides quick access to the OEM Oil Specs and Resets and Tire and Wheel Service information and TPMS functions. |
Previous |
|
Allows you to quickly reconfigure the diagnostic tool to a recently tested vehicle and to access saved data files. |
Tools |
|
Allows you to adjust diagnostic tool settings to your personal preferences and perform other special functions. |
