Basic Features / Controls / Navigation

The ShopStream Diagnostic Suite program is used for all diagnostic functions. The ShopStream Diagnostic Suite icon is located on the Windows desktop.

The program is automatically started when the diagnostic tool is turned on through the Windows “start up” folder function. Once started the Home Screen displays, see Home Screen Layout. The program runs in a normal window and can be minimized, resized, and closed like any other Windows program.

To access the Windows desktop, minimize the program window, or use the Desktop icon, see Toolbar Icons

The ShopStream Diagnostic Suite can also be started from the Windows Start menu.

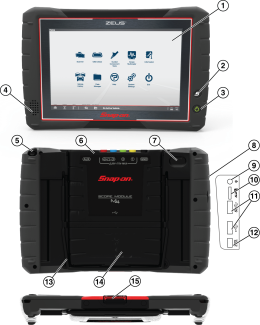

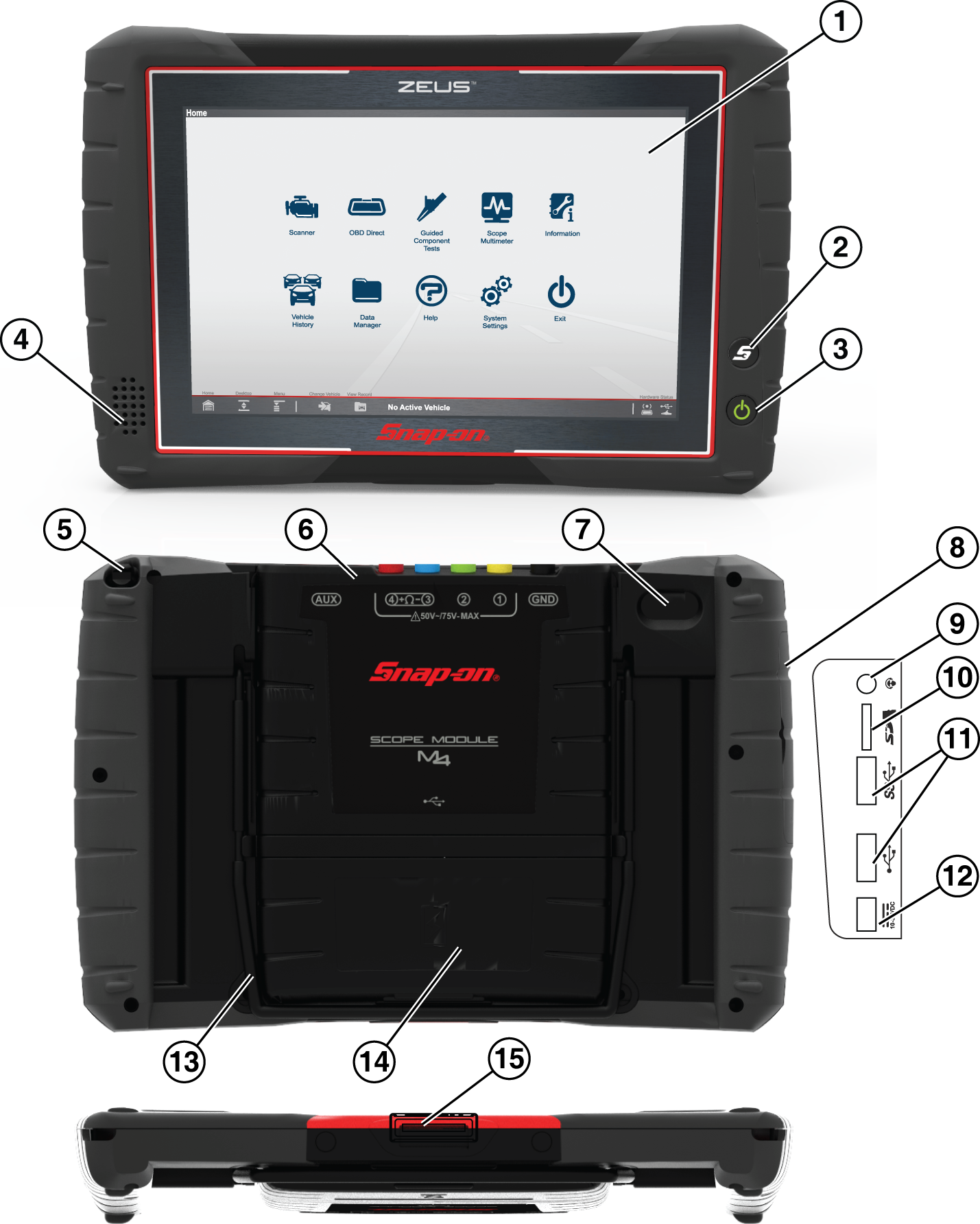

1. Capacitive Touch Screen
2. Shortcut (S) Button (special functions)
3. Power Button (with backlit LED functions)
4. Audio Speaker
5. Stylus Storage
6. Scope Module M4 (removable)
7. Camera Lens
8. Communication and Power Jacks Cover
9. Head Phone Jack
10. Micro SD Card Slot
11. USB (universal serial bus) Jacks (2)
12. DC Power Supply Input Jack
13. Collapsible Stand
14. Battery Pack
15. Docking Station Connector

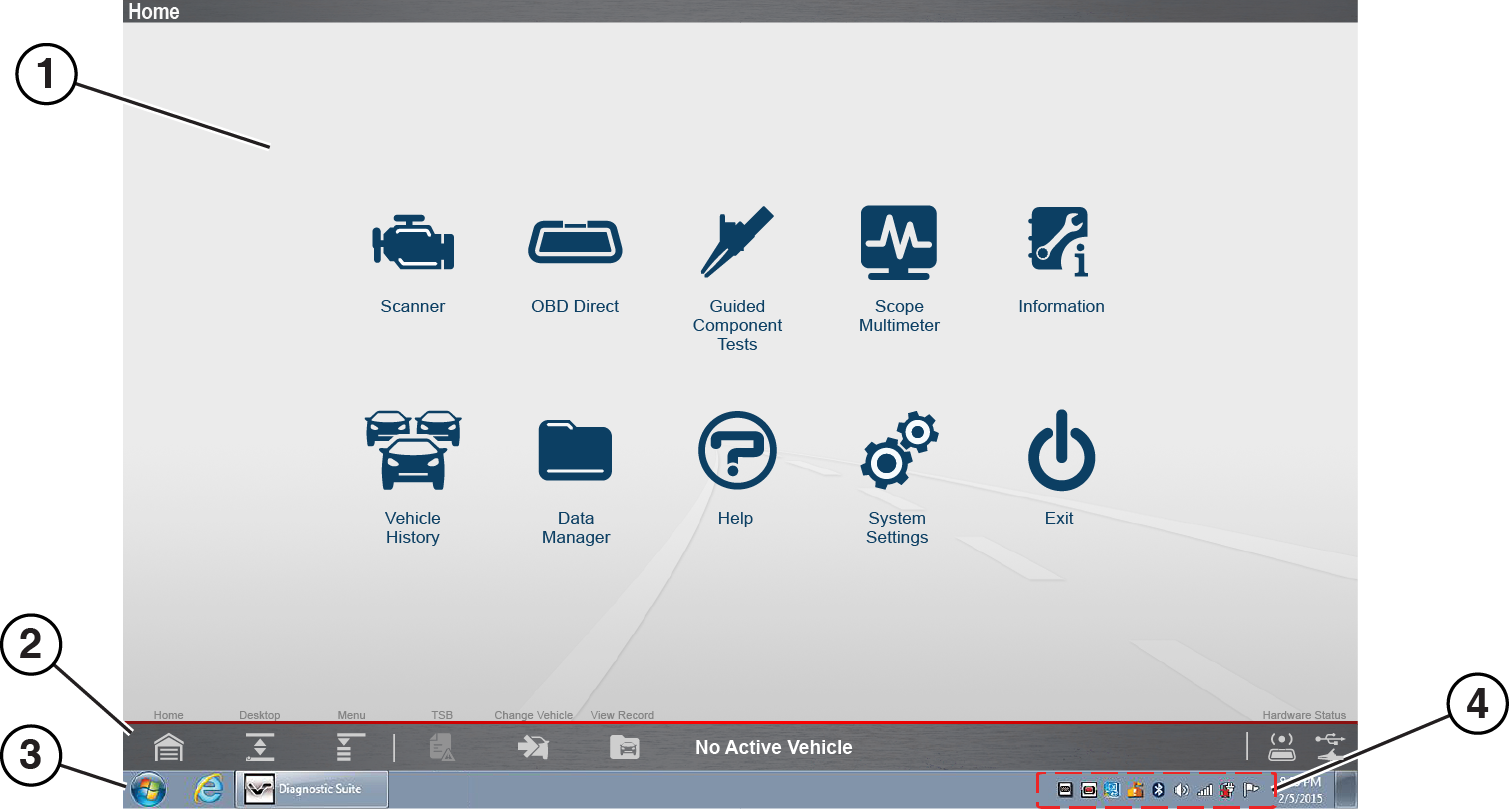

The Home screen includes Function Icons, the Main Toolbar and Windows Taskbar.

1. Home Screen (Function) Icons
2. Main Toolbar
3. Windows Taskbar
4. Windows Taskbar Notification Area

The Home Screen Icons configure the diagnostic tool for the type of test to be performed. The following table gives brief descriptions of the available icons, which operations are available depends upon the individual configuration of your system. Use the stylus or your finger tip to select from the icons.



Icon

Description

Scanner

Configures the diagnostic tool to operate as a scan tool.

OBD Direct

Allows you to perform generic OBD-II or EOBD system tests without identifying the specific vehicle.

Guided Component Test

Opens a diagnostic database of specific tests for the identified vehicle.

Scope Multimeter

Configures the diagnostic tool to operate as a lab scope, graphing multimeter, or digital multimeter.

Vehicle History

Identifies the test vehicle and organizes and manages work in progress and service records.

Data Manager

Opens the organization system for saved data files.

Information



Provides the information needed to make repairs once you have made your diagnosis. The linked program varies by region.

Help



Selecting Help from the Home screen opens the Snap-on Diagnostics website.

System Settings

Establishes and manages connections to peripheral devices, such as the Scan Module.

Exit



Closes the diagnostic tool software and returns the display to the Windows desktop.

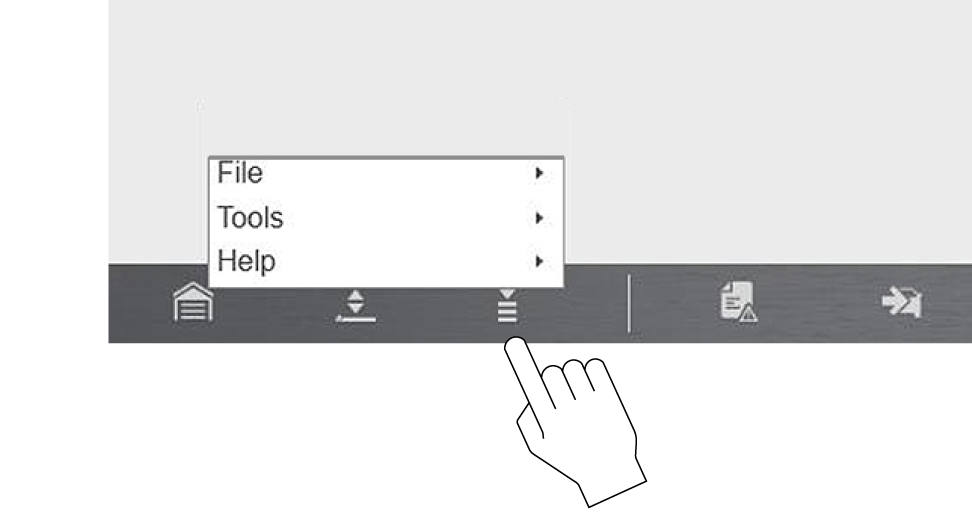

The Menu icon on the Toolbar at the base of the display screen provides various system information. Menu choices are applicable to the active screen or function.

The HELP option is available from all screens. The menu choices will vary, however HELP always includes:

● Version Info - Displays the software version information.
● Activation Status - Displays the software licensing details for the system, and activation status for the diagnostic tool and all other modules.

Operation of the icons located on the toolbar are described in the table below:

Icon

Description

Home

Selecting this icon returns you to the Home screen from any test.

Desktop

Selecting this icon toggles the Windows taskbar on/off at the bottom of the screen, and allows you access to the Windows desktop.

Menu

Selecting this icon opens a menu that provides information and basic operations and features for the current screen.

Technical Service Bulletins

Provides Technical Service Bulletin information (if available) for the identified vehicle.

Change Vehicle

The currently identified vehicle is shown to the right of the icons, selecting allows you to change the identified test vehicle.

View Record

Selecting the icon opens an editable worksheet of vehicle records.

DLC Voltage

When the compact scan module is connected to a vehicle the vehicle’s OBD-II data link connector (DLC) voltage is displayed.

Compact Scan Module Hardware Status

Indicates the connectivity status of the Compact Scan Module. Icon changes depending on status.

Scope Module Hardware Status

Indicates the connectivity status of the Scope Multimeter Module. Icon changes depending on status.

Wi-Fi Icon

Indicates the connectivity status of your Wi-Fi connection.

The Diagnostic Suite units of measurement can be changed for temperature, vehicle speed, air pressure and other pressure readings. Choose between US customary or metric units of measure.

1. Select Scanner..
2. Select the Menu icon from the lower toolbar.

3. Select Tools > Units Setup..

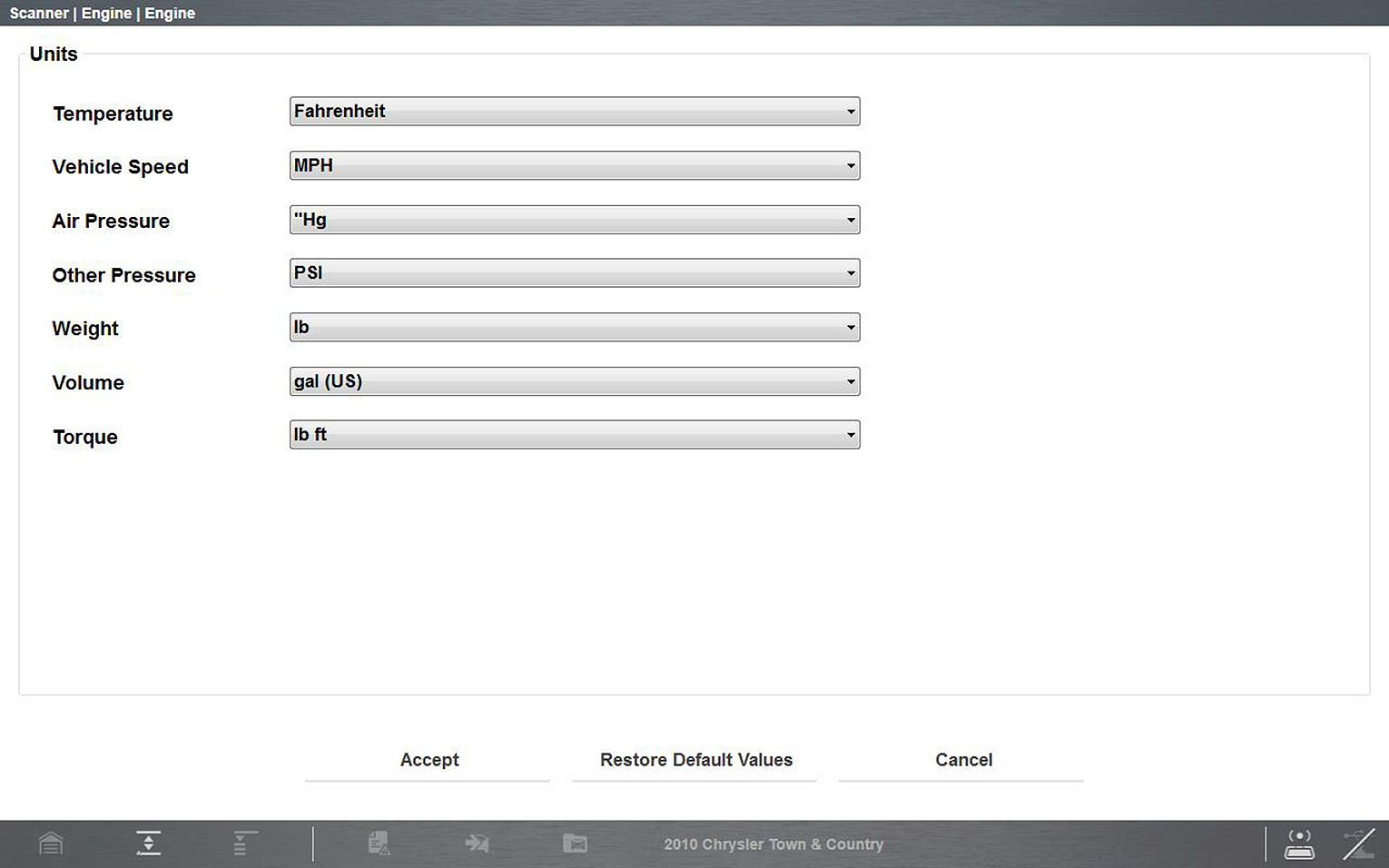

The Units setup dialog box opens.

4. Use the dropdown menus to select the desired value for each item.
5. Select Accept to close the dialog box and apply the changes.
