Reviewing Data and Using Zoom (Review Mode)

Review Mode allows you to search through the captured data in detail to find events of interest, such as glitches and signal losses.

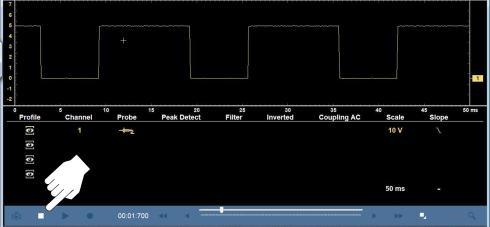

Press the Pause icon () to open Review Mode.

To search through the captured data, select the desired control icon to move forward or backward through the data. The following control icons are active in the lower tool bar in Review Mode:

You can also use the data buffer indicator slider to quickly scroll through the captured data in buffer memory.

Name	Icon	Description
Step Back		Moves to the previous point in the data
Back 1 Frame		Moves to the previous frame in the data
Start (Capture)		Resumes data capture
Play		Plays back the captured data in a continuous loop at actual speed
Forward 1 Frame		Moves to the next frame in the data
Step Forward		Moves to the next point in the data
Expand/Collapse		Expands and collapses the Trace Detail area on the screen
Zoom		Increases or decreases magnification of the data

As there is a direct relationship between the length of time the data is captured in, and the resultant level of detail you will have when reviewing it, review the information in Capturing Data (Capture Mode) for tips on capturing and reviewing data.
