Home Screen: [Typical] Scanner (Vehicle Identification) > (Vehicle System Menu) > (Code Scan)

Code Scan quickly scans all supported vehicle control modules for codes and OBD-II monitor readiness. See Vehicle Code Scan for information.

Home Screen: [Typical] Scanner (Vehicle Identification) > (Vehicle System Menu) > (Vehicle System Main Menu) > (Codes Menu)

To view trouble codes, select Codes Menu and then make any sub-menu selections as applicable (if available). Depending on the vehicle manufacturer, the “Codes Menu” and sub-menu selection names will vary (e.g Codes, Codes Menu, Codes Only, Codes (No Data), Service Codes, Display Codes, etc.).

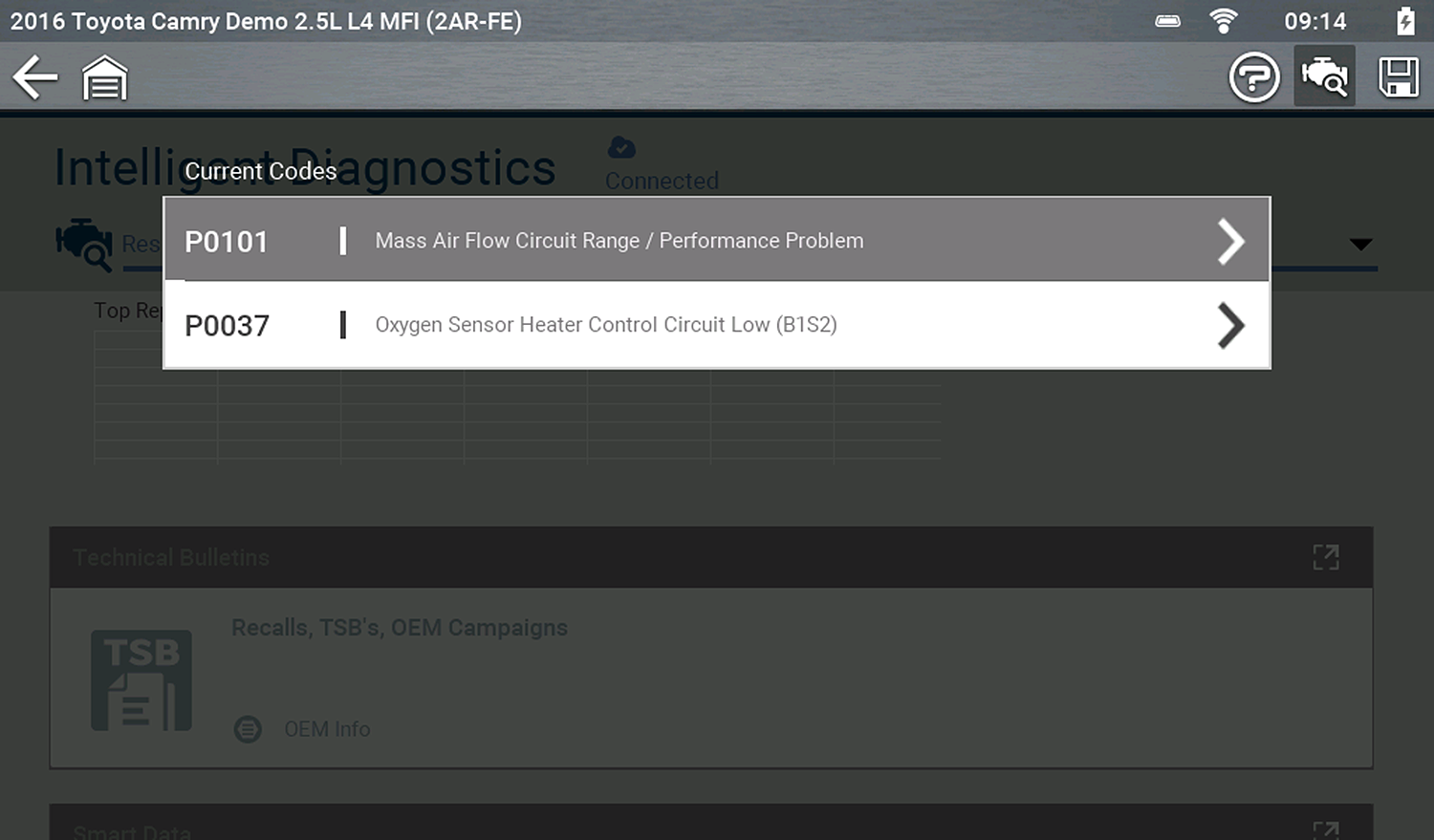

Home Screen: [Typical] Scanner (Vehicle Identification) > (Vehicle System Menu) > (Vehicle System Main Menu) > (Codes Menu) > (Display Codes)

Display Codes may be a sub-menu of the Codes Menu, and typically displays a list of the current trouble codes, however sub-menu selections may also be required.

Intelligent Diagnostics

Intelligent Diagnostics may be available for a selected code from the Display Codes screen .

If active, select the Diagnose icon to open Intelligent Diagnostics, see Fast-Track® Intelligent Diagnostics for additional information.

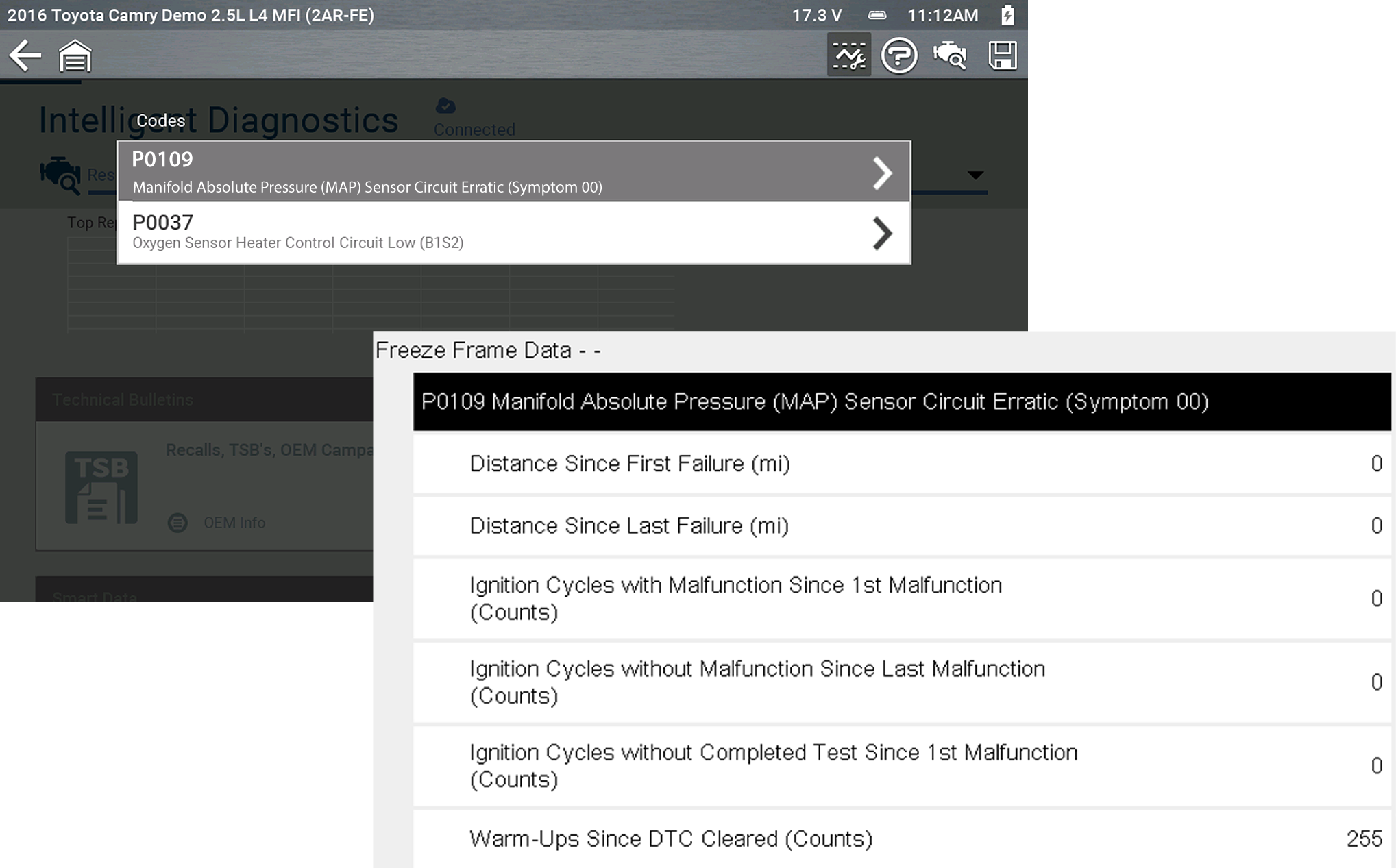

Home Screen: [Typical] Scanner (Vehicle Identification) > (Vehicle System Menu) > (Vehicle System Main Menu) > (Codes Menu) > (Display Codes) > (Freeze Frame/Failure Records)

Freeze Frame/Failure Records. may be a sub-menu of the Codes Menu and displays the last code that was set.

Selecting the Freeze Frame icon displays the corresponding Freeze Frame data that was captured when the code was set.

Home Screen: Scanner (Vehicle Identification) > (Vehicle System Menu) > (Vehicle System Main Menu) > (Clear Codes)

Clear Codes allows you to erase codes from ECM memory.

Clearing codes erases all temporary ECM information, including Freeze Frame/Failure Records. Check and/or record all vital diagnostic information before clearing codes.
