Backup Setting allows you to choose the interval for displaying the backup reminder message, or turn the reminder off.

Message options are:

●

Every Week

●

Every 2 Weeks

●

Every 4 Weeks

●

Never

Backup allows you to back up your saved data to a designated file on the internal hard drive, or to an external drive (e.g. USB flash drive). This option can be used as general maintenance to ensure you have a safe backup of your saved data, or if an issue occurs where a system restore (see Operating System Restore) is necessary and you need to retain your saved data.

Only the following types of data are backed up:

●

ShopStream Data (saved movie/data files)

●

Lab Scope Settings (presets)

●

Vehicle History Records and Favorites

1.

From the Home screen select System Settings.

2.

From the System Settings main menu select Data Backup > Backup.

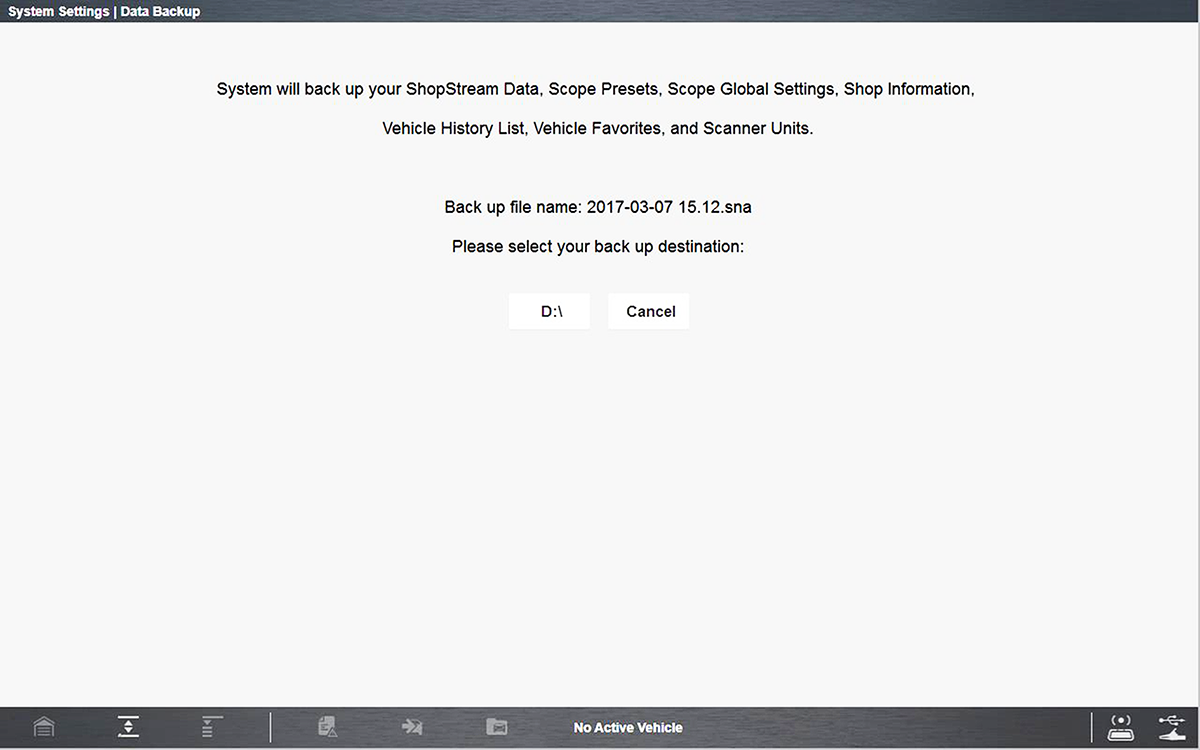

The destination drive dialog box opens.

3.

Select a drive destination.

Drive designations (e.g. E:, F: etc.), are only visible when external drives are connected to the diagnostic tool.

A progress screen is displayed as the backup file is saved to the root of the drive selected with a file extension of .sna. Then a confirmation screen is displayed.

4.

Select OK to complete the procedure.

The Restore option is used to restore your backed up data, in the event that the data is lost or if a system restore (recovery) has been performed.

This function is only applicable when a backup file has been previously saved (file extension .sna). See Backup for additional information.

1.

From the Home screen select System Settings.

2.

From the System Settings main menu select Data Backup >Restore.

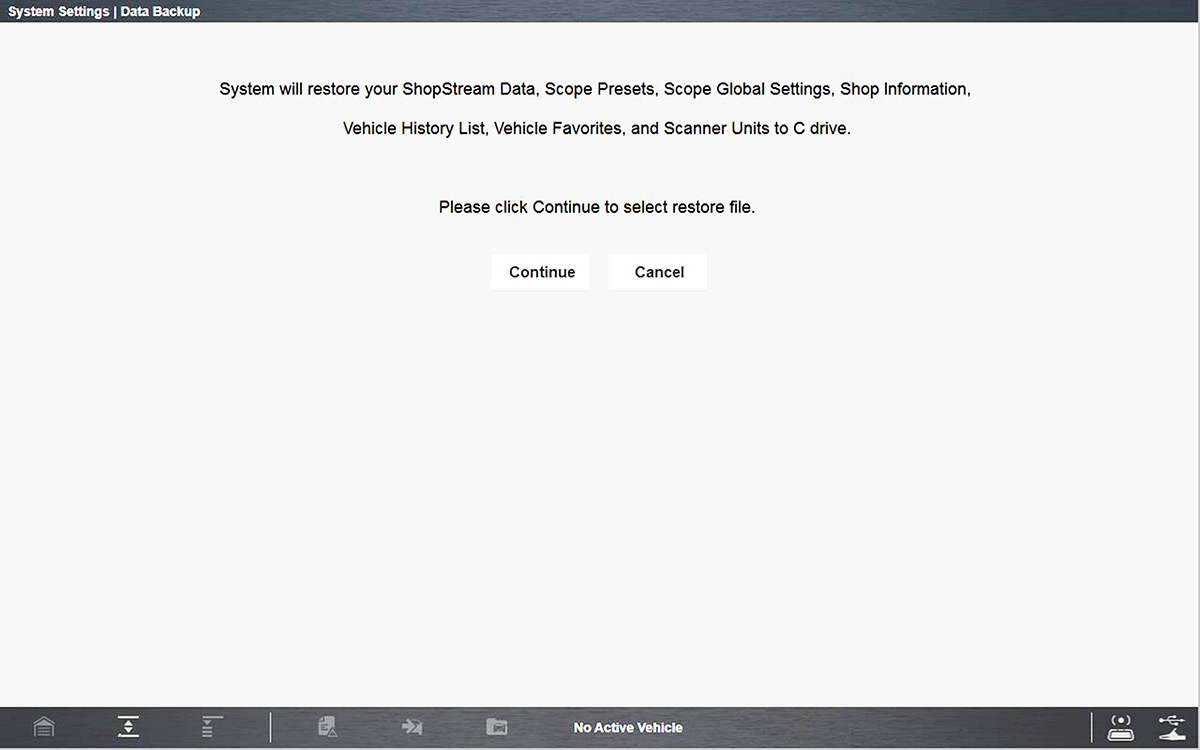

The restore file confirmation dialog box opens .

3.

Select Continue.

The Windows restore backup file path dialog box opens.

4.

Select the backup file (file extension .sna) from your backup file location.

5.

Select Open to restore the backup file.

Once the file has been restored a confirmation message is displayed.

6.

Select OK, then close and restart the Diagnostic Suite program.
