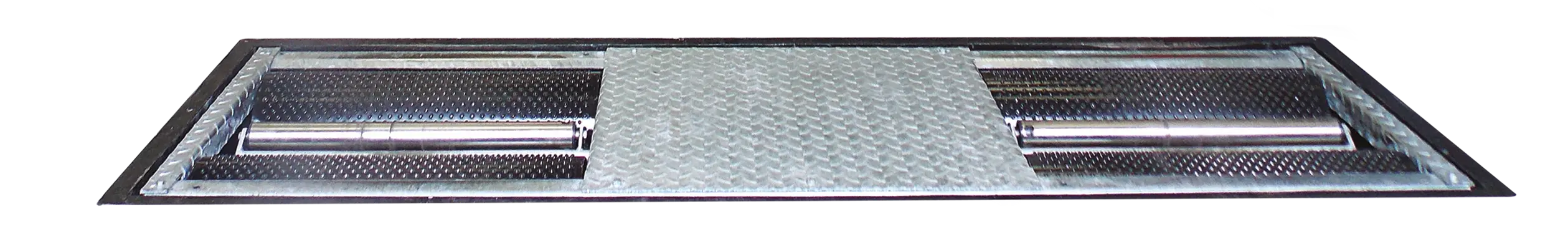

Sun Roller Brake Tester

Model: RBT

Back

Take the brakes off brake testing with the latest Sun system, which has ATL and standard MOT options plus a 10-year roller brake surface warranty.

The testers now use a solid state motor control system.

Once the brake test is completed the results can be reviewed in the following ways:

  • On the display with highlighting of any errors
  • Printed and also recording reason for failure if applicable
  • You can store the results into the database for recalling at a later date
  • Recall and review the results in a graphical format
Sun Vehicle Brake Tester From Snap-on
  • Sun Vehicle Brake Tester From Snap-on
  • Roller Brake Tester
Open AllClose All
Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Frequency50HzFuse Rating C-Type32Idle Running Speed (Class IV; Class VII)5.2kmh; 2.6kmhMain Lead Diameter5 x 4mmMaximum Axle Weight (Class IV; Class VII)4000kg; 6000kgMotor Power2 x 3.7kwOperating Temperature0°C-70°CPrinciple of MeasurementDMSProcessing of Measured ValueMicroprocessorRoller Coefficient Dry-Wet0.9-0.7/0.7-0.5Roller Diameter204mmRoller Displaced in Height25mmRoller Length (Class IV; Class VII)700mm; 1000mmVoltage3N-PE-400V
Features

The chassis are built from fully galvanised steel for long life and include roller covers as standard

close modalBuilt to last

The graphical user interface is designed for ease of use and simulates the well known meter displays from the older analogue units while including all the benefits of modern technology and the latest ATL test procedure and manual brake testing functions

close modalDesigned for ease of use

Optional Extra: Sun Brake Testers can be supplied with a 22-inch monitor, laser printer and database for saving test results

close modalOptional Extra: Monitor, printer and database

The roller brake surface includes a 10-year warranty, giving you long-term peace of mind

close modalTen-year warranty

The elimination of cables reduces the cause of trip hazards and wire damage

close modalTidier work area

  • 700mm rollers have a drive over capacity of up to 4000kg (800Kgf brake force) and can be used for MOT class I, II, III, and IV
  • 1000mm rollers have a drive over capacity up to 6000KG (1250Kgf brake force) and can be used for MOT class I, II, III, IV, VL and VII (class I and II require optional adaptor plate)

close modalTwo chassis options:

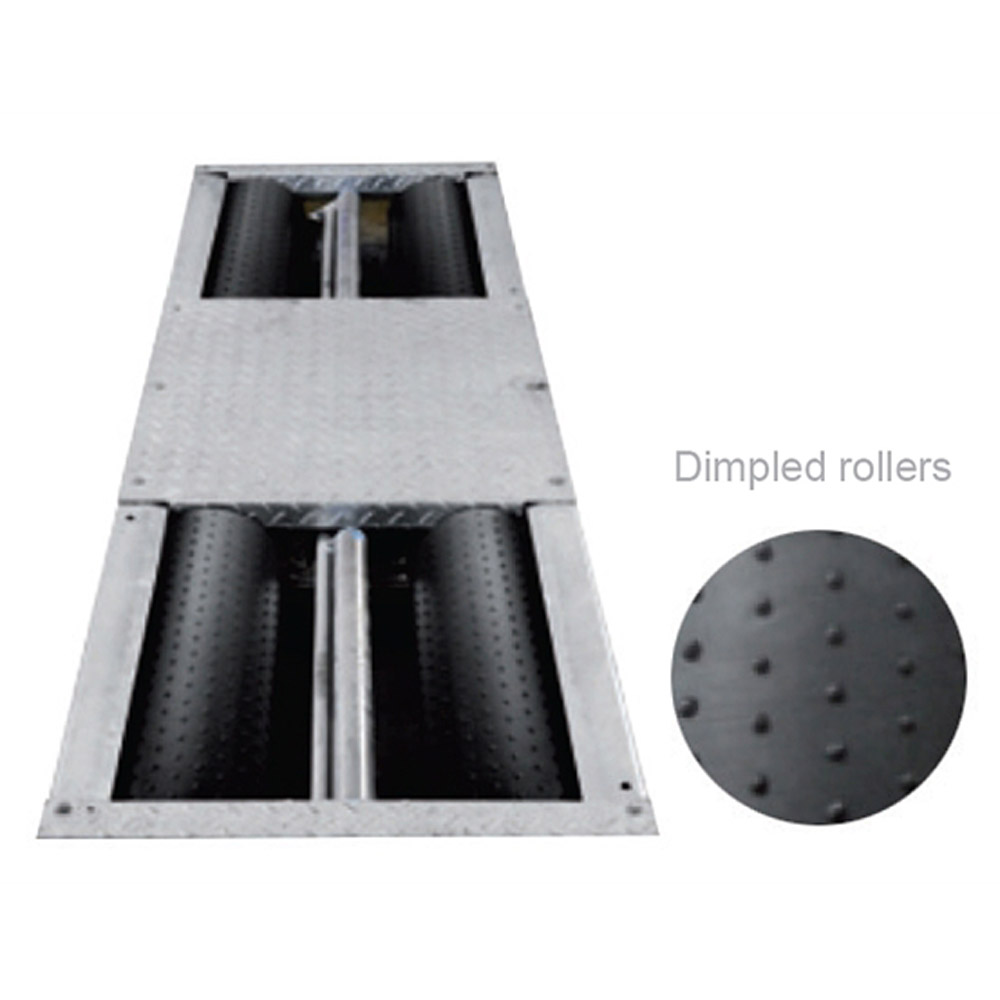

The dimpled roller surface is designed to offer protection to tyres while giving a coefficient similar to the road surface, allowing for accurate and repeatable results wet or dry

close modalUnique roller surface

The weighing system allows weighing by wheel (standard on ATL, optional on non-ATL) as well as the auto sensing 4x4 option as standard

close modalWeighing by wheel

With the wireless connectivity option between the roller chassis control box and the PC you have the flexibility to place your PC/display in the most convenient place in the workshop for testing (within the required range)

close modalWireless connectivity
