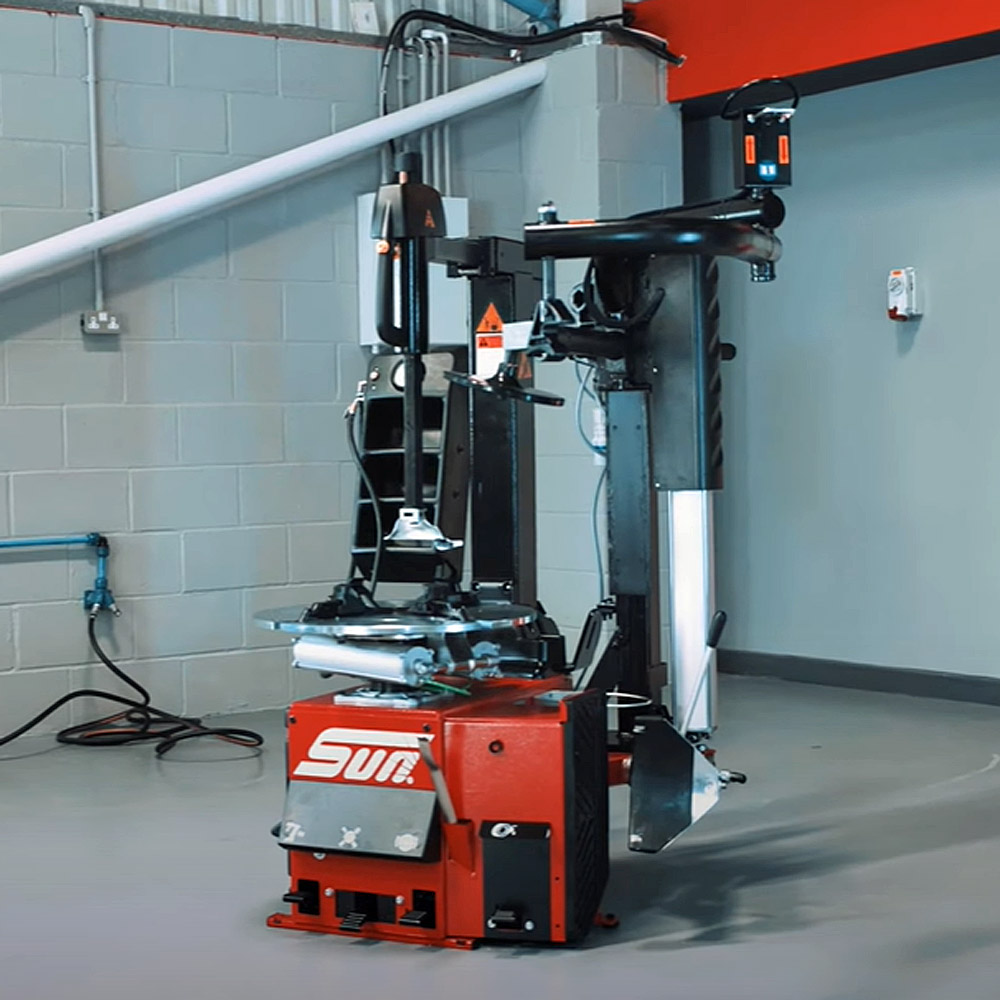

Sun STC5545 Tyre Changer

Model: EEWH119AE1

Dealing with all types of tyres, especially run-flats and ultra-high performance? The Sun STC5545 tyre changer covers your customers’ requirements and is designed for all workshop types.

It offers a high productivity speed via the built-in ProSpeed inverter technology which automatically controls the speed of the turntable dependant on the torque required when mounting/demounting the tyre, along with a large 24-inch outer clamping range.

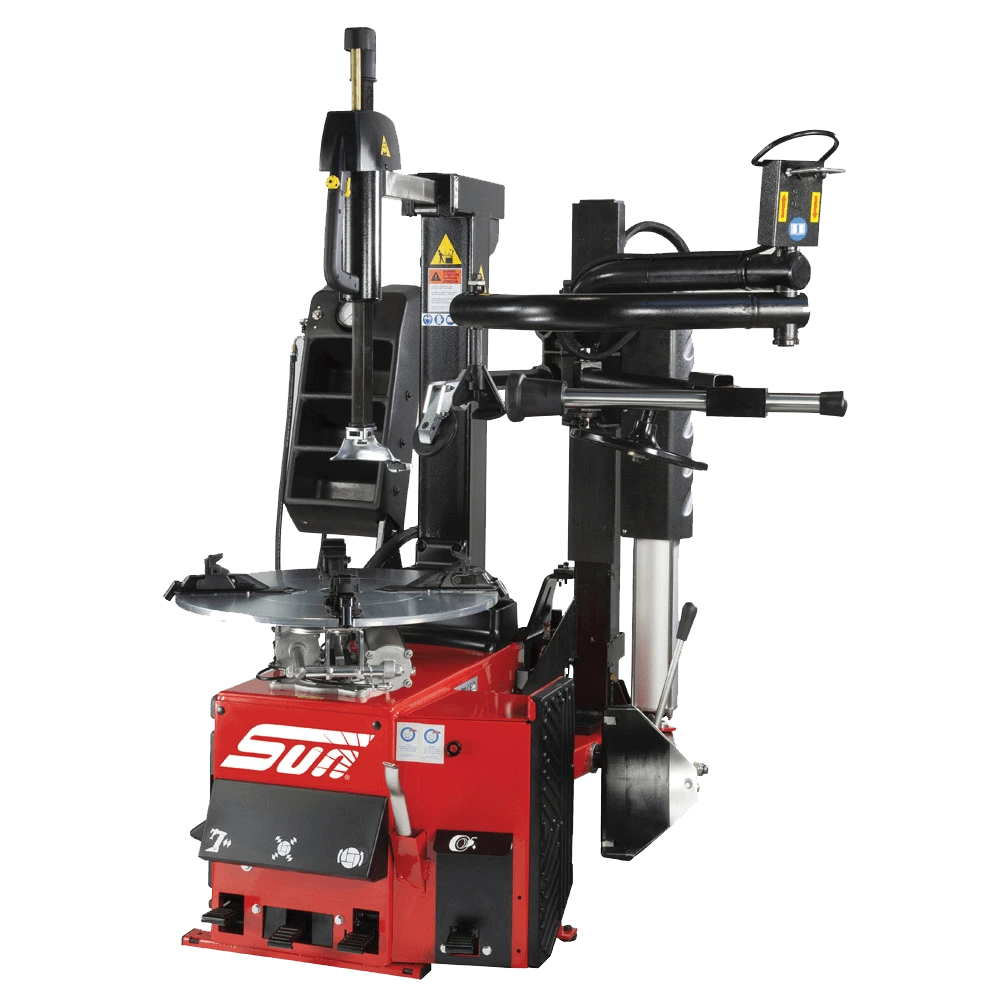

* Please note that this image is shown with the optional Plus Kit. The Plus Kit does not come as standard with the STC5545.

Sun STC5545 Tyre Changer
  • Sun STC5545 Tyre Changer
  • 5545 Tyre Changer
Open AllClose All
Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Air Supply8-12 barBead Breaker Force1200Kgf (2600lbf-ft)Bead Breaker Range1.6in-15.4inDimensions (WxDxH, mm)1300 x 1800 x 1920Maximum Rim Width15inMaximum Table Torque885lbf-ftMaximum Wheel and Tyre Diameter39.5inMotorcycle Adaptor KitOptionalNoise<70 dbaOptional Clamping Adaptors6inPlus KitOptionalRotation Speed7-18rpm controlled via PROspeedStandard Clamping Range24in
Features

The pneumatic positioning of the demount tool provides greater control and easy operation with a single button control

close modal
Pneumatic vertical positioning

This means greater flexibility and the opportunity to manage wider tyres, allowing you to service small to top-end executive cars

close modal
Low profile cabinet

The expanded contact surface improves the clamping force, providing shorter set up times and greater flexibility. In addition, plastic protectors are included for greater protection

close modal
Adjustable clamping jaws

The three position adjustment provides easier use across a broader range of wheels

close modal
Adjustable bead breaker length

The integrated tool storage provides storage spaces for tools and a tidy work area

close modal
Built-in tool storage

This means variable speed with a built in inverter that automatically selects the best speed for the operation being performed giving you a more controlled operation

close modal
ProSpeed turntable

Allows you to move the tilting column backwards easily so you are free to access the tyre

close modal
Pneumatic tilting column

This means you can cater for low-profile and run-flat tyres with ease and mount and demount tyres with the drop centre pressing tool and the rim centre pushing tool

close modal
Assist arm

Total clamping up to 30in with the optional adaptors, 24in as standard

close modal
Larger clamping range



close modal
A three-pin plug is used to control the 24V system

Available as an option

close modal
Motorcycle adaptor kit
