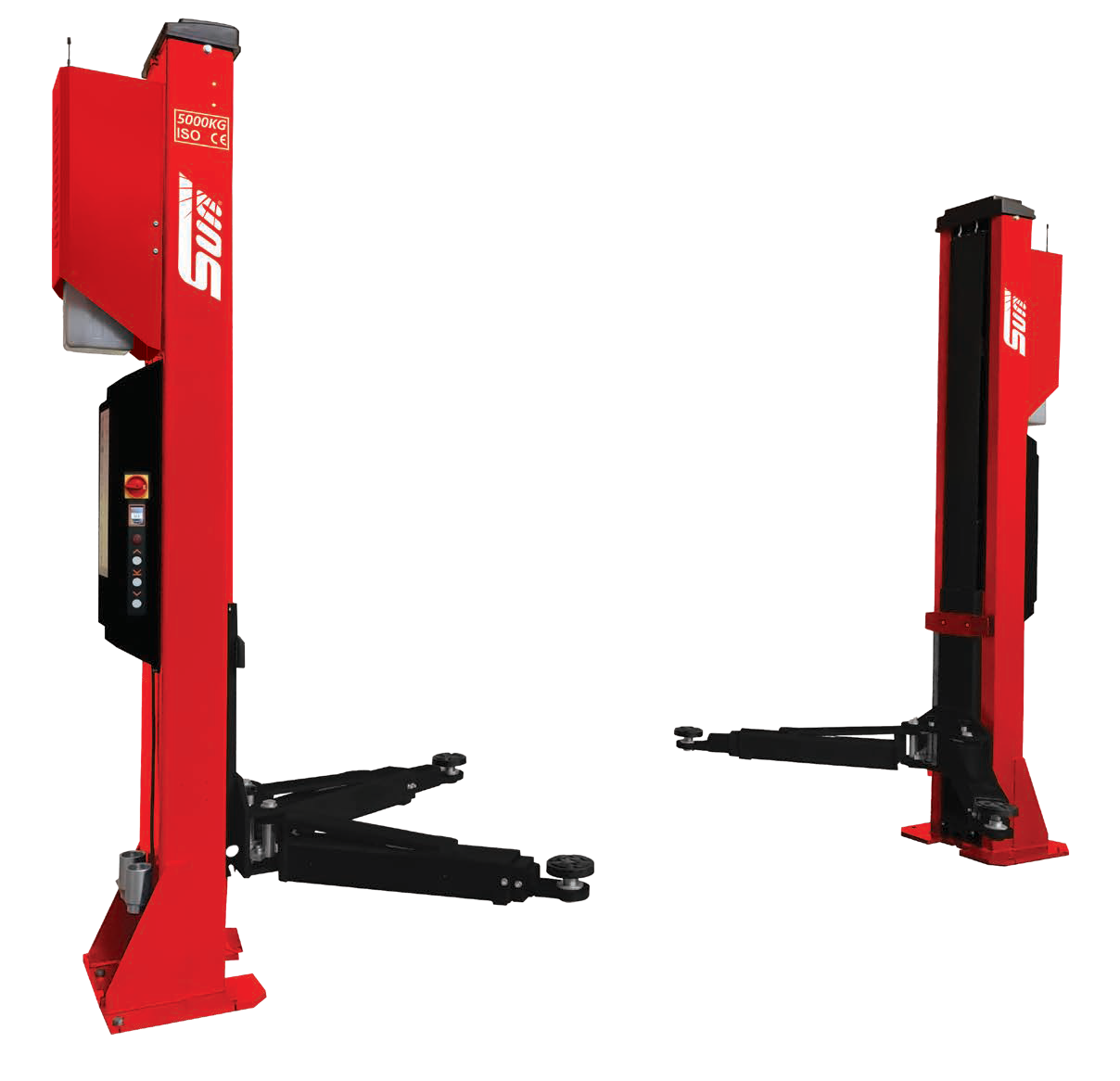

Sun SVL-D50 2-Post Dynamic Clear Floor Lift

Model: EELR196A

The SUN® SVL-D50 is a two-post lifting system with wirelessly synchronised electro-hydraulic power posts and a clear floor design, eliminating hoses and cables. This setup simplifies vehicle positioning and provides easy access to undercar components.

Suitable for a range of workshop environments, from smaller spaces to larger setups, the SVL-D50 is built to handle the demands of busy workshops, making it ideal for a wide range of servicing and repair tasks.

Open AllClose All

Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Min Foundation Depth≥250mmGross Weight1000 kgLowest Lifting Point110mmPost height (4T; 5T)2912mmDrive Through Width2970mm (2879-3070mm)Internal Width Between Posts3342mm (3242 - 3442mm)Arms900mm-1800mmMaximum Lifting Height1900mmMotor Power3.5kW x 2OperationElectro-hydraulicOverall Width (mm)4028mm (3928- 4128mm)Power Requirements400V, 3 ph, 50HzRated Capacity5000kg

Features

Provides quick and easy referencing

100mm analogue gauges

Clear floor design eliminates cables through a baseplate or top gantry, creating an open workspace that simplifies vehicle positioning, reduces trip hazards, and allows easy use of equipment like battery lifts and transmission jacks, enabling you to work more efficiently

Clear Floor Design

Dual 3-phase electro-hydraulic power posts for smooth and reliable lifting performance

Dual 3-phase electro-hydraulic

The adjustable, symmetric lifting arms, with a reach of 900mm to 1800mm, provide balanced lifting and stability for a variety of vehicles, from small passenger cars to light commercial vehicles

Lifting Arms: Adjustable, Symmetric with 900mm to 1800mm reachMax Lifting Capacity 5000kg

Safety features include safety ladder locks on both posts, single-button descent operation with a buzzer and light warning for the final descent, and an automatic shutdown if a synchronisation discrepancy is detected

Safety Features

Control panels with touchscreen displays on both power posts, wirelessly synchronised for operation from either side of the lift

Wireless Control Panels with Touchscreen Display
