Diagnostic Thermal Imager+

Model: EETH312MSRP: $2,022.00

Using infrared technology to reveal heat caused by friction, electrical resistance, pressure changes and more, the Diagnostic Thermal Imager+ from Snap-on^® lets you track down vehicle faults and find the right fix faster than ever.

When connected to Wi-Fi, every image you capture with the Diagnostic Thermal Imager+ is automatically uploaded to the new Snap-on Cloud.

This means you can access them from your phone or computer whenever you need them, to make your next diagnosis — and your next repair — faster and more accurate than your last.

Fully loaded with a database full of automotive applications, guided tests and reference images to help you interpret results, putting a more accurate diagnosis — and more productivity — in clear view on every job.

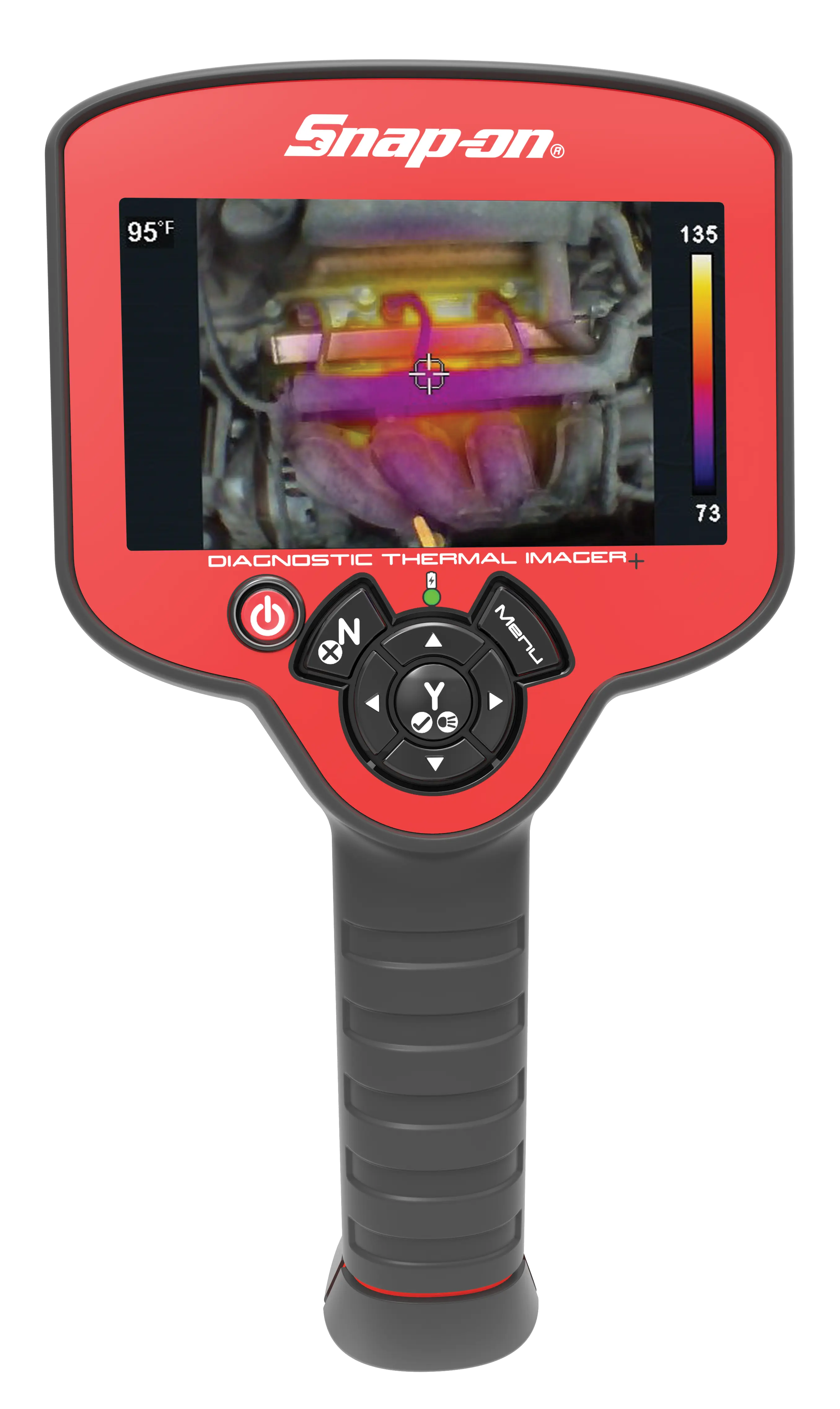

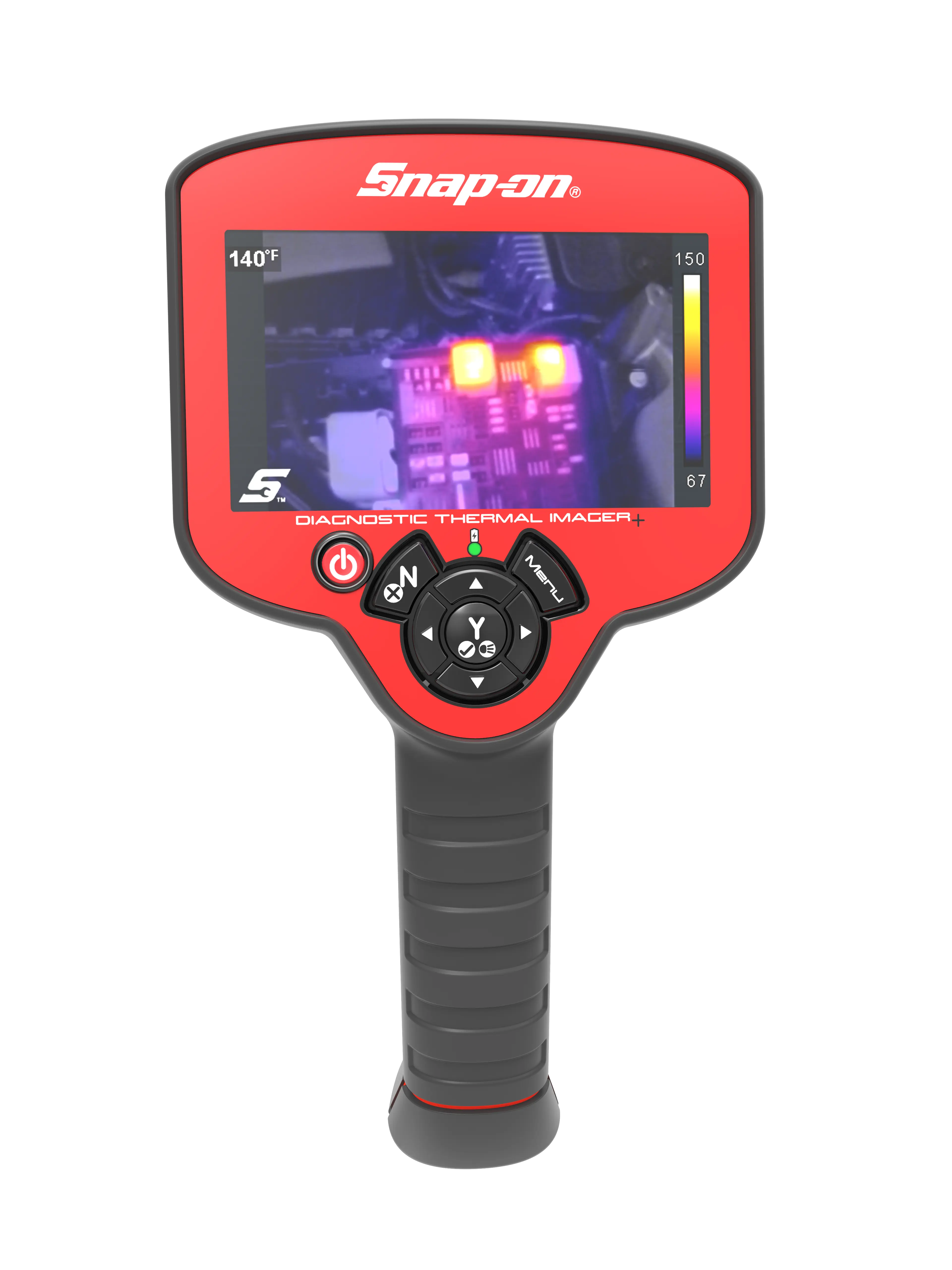

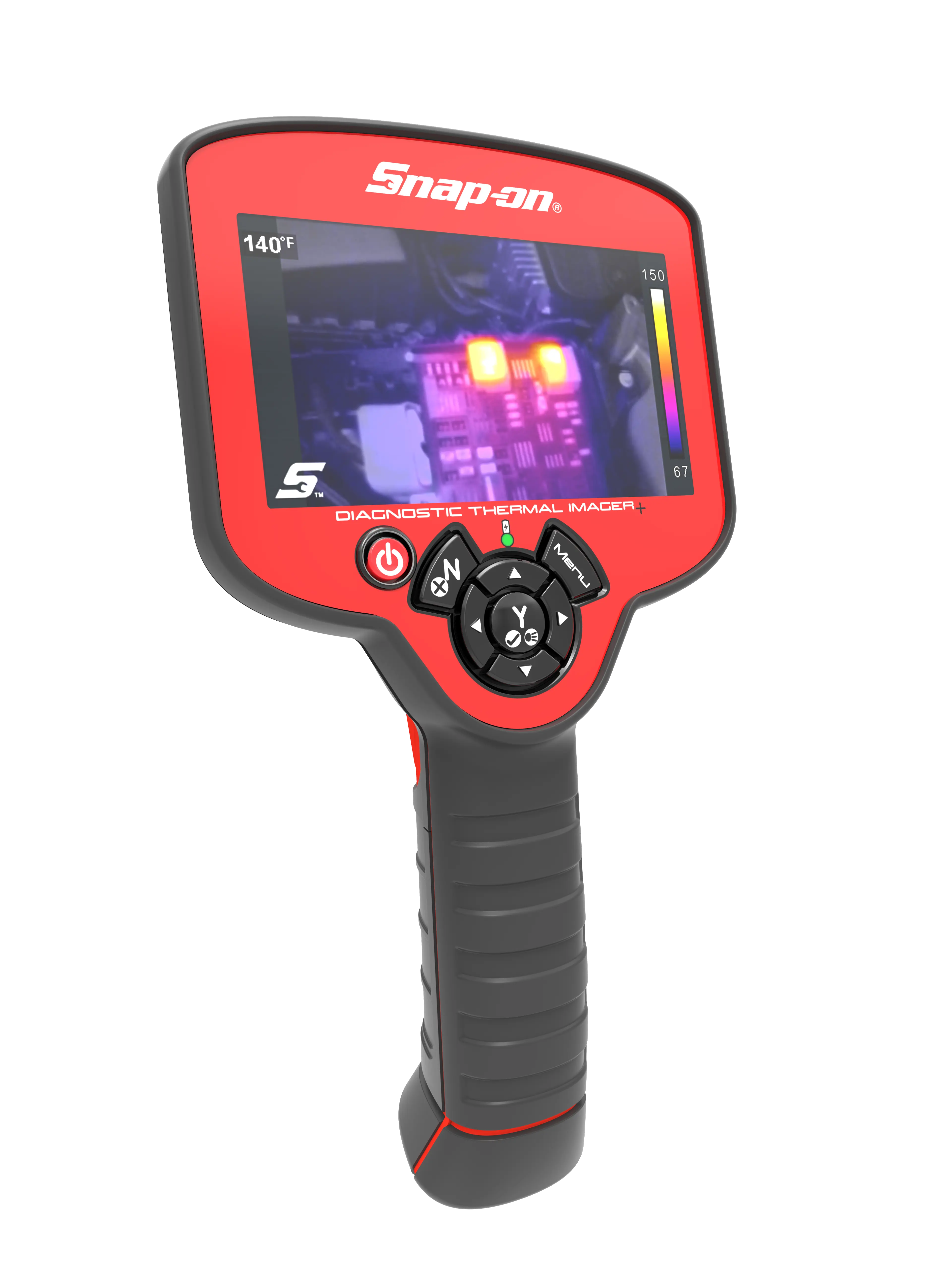

Diagnostic Thermal Imager+ Front View Snap-on

Open AllClose All

Specifications

Here are the numbers

Battery Charge Time5 hoursBattery Life4 hoursBattery Pack Size CapacitySingle Cell, 3.6V, 2150mAh MINBattery Pack TypeRechargeable lithium-ion battery packDC Operating Voltage4.75 to 5.25 VDCDimension: Height9.09 in. (231.0 mm)Dimension: Width4.80 in. (122.0 mm)Dimension: Depth2.24 in. (57.0 mm)Display Resolution365 x 270 pixelDisplay Size4.3 inch diagonalDisplay TypeTFT Color LCD Touch ScreenPower Supply5 VDC, 2AScreen refresh rate9x/secondThermal Temp. Visibility-4 to 840 degrees F (-20 to 450 degrees C)Thermal Max. Temp. Reading840 degrees F (450 degrees C)Weight0.83 lb (376.5 g)Wi-FiWi-Fi Capable

Features

Here is the good news

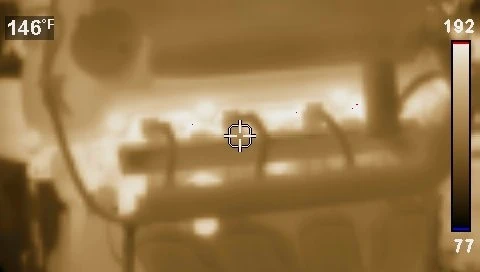

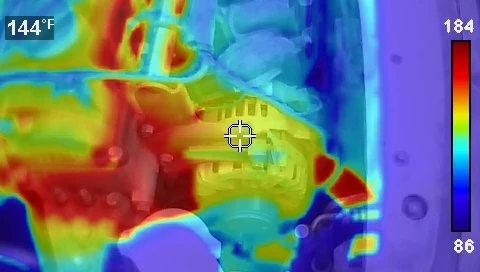

Choose between thermal, sepia and plasma color pallettes for flexible viewing options

3 Color Pallette Options

Large 4.3 inch IPS color screen so you don’t miss a clue

4.3" IPS Color Screen

Color reference scale automatically calibrates, so you know the temperature of everything in the image

Automatic Color Calibration

120 x 90 pixel thermal sensor resolution and with 2x camera zoom up to 360 x 270 pixel

Crisp 120 x 90 Thermal Sensor Resolution

Point at any area of the vehicle to see detailed images of an object's heat signature

Detailed Heat Signature Images

Exclusive database of guided tests shows dozens of valuable automotive applications

Exclusive Guided Tests

Shows extreme temperatures from -4 deg F (-20 deg C) to 840 deg F (450 deg C)

Extreme Temp Measurement Capabilities

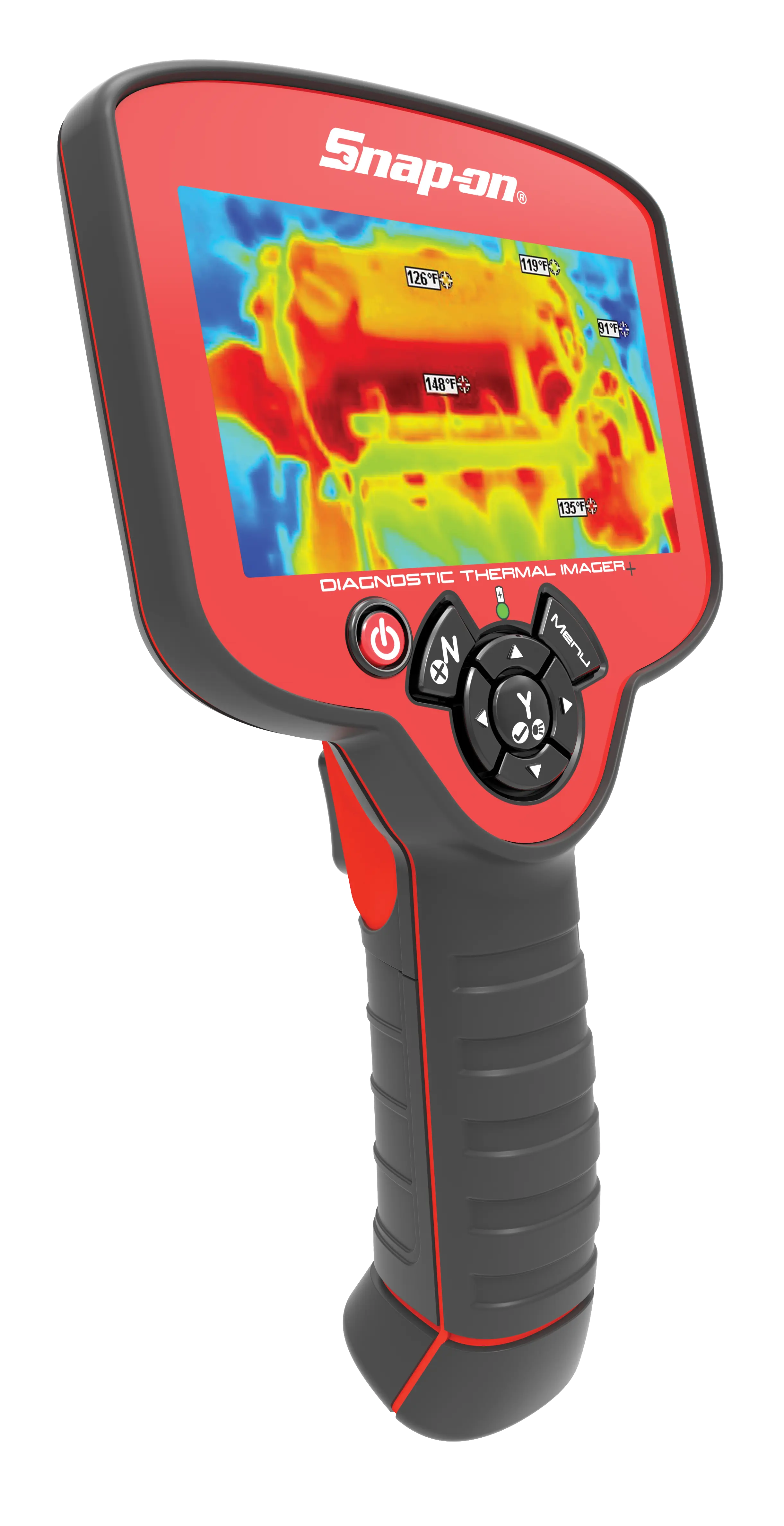

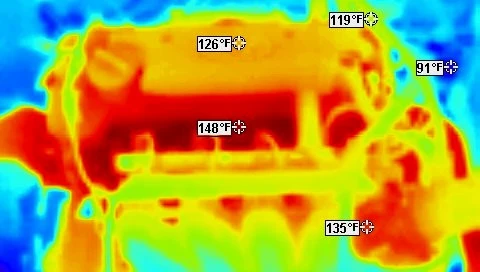

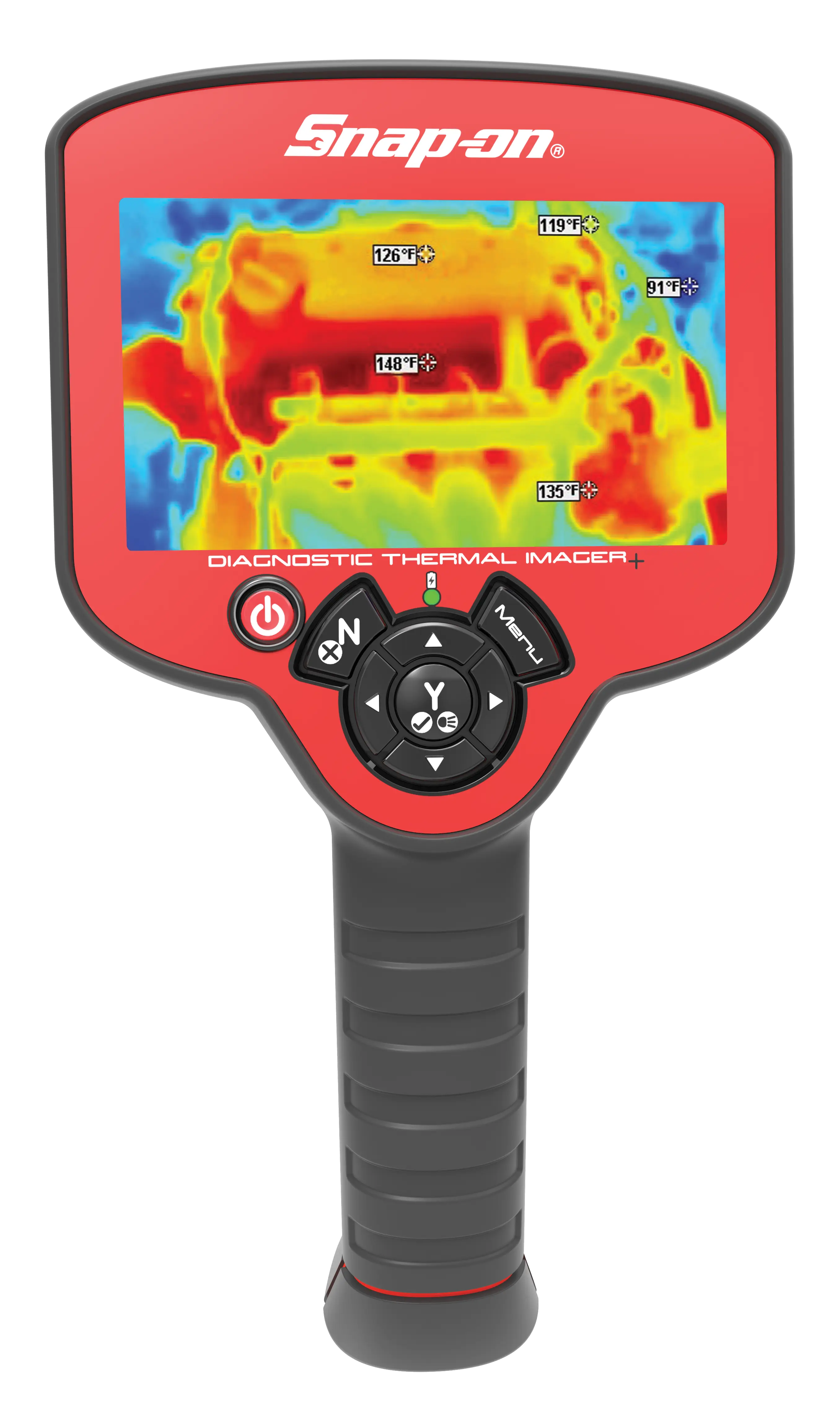

Cursors move the crosshair which enables you to take multiple still images with temperature readings from 5 different points per image

Freeze Function

Image refresh rate: 9 times per second

Image Refresh

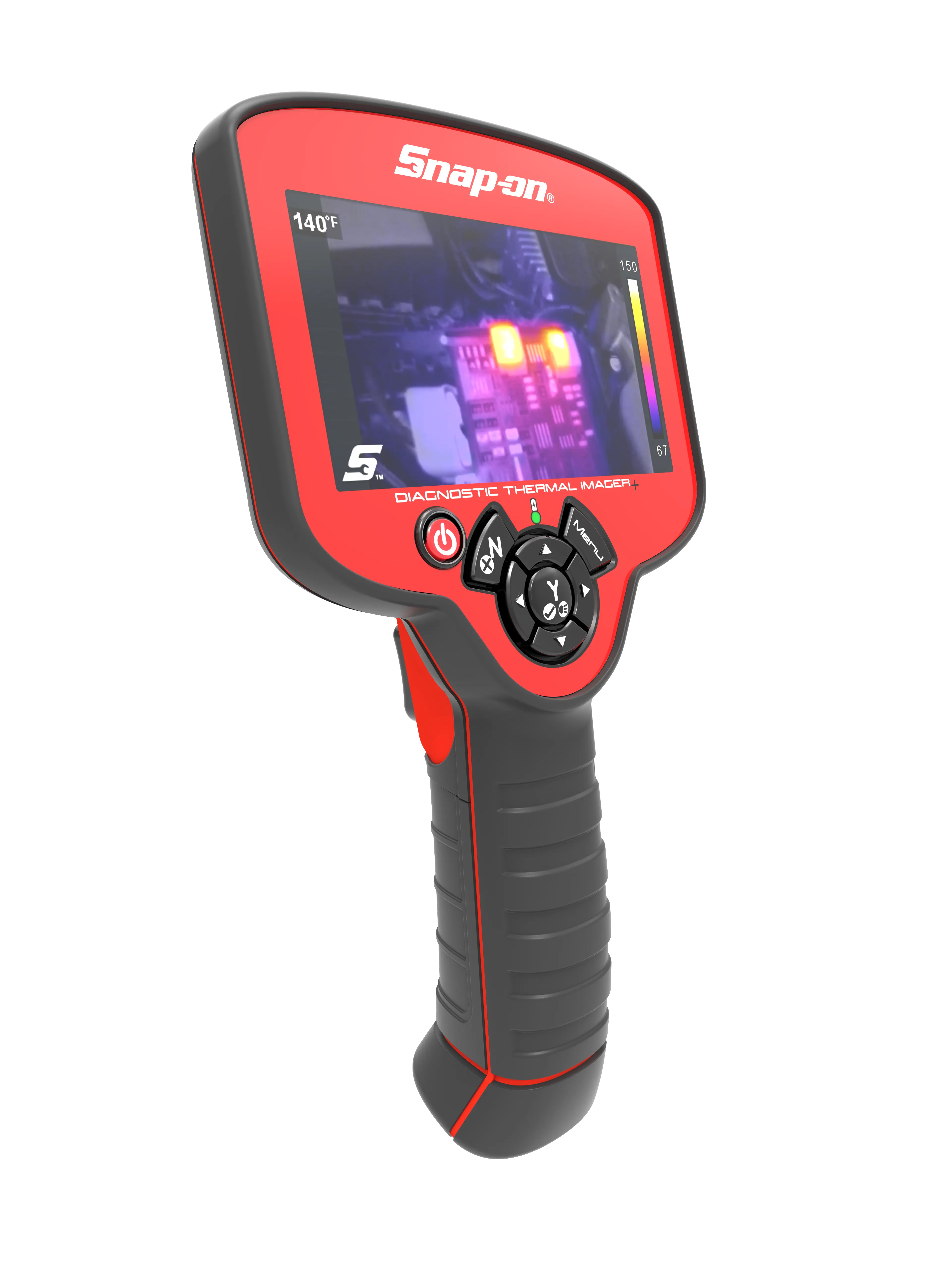

Pistol-grip ergonomics for comfort and convenient access to tight locations

Pistol-grip Ergonomics

Detect problems all around the vehicle: brakes, heated seats, misfires, HVAC, worn bearings, belts, emission controls, and many more

Problem Identification from Any Angle

Upload images to print, store and share with others

Snap-on® Cloud

Reference images showing normal components and failed components, so you know exactly what to look for

Test Reference Images

Video recording up to 20 seconds

Video Recording

Customized views on screen to assist in diagnosis and pinpointing location - choose from picture in picture, full thermal, side by side

View - Customized On-screen

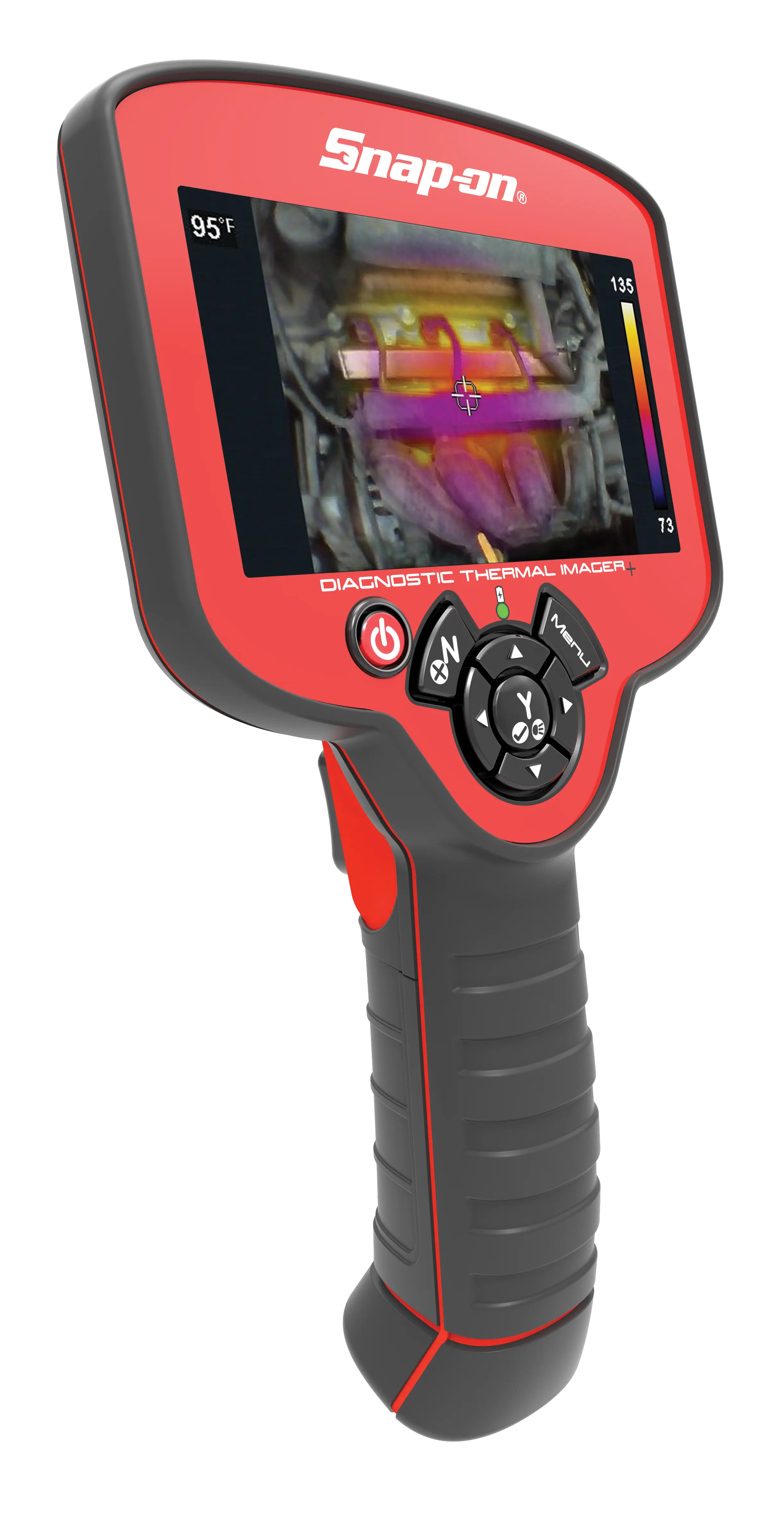

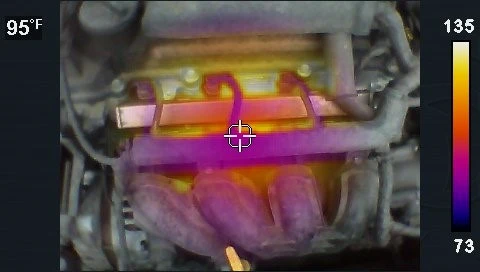

Thermal to standard image blending allows for easy identification and location of component or area being viewed

View - Image BlendingView - Picture-in-PictureView - Split ScreenView - ThermalWi-Fi enabled

Wireless Printing (via Snap-on Cloud)

Wireless Printing
