PRO-LINK+® Heavy-Duty Diagnostics

Model: EEHD754A

PRO-LINK+ brings together coverage for Class 1 through 8 trucks, and code-specific repair guidance. When diagnosing engine, transmission, or brake faults, don’t waste time wondering what to do after pulling a code.

PRO-LINK+ is designed, engineered, and supported by Snap-on, specifically for the heavy-duty repair environment.

Snap-on works directly with OEMs to ensure delivery of advanced coverage and capabilities you can trust.

Another unique time saver is the code-based information available within PRO-LINK+ for Class 4 – 8 vehicles.

Simply select the code, and a complete diagnostic path is provided.

Fault code descriptions with step-by-step routines help speed up your troubleshooting.

Open AllClose All

Specifications

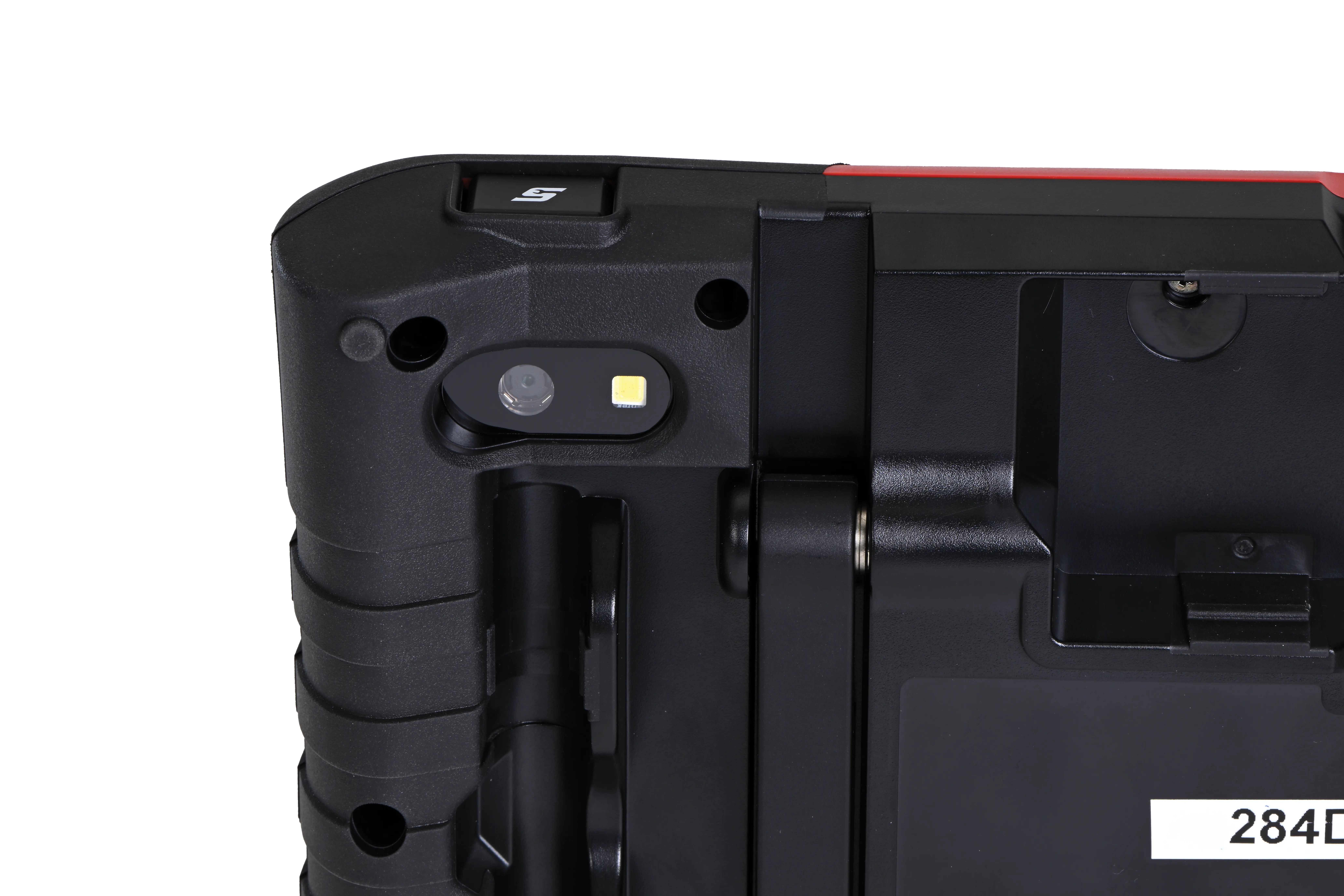

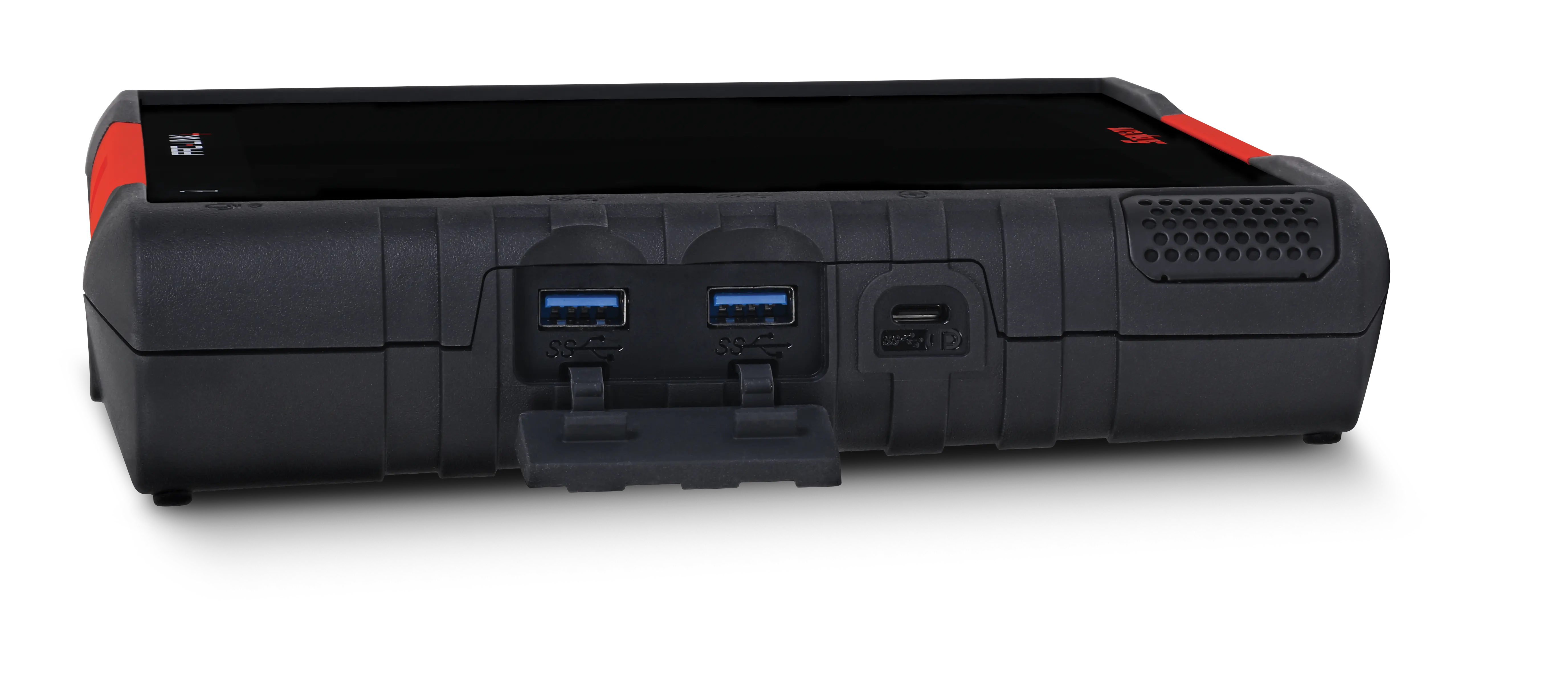

BatteryRemovable, Rechargeable, Lithium-ion batteryBoot up SpeedLess than 10 second boot up from Ready ModeBuilt-in Camera8MP (3264 x 2448)Display: Resolution1920x1080 pixelDisplay: Size11.6 inch diagonalDisplay: TypeOptically bonded touchscreen, colorDimension: Height7.8 inches (198 mm)Dimension: Width12.4 inches (315 mm)Dimension: Depth1.7 inches (43 mm)Extended Warranty Option1-3 yearsLab Scope / Meter4-channelBandwidth 3MHzSample Rate: Up to 6 million samples/secScale range 0-100mV to 0-400V, 50kV secondary ignitionSweep rate 50 microseconds to 20 seconds (5 min in GMM mode)Live Data Graphing16 graphNavigationTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating System64-bit Windows® 10Scan ModuleWirelessUSB-C PortCharging / connectivityUSB PortPC connectivityWarranty2 yearWeb BrowserChromeWeight (incl. battery without Scope/meter)4.1 lb (1.85 kg)Weight (incl. battery and Scope/meter)4.6 lb (2.00 kg)Wi-FiWi-Fi Capable

Features

Here is the good news

10.1" TouchscreenAdaptations

Reads the VIN for you

Reads the VIN for youAutomotive Coverage as far back as 1983 model yearBi-directional ControlsBoots up in <10 secondsCameraCharging SystemCode Based InformationCoverageCoverage: Medium & Heavy DutyCustom Data Lists

Data Manager Application for vehicle records

Data Manager

Ethernet/DoIP Support is built in for Jaguar, Land Rover and Volvo models with Ethernet Adapter

Ethernet SupportFreeze Frame

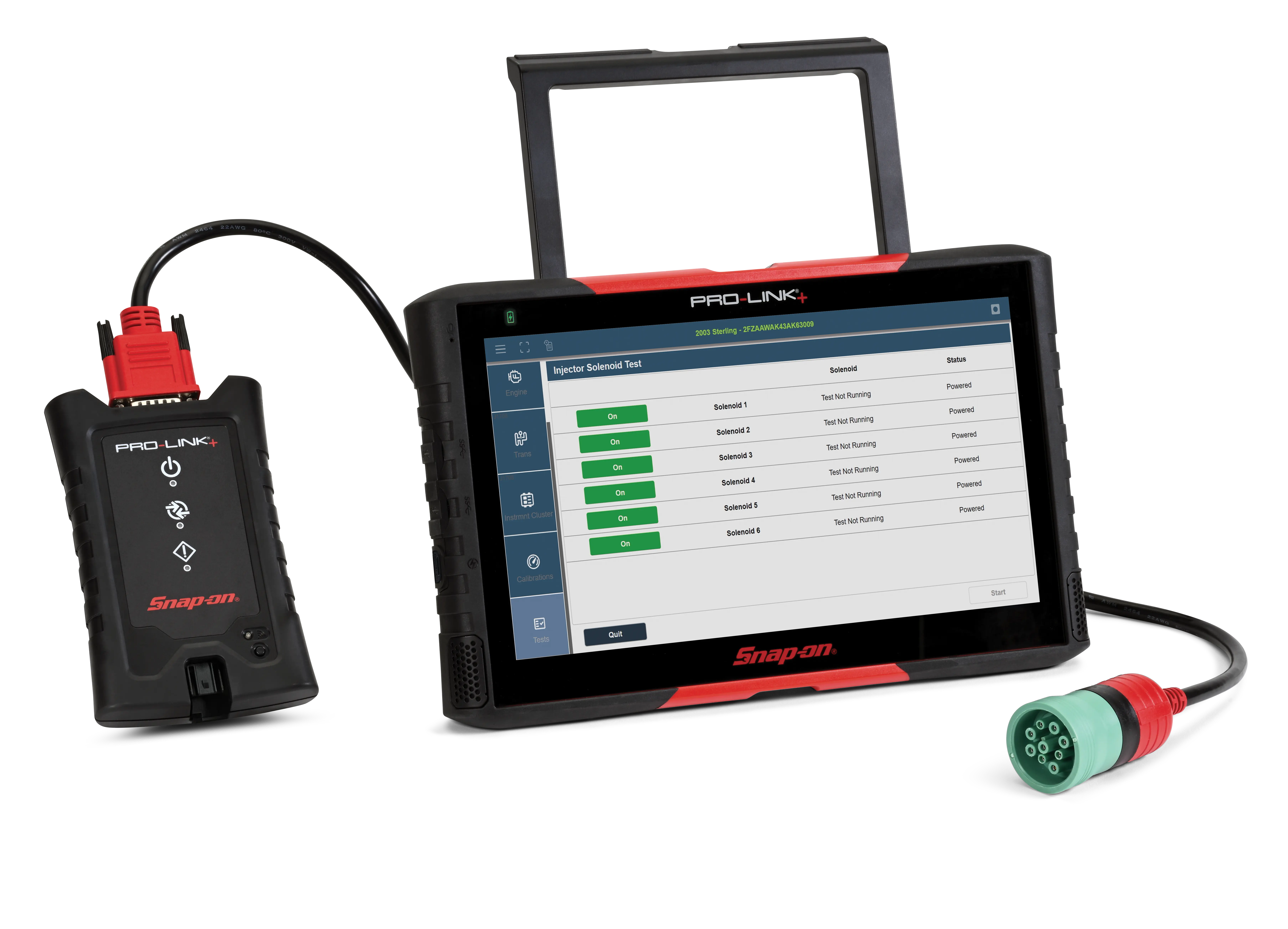

Functional Tests to verify component operation

Functional Tests

Instant Screen Shots with Hotkey

Instant Screen Shots

Ability to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.

Live Data Graphing

Over-the-air download that occurs in the background. Software installation at your convenience.

Over-The-Air Automatic Software Update

Friendly simplified language report for owners. Includes Pre-/Post-Scans for shop use.

Report: Diagnostic Health Scan

Reset Procedures to complete the repair after component replacement

Reset Procedures

Approved by OEMs to access direct from the scan tool to vehicle gateway modules. Visit www.snap-on.com/securitylink for more information.

Security Link™³

Subscription guarantees that you receive continuous coverage, access to secure gateways and SureTrack expert information, and for those devices that have it, Fast-Track® Intelligent Diagnostics is always enabled.

Software SubscriptionTouchscreen OperationTrouble Code Definitions

Shortcut key for popular functions

User-programmable function keyWeb BrowserWi-Fi enabledWi-Fi Status Icon

Direct from tool

Wireless Printing

Wireless Printing (via Snap-on Cloud)

Wireless Printing

Scalable X-axis for live data graph

Zoom
