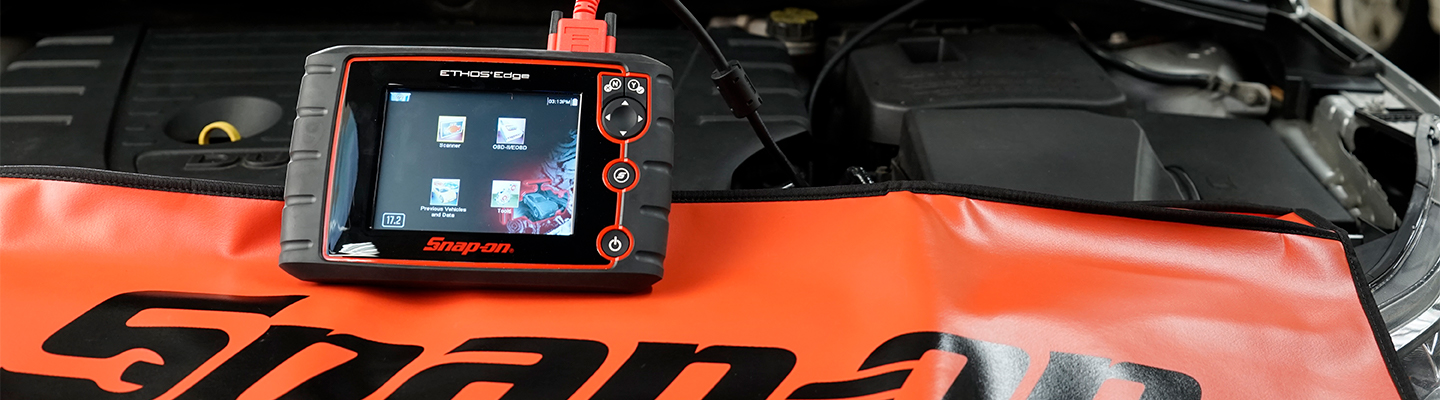

ETHOS® Edge Scan Tool

Model: EESC332MSRP: $2,770.00

You were born ready to be the best tech you can be, so you need a full-function scan tool that’s ready whenever you are.

Having the ETHOS® Edge in your corner means you’re ready to take on any vehicle in the bay, all day and every day.

You get OEM-specific codes and data coverage for domestic, Asian and European vehicles, including powerful bi-directional controls to verify diagnosis and repairs.

This work is your calling; ETHOS Edge can help you build your reputation.

EMBRACE YOUR FUTURE.

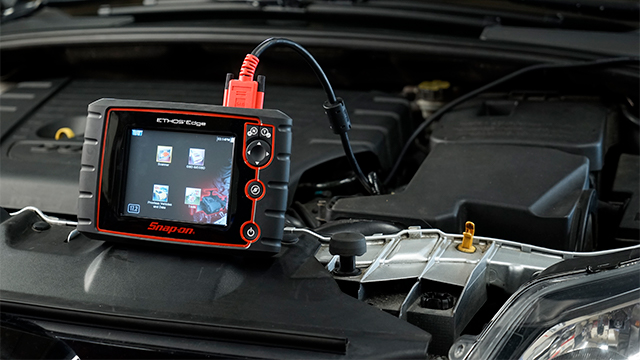

ETHOS Edge Overview
  • ETHOS Edge Overview

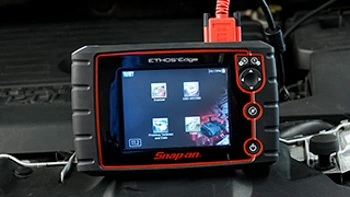

  • ETHOS Edge

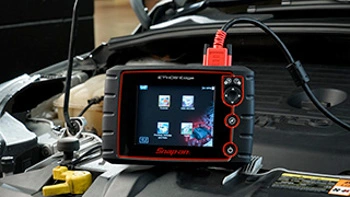

  • ETHOS Edge
  • ETHOS Edge with Tech
Open AllClose All
Specifications

Here are the numbers

BatteryRemovable, Rechargeable, Lithium-ion batteryBattery Voltage7.4 voltsBoot up SpeedLess than 10 second boot upDepth1.75 inches (44.5 mm)Display: Resolution640x480 pixelDisplay: Size5 inchDisplay: TypeResistive, daylight-readable LCD touchscreen, colorExtended Warranty Option1-3 yearsDimension: Height5.67 inches (144 mm)Live Data GraphingSelective display of 1, 2 or 4 graphsNavigation4-way keypadTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded SMX®Scan ModuleIntegratedUSB PortPC connectivityVehicle Coverage12 European automotive makes16 Asian automotive makes21 domestic automotive makesVehicle Systems100+ OEM-specific vehicle systemsWarranty1 yearWeight (incl. battery)2.15 pounds (975 g)Dimension: Width8.9 inches (226 mm)Wi-FiWi-Fi Capable
What Is It used For

How can ETHOS Edge help you?

Measures fluid capacities

close modal
Fluid Capacities

Resets vehicle maintenance indicator

close modal
Maintenance Resets

Reads tire pressure monitoring system

close modal
TPMS
Software

DIAGNOSTIC SOFTWARE IS THE POWER INSIDE YOUR SCAN TOOL

From electric cars to autonomous vehicles to new vehicle security requirements, automotive technology changes just about every day. The only way to stay on top of it all is with uninterrupted access to an array of tips and techniques, tests, guided resources, and graphing capabilities from a constantly updated universe of vehicle data resources — exactly what Snap-on® diagnostic software delivers.

No matter which Snap-on diagnostic platform you choose, keeping its software up to date is the only way to make sure you can always get the most out of it and handle the problems that come your way.

New Coverage Highlights2024 Code Scan & Clear - All Makes

Chevrolet®, Genesis®, GMC®, Hyundai®, Infiniti®, Kia®, Land Rover®, Lexus®, Mazda®, Mitsubishi®, Nissan®, Subaru®, Tesla®, Toyota® and Volvo®

close modal
2024 Model Year Update

- 2007-2014 A3 Transmission and Airbag
- 2014-2020 A3 Airbag, Battery Energy Control Module and Drive
- 2009-2017 A4 Drive Motor Control
- 2011-2019 A6 Park Assist and Drive Motor Control
- 2019+ A6 Brake Booster Module, DC/DC Converter and Drive Motor Control Module

close modal
Audi® A3, A4 and A6

2008-2014 X6 New Systems
- Servotronic
- Valvetronic 1
- Valvetronic 2
2009-2010 X6 Hybrid New Systems
- Integrated Chassis Management
- Vertical Dynamics Module
- Damper Satellite Modules x 4

Guided Component Tests 2021-2023 330e and 330 xDrive 2.0L Hybrid Engine 2020-2021 X3 M40i, 3.0L Engine 2022-2023 X3 M40i, 3.0L Hybrid, Engine 2020-2021 X3 M, 3.0L Engine 2020 X5 sDrive 40i and X5 xDrive 40i, 3.0L Engine 2020-2023 X5 M50i 4.4L Engine. 2021-2023 X5 xDrive 45e 3.0L Hybrid Engine

close modal
BMW® X6 and X6 Hybrid

2023+ Hornet Special Functions:
- Anti-lock Brake Control Module
- Assembly Check
- Brake Discs Substitution
- Brake Pads Substitution
- Caliper Substitution
- Check Air Presence in ABS Unit
- Maintenance Mode Electric Park Brake ENTER (Set to Active)
- Maintenance Mode Electric Park Brake EXIT (Set to Not Active)
- Occupant Classification System
- Clear Historical Data Record
- Re-zero Occupant Classification System
- Instrument Cluster Module
- Last Service Date
- Reset Service Information

close modal
Dodge® Hornet Special Functions

2023+ F-Series Super Duty
- New Engines – 5.2L Raptor, 6.8L, 7.3L and 6.7L
- Body Control Module – 39 New Variants!
2020+ F-150 Special Functions
- Anti-lock Brake System
- Engine
- Low Pressure Fuel System Test
- Occupant Classification Module
- Passenger System Reset
- Automatic Headlamp Levelling System
- Calibration
More Programmable Module Installation (PMI)
- 2011-2017 Mustang Power Steering Control Module
- 2010-2018 Focus Restraint Control Module
2021+ Bronco Special Functions
- Power Steering Control Module Resets
- Electronic Power Assist Steering Communication Error
- Electronic Power Assist Steering Internal Failure
- Electronic Power Assist Steering Invalid or Missing
- Electronic Power Assist Steering Signal Error
- Electronic Power Assist Steering Voltage Error
- Engine
- Low Pressure Fuel System Test
- Occupant Classification Module
- Passenger System Reset

close modal
Ford® PMI, Tests, Special Functions

2021+ Pan America
2022+ Sportster S
2022+ Nightster
2023+ CVO

close modal
Harley-Davidson® Added Models

2016-2022 CR-V Engine, Power Steering Control Module, Intelligent Cruise Control Module Actuator Tests and Special Functions
2016-2021 Clarity Intelligent Cruise Control Module Actuator Tests and Special Functions
2015-2020 Civic Intelligent Cruise Control Module Actuator Tests and Special Functions
2019+ Passport Engine Actuator Tests and Special Functions

close modal
Honda® Actuator Tests & Special Functions

2010 - 2015 XF Active Damping Control Module codes and data, actuator tests and special functions
2013 - 2015 XF Chassis Control Module codes and data, actuator tests and special functions

close modal
Jaguar® XF Coverage Updates

Towbar codes, data, functional tests and special functions

close modal
Land Rover 2015+ Discovery Sport

Chassis Control Module Special functions
2013-2016 Range Rover
2014-2016 Range Rover Sport
Speed Control Module
2014+ Discovery Sport
2015+ Range Rover Evoque
2015+ Discovery Sport Towbar: Codes, data, functional tests and special functions

close modal
Land Rover® Coverage Updates
New Model! 2024 Alfa Romeo® Tonale

Models S, X, Y and 3
2012-2020 Model S
2016-2020 Model X
2023 and earlier Models S, X, 3 and Y
Onboard function instructions to find Alert Codes, and how to unlock Gateway and enable/disable Service Mode

close modal
Tesla® - New Make!

Occupant Classification System calibration

close modal
Toyota 2017+ Camry

2018+ Crafter Transmission
2010-2014 Touareg Anti-lock Brake Control Module

close modal
Volkswagen® System Coverage Updates

Codes, data, actuator tests and resets

close modal
Ford 2014 - 2020 Transit Dosage Module

Special functions

close modal
Ford 2021+ E-Series Transmission

Cruise Control Module Radar Dynamic Calibration

close modal
Ford® 2015 – 2020 F350®
New Features and Enhancements

Visit snapon.com/securitylink for details

close modal
More makes for more access via Security Link™

Product training available in English and French

close modal
Multilingual Product Training Support

Toggle between English and 7 different languages, including French and Spanish

close modal
New Snap-on® Cloud multilingual support
Software Options

Offers 6 months of current domestic, Asian and European coverage

close modal
Basic Upgrade

Continuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track® Intelligent Diagnostics-enabled products receive complete data services for one year

close modal
Subscription
Features

Here is the good news

Adjustable Graph ScaleAutomotive Coverage as far back as 1983 model yearBi-directional ControlsBoot-up 5-seconds

Plug and play feature automatically powers up when connected to vehicle

close modal
Boot-up Automatic with Vehicle Connection
Charging SystemCode Scan ReportCoverage - 48 makes as far back to 1983Cursor Functions

High-capacity microSD™ card contains the diagnostic software and stores your data files

close modal
Data File Storage
Embedded Operating System

Ethernet/DoIP Support is built in for Jaguar, Land Rover and Volvo models with Ethernet Adapter

close modal
Ethernet Support
Full range of component test functionalityFunctional Tests

Ability to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.

close modal
Live Data Graphing
Motorcycle CoverageMotorcycle Coverage: Harley-Davidson, BMW, Victory, Indian, Ducati, Yamaha, Honda, Kawasaki and Suzuki

Touchscreen or 4-way keypad

close modal
Navigation Options

One-Touch Full Vehicle Code Scan & Clear quickly checks and clears codes for all available modules on the vehicle.

close modal
One-Touch Code Scan and Clear
Online Software Updates

Records All PIDS While On or Off Screen

close modal
PID Recording
PID SortingPID Trigger (a Snap-on exclusive)Reset Procedures

Access direct from the scan tool to the FCA vehicle gateway module for 2018 and newer models

Easy set-up process by any device with Wi-Fi and browser

Turnkey access to vehicles directly from the scan tool

close modal
Security Link™³

Save, print, and share files with free PC-based ShopStream Connect software

close modal
ShopStream Connect™
Software Status Icon

Subscription guarantees that you receive continuous coverage, access to secure gateways and SureTrack expert information, and for those devices that have it, Fast-Track® Intelligent Diagnostics is always enabled.

close modal
Software Subscription
Thin and light designTrouble Code Definitions

Shortcut key for popular functions

close modal
User-programmable function key
Wi-Fi enabledWi-Fi Status Icon

Scalable X-axis for live data graph

close modal
Zoom
Resource Center
Look here for the ETHOS Edge User Manual, other helpful documents and Training
