MODIS Edge™ Integrated Diagnostic System

Model: EEMS341

With powerhouse speed and performance, the MODIS Edge offers legacy reliability with the newest Edge features.

A combo scanner and scope/graphing meter with exclusive SureTrack® Expert Information, it is slim, light, fast and strong.

Booting in 5 seconds and sporting a big 8-inch display, find new Instant ID and quick links to common procedures to get you right down to business.

Exclusive Guided Component Tests show how to test, where to connect and what to look for to eliminate guesswork.

A new Vehicle System Report offers Global OBD-II Code and Readiness Monitor results for available systems delivering convincing estimates for greater customer confidence.

MODIS Edge Overview
  • MODIS Edge Overview
  • MODIS Edge

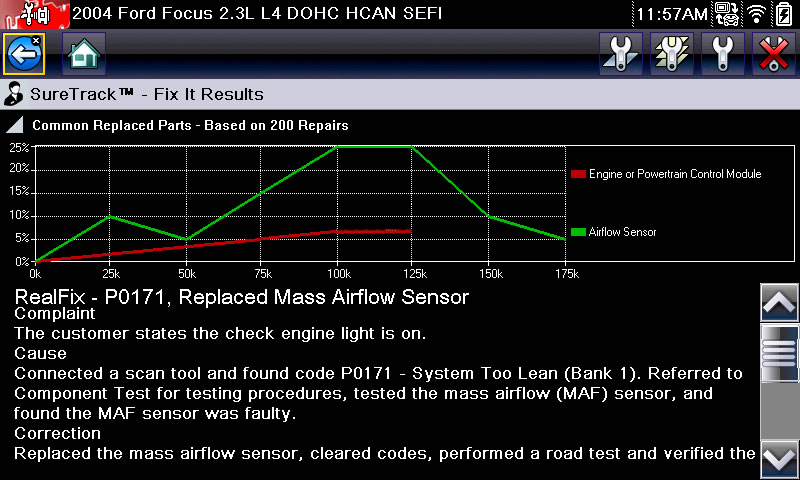

  • SureTrack Mass Airflow Sensor

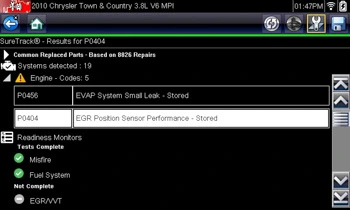

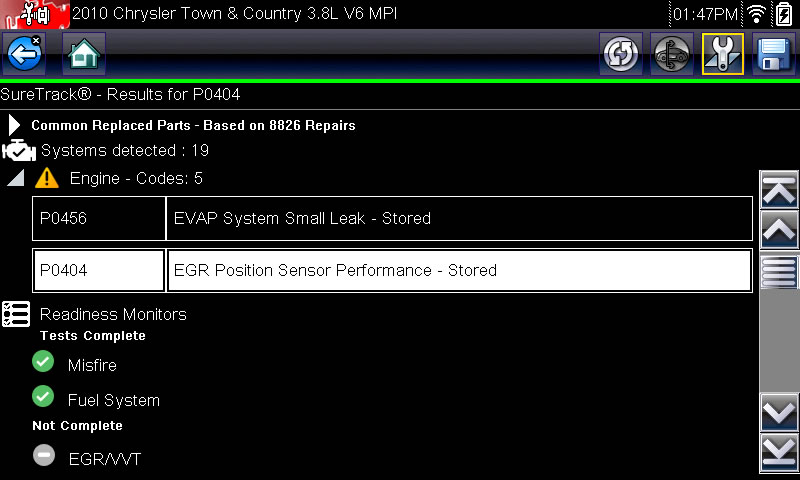

  • Code Scan VSR

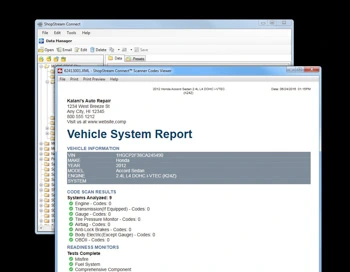

  • SSC

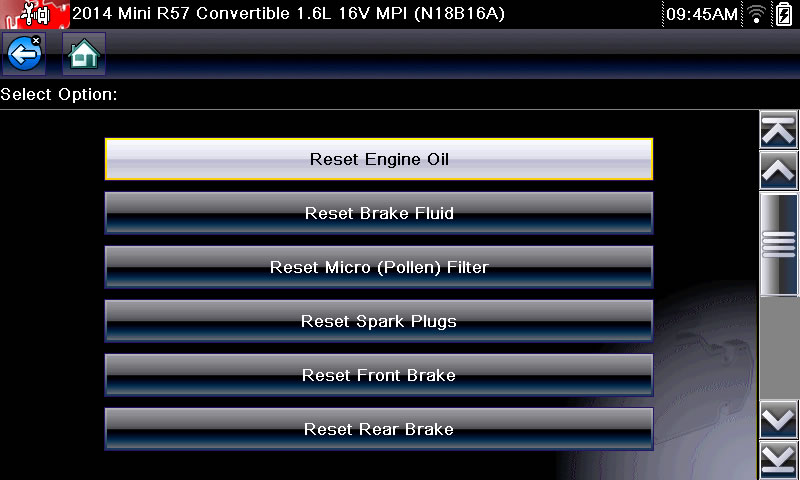

  • Service Reset
Open AllClose All
Specifications
BatteryRemovable, Rechargeable, Lithium-ion batteryBattery Voltage7.2 voltsBoot up SpeedLess than 10 second boot upDimension: Depth1.6 inches (40.3 mm)Display: Resolution800x480 pixelDisplay: Size8 inchDisplay: TypeResistive, daylight-readable LCD touchscreen, colorExtended Warranty Option1-3 yearsDimension: Height6.3 inches (160 mm)Lab Scope / Meter2-channelBandwidth 3MHzSample Rate: Up to 6 million samples/secScale range 0-100mV to 0-400VSweep rate 1 second to 5 minutesSweep rate 50 microseconds to 20 seconds (5 min in GMM mode)Live Data GraphingSelective display of 1, 2 or 4 graphsNavigation4-way keypadTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded SMX®Scan ModuleIntegratedUSB PortPC connectivityVehicle Coverage12 European automotive makes16 Asian automotive makes21 domestic automotive makesVehicle Systems100+ OEM-specific vehicle systemsWarranty1 yearWeight (incl. battery)2.6 pounds (1.18 kg)Dimension: Width11.1 inches (281 mm)Wi-FiWi-Fi Capable
Software

DIAGNOSTIC SOFTWARE IS THE POWER INSIDE YOUR SCAN TOOL

From electric cars to autonomous vehicles to new vehicle security requirements, automotive technology changes just about every day. The only way to stay on top of it all is with uninterrupted access to an array of tips and techniques, tests, guided resources, and graphing capabilities from a constantly updated universe of vehicle data resources — exactly what Snap-on® diagnostic software delivers.

No matter which Snap-on diagnostic platform you choose, keeping its software up to date is the only way to make sure you can always get the most out of it and handle the problems that come your way.

New Coverage Highlights2024 Code Scan & Clear - All Makes

Chevrolet®, Genesis®, GMC®, Hyundai®, Infiniti®, Kia®, Land Rover®, Lexus®, Mazda®, Mitsubishi®, Nissan®, Subaru®, Tesla®, Toyota® and Volvo®

close modal
2024 Model Year Update

- 2007-2014 A3 Transmission and Airbag
- 2014-2020 A3 Airbag, Battery Energy Control Module and Drive
- 2009-2017 A4 Drive Motor Control
- 2011-2019 A6 Park Assist and Drive Motor Control
- 2019+ A6 Brake Booster Module, DC/DC Converter and Drive Motor Control Module

close modal
Audi® A3, A4 and A6

2008-2014 X6 New Systems
- Servotronic
- Valvetronic 1
- Valvetronic 2
2009-2010 X6 Hybrid New Systems
- Integrated Chassis Management
- Vertical Dynamics Module
- Damper Satellite Modules x 4

Guided Component Tests 2021-2023 330e and 330 xDrive 2.0L Hybrid Engine 2020-2021 X3 M40i, 3.0L Engine 2022-2023 X3 M40i, 3.0L Hybrid, Engine 2020-2021 X3 M, 3.0L Engine 2020 X5 sDrive 40i and X5 xDrive 40i, 3.0L Engine 2020-2023 X5 M50i 4.4L Engine. 2021-2023 X5 xDrive 45e 3.0L Hybrid Engine

close modal
BMW® X6 and X6 Hybrid

2023 Colorado Engine
2021-2023 Express/Savanna 2500, 3500 6.6 L L8T Gas Engine
2022-2023 Silverado Increased Coverage for Transmissions 6, 8 and 10-Speed
2023 Silverado 1500 3.0L LZ0 Diesel
2021 and 2023 Camaro 3.6 LGX Engine
2021 Camaro 2.0 LTG
2021 Trailblazer 1.3 L3T
2023 Equinox 1.5 LSD Gas Engine

close modal
Chevrolet® Guided Component Tests

Guided Component Tests
2023 Colorado Engine
2021-2023 Express/Savanna 2500, 3500 6.6 L L8T Gas Engine
2022-2023 Silverado Increased Coverage for Transmissions 6, 8 and 10-Speed
2023 Silverado 1500 3.0L LZ0 Diesel
2021 and 2023 Camaro 3.6 LGX Engine
2021 Camaro 2.0 LTG
2021 Trailblazer 1.3 L3T
2023 Equinox 1.5 LSD Gas Engine


close modal
Chrysler® Engine and Transmission

2023+ Hornet Special Functions:
- Anti-lock Brake Control Module
- Assembly Check
- Brake Discs Substitution
- Brake Pads Substitution
- Caliper Substitution
- Check Air Presence in ABS Unit
- Maintenance Mode Electric Park Brake ENTER (Set to Active)
- Maintenance Mode Electric Park Brake EXIT (Set to Not Active)
- Occupant Classification System
- Clear Historical Data Record
- Re-zero Occupant Classification System
- Instrument Cluster Module
- Last Service Date
- Reset Service Information

Guided Component Tests
2023 Charger 6.2 Engine
2023 Durango 6.2L Engine
2023 Hornet Engine, ABS, Transmission, Body Electrical, Starting System, Charging System, HVAC

close modal
Dodge® Hornet, Charger, Durango

2023+ F-Series Super Duty
- New Engines – 5.2L Raptor, 6.8L, 7.3L and 6.7L
- Body Control Module – 39 New Variants!
2020+ F-150 Special Functions
- Anti-lock Brake System
- Engine
- Low Pressure Fuel System Test
- Occupant Classification Module
- Passenger System Reset
- Automatic Headlamp Levelling System
- Calibration
More Programmable Module Installation (PMI)
- 2011-2017 Mustang Power Steering Control Module
- 2010-2018 Focus Restraint Control Module
2021+ Bronco Special Functions
- Power Steering Control Module Resets
- Electronic Power Assist Steering Communication Error
- Electronic Power Assist Steering Internal Failure
- Electronic Power Assist Steering Invalid or Missing
- Electronic Power Assist Steering Signal Error
- Electronic Power Assist Steering Voltage Error
- Engine
- Low Pressure Fuel System Test
- Occupant Classification Module
- Passenger System Reset

Guided Component Tests
2021 F-150 3.0 Diesel Engine and 2023 F-150 2.7L, 3.5L, 5.0 Engine
2023 F-250, F-350, F-450, F-550 7.3 Engine and 6.7 Diesel Engine
2022 E-350 and E-450 7.3 Engine
2023 F-250SD, F-350SD 6.8 Engine
2022 Bronco 2.3, 2.7L Engine and Bronco Sport 1.5L, 2.0 Engine
2023 Edge 2.0 Engine
2020-2023 Escape 2.0 and 2.5 Engine
2023 Escape 1.5 Engine
2023 Expedition 3.5 Engine
2020-2022 Explorer, Explorer Limited, Explorer Platinum 3.3 Engine
2022-2023 Explorer 3.0 Engine
2023 Explorer 2.3L, 3.3 Engine
2022 Maverick 2.5 Engine
2022-2023 Maverick 2.0 Engine
2022 Mustang EcoBoost and EcoBoost Premium 2.3 Engine
2020 Mustang 2.3L, 5.0L and 5.2L Engine
2020-2022 Mustang GT and GT Premium 5.0L Engine
2021-2022 Mustang Mach1 5.0 Engine
2021-2023 Mustang 5.2 Engine and 2023 Mustang 5.0 Engine
2020-2023 Police Interceptor Base 3.3 Engine
2022 Ranger 2.3 Engine
2020 Transit Connect 2.0 Gas and Flex Fuel Engine
2020-2022 Transit 150, 250, 350, 3.7 Engine

close modal
Ford® PMI, Special Functions, Guided Component Tests

Guided Component Tests
2023 Canyon 2.7L L3B Engine
2021-2023 Savanna 2500, 3500 6.6 L L8T Gas Engine
2022-2023 Sierra 6-, 8- and 10-Speed Transmission
2023 Sierra 1500 5.3L L84 Gas/Ethanol Engine

close modal
GMC® Canyon, Savanna, Sierra

2021+ Pan America
2022+ Sportster S
2022+ Nightster
2023+ CVO

close modal
Harley-Davidson® Added Models

2016-2022 CR-V Engine, Power Steering Control Module, Intelligent Cruise Control Module Actuator Tests and Special Functions
2016-2021 Clarity Intelligent Cruise Control Module Actuator Tests and Special Functions
2015-2020 Civic Intelligent Cruise Control Module Actuator Tests and Special Functions
2019+ Passport Engine Actuator Tests and Special Functions

close modal
Honda® Actuator Tests & Special Functions

2023 Oil Level Sensor
2021-2023 Active Purge Pump, Active Purge Pump Pressure Sensor
2022-2023 Active Exhaust Solenoid

Plus new Location Images for 2006 Tiburon

close modal
Hyundai® Guided Component Tests

2010 - 2015 XF Active Damping Control Module codes and data, actuator tests and special functions
2013 - 2015 XF Chassis Control Module codes and data, actuator tests and special functions

close modal
Jaguar® XF Coverage Updates

Guided Component Tests
2023 Compass 2.0L Engine and 8F30 Transmission
2023 Cherokee 2.4L Engine

close modal
Jeep® Compass and Cherokee

1.6L and 2.0L
- 2023 Oil Level Sensor
- 2021-2023 Active Purge Pump, Active Purge Pump Pressure Sensor
- 2021-2023 Fuel Tank Differential Pressure Sensor

Plus New Location Images
2017-2020 Sorrento
2022 Carnival
1995-2002 Sportage

close modal
Kia® 2021-2023 K5 Guided Component Tests

Chassis Control Module Special functions
2013-2016 Range Rover
2014-2016 Range Rover Sport
Speed Control Module
2014+ Discovery Sport
2015+ Range Rover Evoque
2015+ Discovery Sport Towbar: Codes, data, functional tests and special functions

close modal
Land Rover® Coverage Updates

2022 NX250
2023 NX450+
2023 NX350 T24A-FTS New Model and Engine
2023 RX500H T24A-FTS New Model and Engine

close modal
Lexus® New Models for Guided Component Tests

Guided Component Tests

2001-2006 Tribute Engine 2.3/3.0 EGR system
2020-2022 CX5 ADAS System
2020-2021 CX3 ADAS
2021-2022 CX-5 New Signature 2.2 Diesel Engine
2020-2021 CX30 2.5 ADAS
2022 CX30 2.5 Engine
2023 CX30 2.5 Engine
2023 CX5 2.5 Engine
2023 CX50 2.5 Engine

close modal
Mazda® Engine and ADAS

Guided Component Tests
2021-2023 GLE63 S AMG 4.0L Hybrid Engine
2020-2022 E350 2.0L and GLC300 2.0L
2020 GLC350e 2.0L Hybrid Engine
2020-2021 GLC63 S AMG 4.0L Engine and 2020-2021 GLC63 AMG 4.0L Engine
2020-2023 GLE53 AMG 3.0L Hybrid Engine
Cam Adjustment Valve tests for select 4.0L engines

close modal
Mercedes-Benz® Engine
New Model! 2024 Alfa Romeo® Tonale

Guided Component Tests
2023 Altima 2.0L & 2.5L ABS, Engine and Transmission
2023 Frontier 3.8L ABS and Engine
2023 Murano 3.5L Engine
2022 - 2023 Pathfinder 3.5L-Engine and Transmission
2020 - 2023 Sentra (all models) 2.0L-ABS and Engine
2016 - 2019 Titan 5.0L Diesel ABS, Engine and Transmission (NEW)
2020-2023 Titan 5.6L ABS and Engine
2021 Versa 1.6L Engine

close modal
Nissan® ABS, Engine and Transmission

Guided Component Tests
2022-2023 BRZ and WRX 2.4L ABS, Engine and Transmission
2022 Crosstrek Hybrid 2.0L Hybrid Electronics
2023 Crosstrek and Impreza 2.0L ABS, Engine and Transmission
2023 Ascent, Legacy and Outback 2.4L ABS, Engine and Transmission
2023 Crosstrek, Forester, Legacy and Outback 2.5L ABS, Engine and Transmission

close modal
Subaru® ABS, Engine and Transmission

Models S, X, Y and 3
2012-2020 Model S
2016-2020 Model X
2023 and earlier Models S, X, 3 and Y
Onboard function instructions to find Alert Codes, and how to unlock Gateway and enable/disable Service Mode

Guided Component Tests
2023 and older Model S and X ABS
- ABS Module
- Brake Fluid Level Switch
- Brake Pedal Switch
- Electric Brake Booster
- Electronic Parking Brake Actuator
- iBooster Pedal Sensor
- Wheel Speed Sensor

close modal
Tesla® - New Make!

Occupant Classification System calibration

close modal
Toyota 2017+ Camry

2022 Corolla Cross Clutch Travel Sensor
2023 Highlander T24A-FTS Engine
2023 Prius M20A-FXS E
2023 Prius Prime M20A-FXS Engine

close modal
Toyota® Guided Component Tests

2018+ Crafter Transmission
2010-2014 Touareg Anti-lock Brake Control Module

close modal
Volkswagen® System Coverage Updates

Codes, data, actuator tests and resets

close modal
Ford 2014 - 2020 Transit Dosage Module

Special functions

close modal
Ford 2021+ E-Series Transmission

Cruise Control Module Radar Dynamic Calibration

close modal
Ford® 2015 – 2020 F350®

Towbar codes, data, functional tests and special functions

close modal
Land Rover 2015+ Discovery Sport
New Features and Enhancements

Visit snapon.com/securitylink for details

close modal
More makes for more access via Security Link™

Product training available in English and French

close modal
Multilingual Product Training Support

Toggle between English and 7 different languages, including French and Spanish

close modal
New Snap-on® Cloud multilingual support

Simultaneously select multiple files to download or delete.

close modal
Easier and faster file use within Snap-on Cloud
Software Options

Offers 6 months of current domestic, Asian and European coverage

close modal
Basic Upgrade

Continuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track® Intelligent Diagnostics-enabled products receive complete data services for one year

close modal
Subscription
Resource Center
Look here for the MODIS Edge User Manual, other helpful documents and Training
