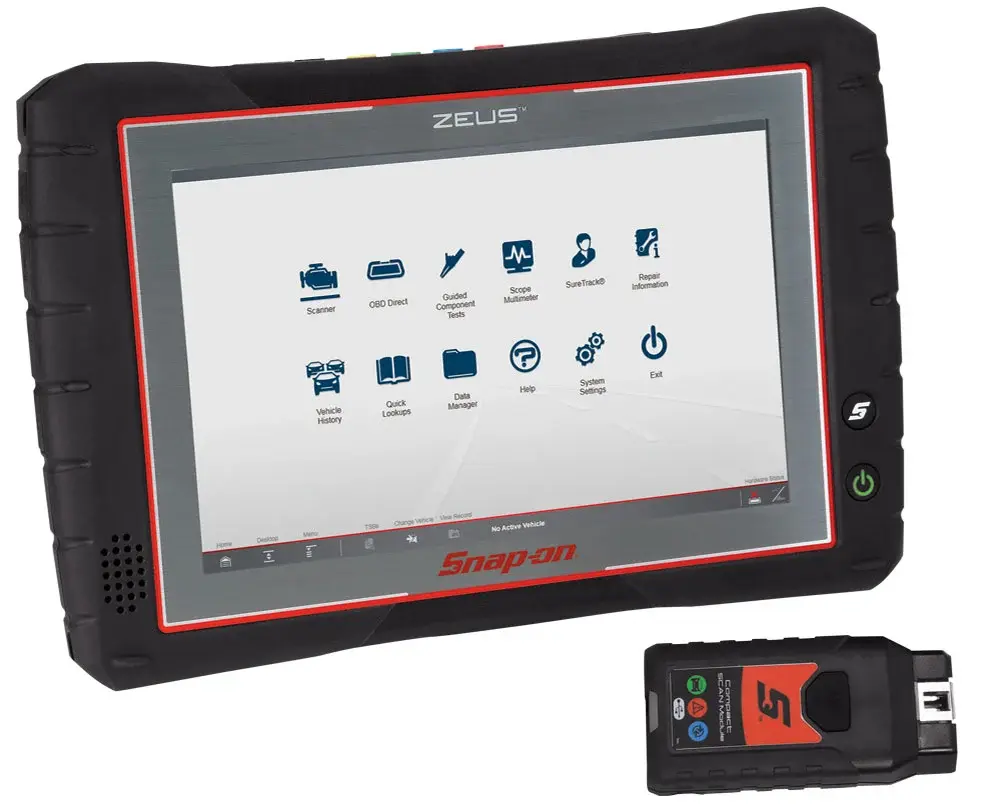

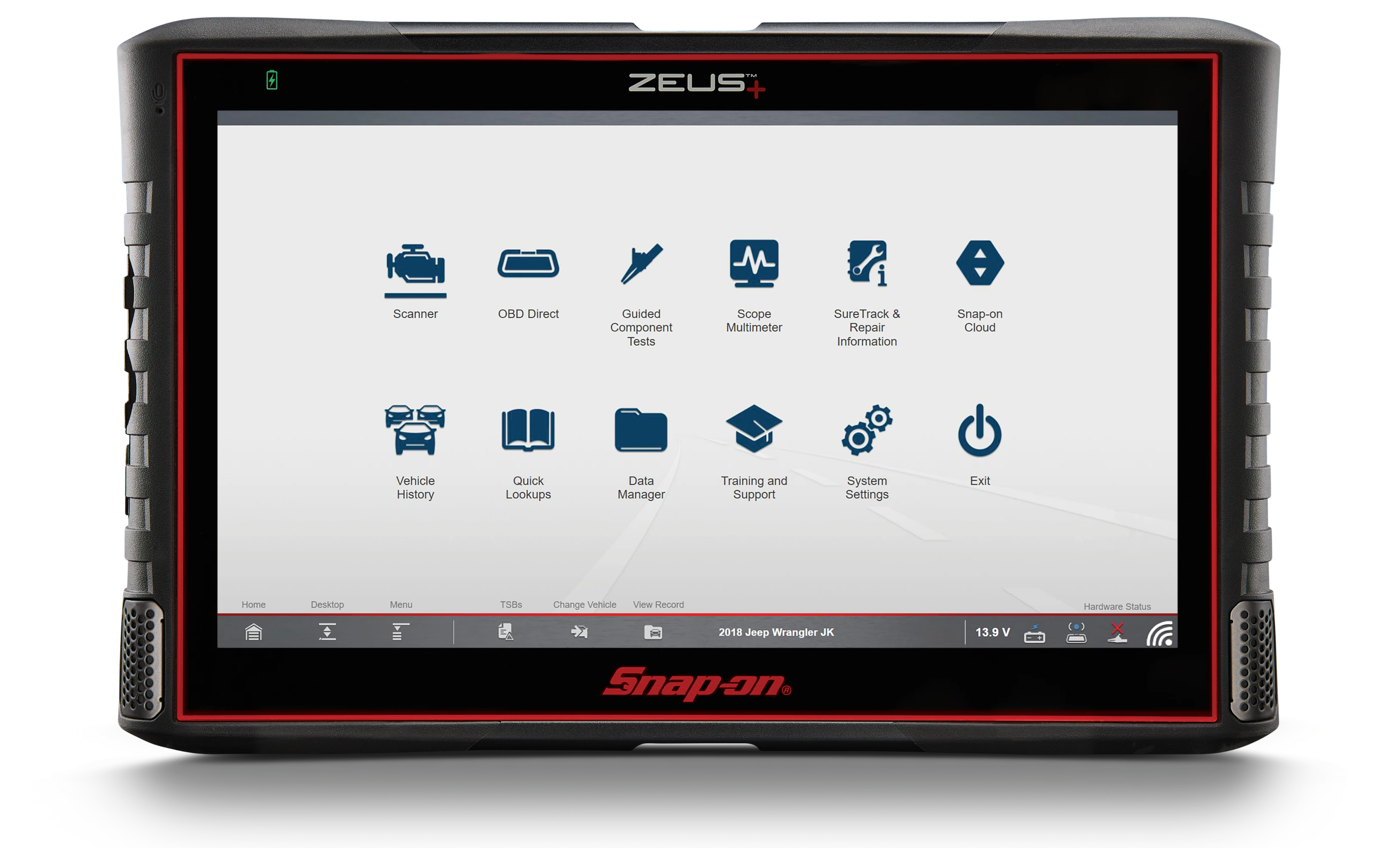

ZEUS® Car Diagnostic Tool & Information System

Fast-Track® Intelligent Diagnostics Available*

Model: EEMS342

Featuring Snap-on^® Fast-Track^® Intelligent Diagnostics software, ZEUS provides all the functions and repair tips you need to diagnose, repair and manage any issue.

But unlike any tool before, it practically anticipates your next move by guiding you through every step you need to find the solution, while avoiding the steps you don’t.

It displays only the information that’s relevant to the specific vehicle and fault code.

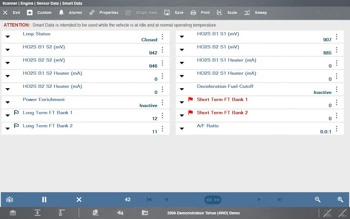

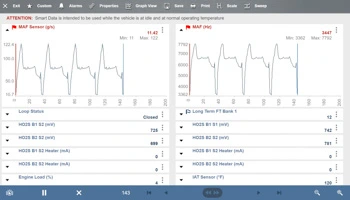

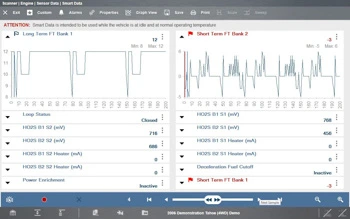

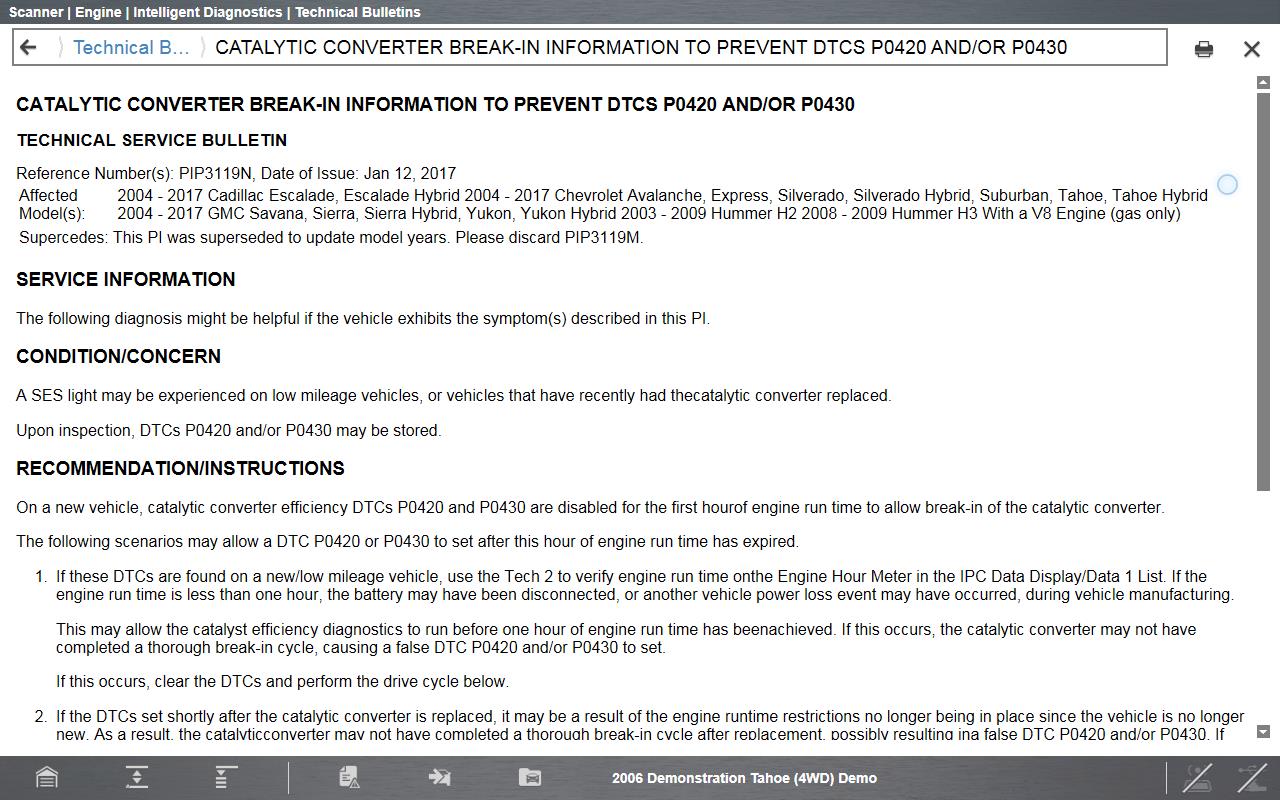

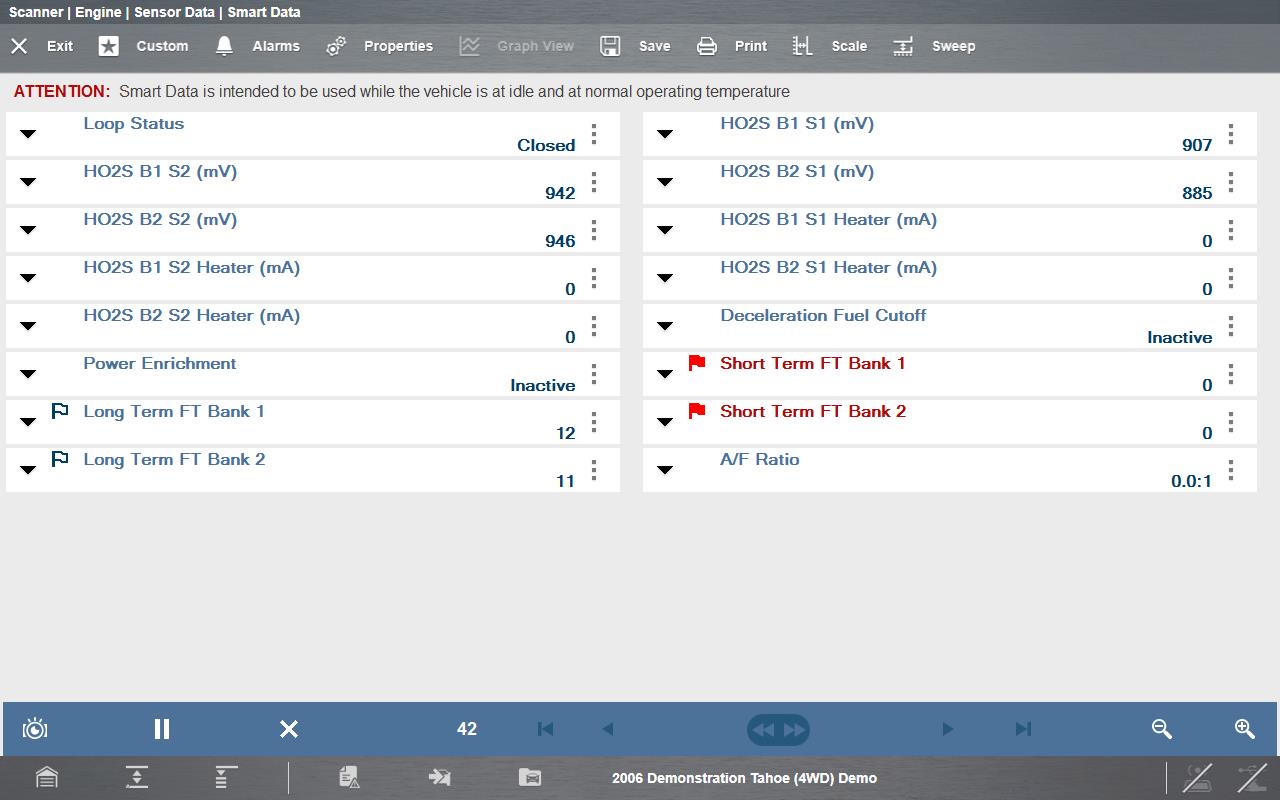

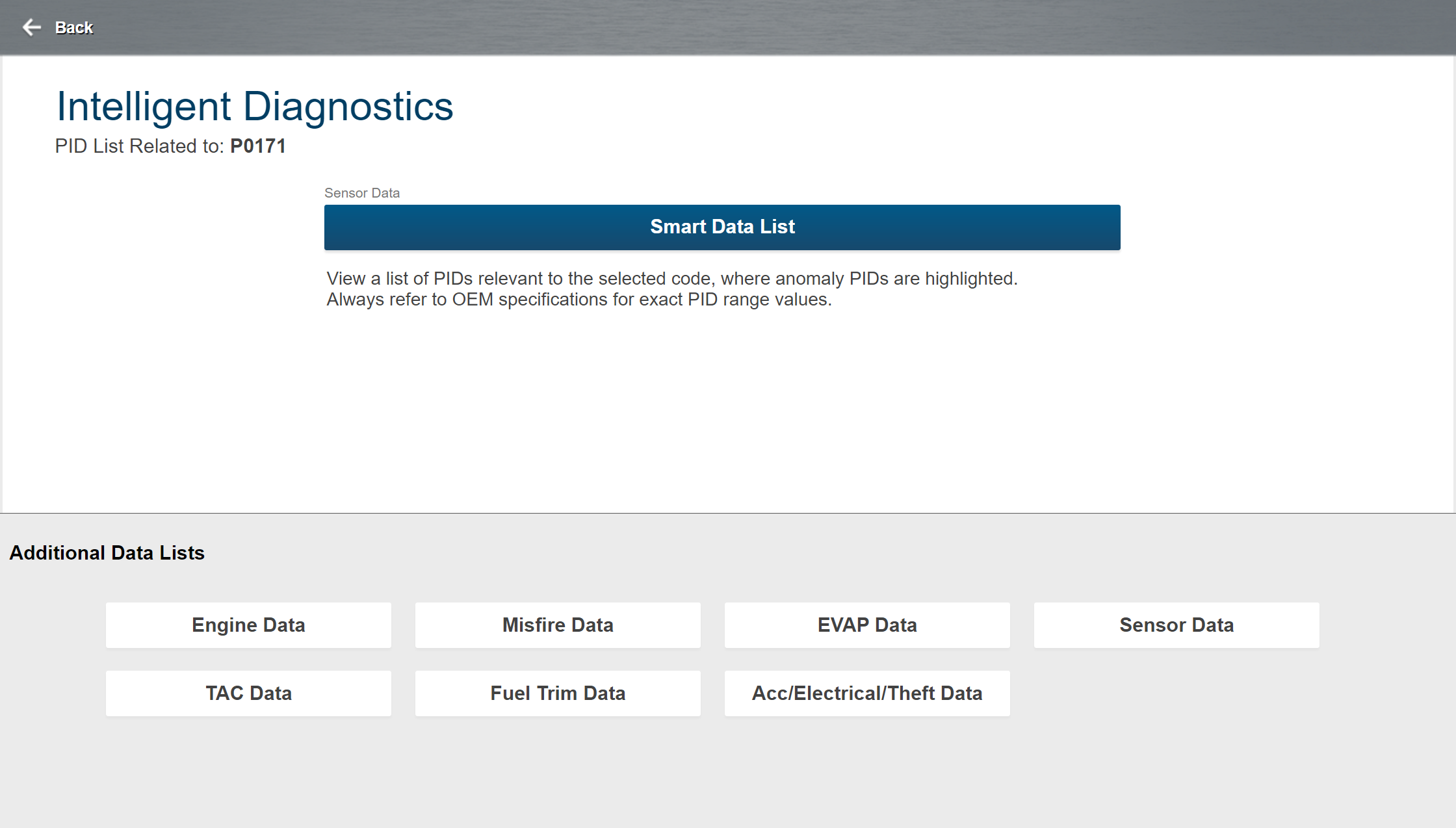

From Technical Service Bulletins and scanner Smart Data to SureTrack^® Expert Information, ZEUS is the most sophisticated, intuitive shop management tool we’ve ever created.

* Access to Fast-Track Intelligent Diagnostics software requires an applicable software agreement.

Open AllClose All

Specifications

Here are the numbers

Access to Fast-Track Intelligent DiagnosticsAvailable on ZEUSBatteryRemovable, Rechargeable, Lithium-ion batteryBoot up SpeedLess than 10 second boot up from Ready ModeBuilt-in CameraSave and share photosDimension: Depth2 inches (51 mm)Display: Resolution1280x800 pixelDisplay: Size10 inchDisplay: TypeResistive, daylight-readable LCD touchscreen, colorExtended Warranty Option1-3 yearsDimension: Height8.23 inches (209 mm)Lab Scope / Meter4-channelBandwidth 3MHzSample Rate: Up to 6 million samples/secScale range 0-100mV to 0-400V, 50kV secondary ignitionSweep rate 50 microseconds to 20 seconds (5 min in GMM mode)Live Data Graphing16 graphNavigationTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded Windows® 10Scan ModuleWirelessUSB PortPC connectivityVehicle Coverage12 European automotive makes16 Asian automotive makes21 domestic automotive makesVehicle Systems100+ OEM-specific vehicle systemsWarranty2 yearWeb BrowserChromeWeight (incl. battery)4.4 pounds (2 kg)Dimension: Width12.4 inchesWi-FiWi-Fi Capable

What Is It used For

How can ZEUS help you?

ComebacksDriveability Issues

Measures fluid capacities

Fluid CapacitiesIntermittent Complaints

Resets vehicle maintenance indicator

Maintenance ResetsMulti-Code ProblemsMulti-System IssuesPulling Simple CodesRelearnsRemove & Replace ComponentsScoping Sensors

Reads tire pressure monitoring system

TPMS

Software

DIAGNOSTIC SOFTWARE IS THE POWER INSIDE YOUR SCAN TOOL

From electric cars to autonomous vehicles to new vehicle security requirements, automotive technology changes just about every day. The only way to stay on top of it all is with uninterrupted access to an array of tips and techniques, tests, guided resources, and graphing capabilities from a constantly updated universe of vehicle data resources — exactly what Snap-on^® diagnostic software delivers.

No matter which Snap-on diagnostic platform you choose, keeping its software up to date is the only way to make sure you can always get the most out of it and handle the problems that come your way.

Fast-Track Intelligent Diagnostics¹,²

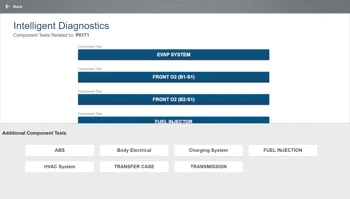

Fast-Track Intelligent Diagnostics guides users through every step needed to find the solution, while avoiding the steps they don’t. It includes continuous Smart Data updates with any Prepaid or Subscription plan. With Smart Data it automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time. It highlights vehicle data that is out of expected range, includes SureTrack common replaced parts and real fixes for the specific DTC, and reset procedures to complete the repair after component replacement with only those that pertain to that fault code shown.

New Coverage Highlights2024 Code Scan & Clear - All Makes

Chevrolet®, Genesis®, GMC®, Hyundai®, Infiniti®, Kia®, Land Rover®, Lexus®, Mazda®, Mitsubishi®, Nissan®, Subaru®, Tesla®, Toyota® and Volvo®

2024 Model Year Update

- 2007-2014 A3 Transmission and Airbag
- 2014-2020 A3 Airbag, Battery Energy Control Module and Drive
- 2009-2017 A4 Drive Motor Control
- 2011-2019 A6 Park Assist and Drive Motor Control
- 2019+ A6 Brake Booster Module, DC/DC Converter and Drive Motor Control Module

Audi® A3, A4 and A6

2008-2014 X6 New Systems
- Servotronic
- Valvetronic 1
- Valvetronic 2
2009-2010 X6 Hybrid New Systems
- Integrated Chassis Management
- Vertical Dynamics Module
- Damper Satellite Modules x 4

Guided Component Tests 2021-2023 330e and 330 xDrive 2.0L Hybrid Engine 2020-2021 X3 M40i, 3.0L Engine 2022-2023 X3 M40i, 3.0L Hybrid, Engine 2020-2021 X3 M, 3.0L Engine 2020 X5 sDrive 40i and X5 xDrive 40i, 3.0L Engine 2020-2023 X5 M50i 4.4L Engine. 2021-2023 X5 xDrive 45e 3.0L Hybrid Engine

BMW® X6 and X6 Hybrid

2023 Colorado Engine
2021-2023 Express/Savanna 2500, 3500 6.6 L L8T Gas Engine
2022-2023 Silverado Increased Coverage for Transmissions 6, 8 and 10-Speed
2023 Silverado 1500 3.0L LZ0 Diesel
2021 and 2023 Camaro 3.6 LGX Engine
2021 Camaro 2.0 LTG
2021 Trailblazer 1.3 L3T
2023 Equinox 1.5 LSD Gas Engine

Chevrolet® Guided Component Tests

Guided Component Tests
2023 Colorado Engine
2021-2023 Express/Savanna 2500, 3500 6.6 L L8T Gas Engine
2022-2023 Silverado Increased Coverage for Transmissions 6, 8 and 10-Speed
2023 Silverado 1500 3.0L LZ0 Diesel
2021 and 2023 Camaro 3.6 LGX Engine
2021 Camaro 2.0 LTG
2021 Trailblazer 1.3 L3T
2023 Equinox 1.5 LSD Gas Engine

Chrysler® Engine and Transmission

2023+ Hornet Special Functions:
- Anti-lock Brake Control Module
- Assembly Check
- Brake Discs Substitution
- Brake Pads Substitution
- Caliper Substitution
- Check Air Presence in ABS Unit
- Maintenance Mode Electric Park Brake ENTER (Set to Active)
- Maintenance Mode Electric Park Brake EXIT (Set to Not Active)
- Occupant Classification System
- Clear Historical Data Record
- Re-zero Occupant Classification System
- Instrument Cluster Module
- Last Service Date
- Reset Service Information

Guided Component Tests
2023 Charger 6.2 Engine
2023 Durango 6.2L Engine
2023 Hornet Engine, ABS, Transmission, Body Electrical, Starting System, Charging System, HVAC

Dodge® Hornet, Charger, Durango

2023+ F-Series Super Duty
- New Engines – 5.2L Raptor, 6.8L, 7.3L and 6.7L
- Body Control Module – 39 New Variants!
2020+ F-150 Special Functions
- Anti-lock Brake System
- Engine
- Low Pressure Fuel System Test
- Occupant Classification Module
- Passenger System Reset
- Automatic Headlamp Levelling System
- Calibration
More Programmable Module Installation (PMI)
- 2011-2017 Mustang Power Steering Control Module
- 2010-2018 Focus Restraint Control Module
2021+ Bronco Special Functions
- Power Steering Control Module Resets
- Electronic Power Assist Steering Communication Error
- Electronic Power Assist Steering Internal Failure
- Electronic Power Assist Steering Invalid or Missing
- Electronic Power Assist Steering Signal Error
- Electronic Power Assist Steering Voltage Error
- Engine
- Low Pressure Fuel System Test
- Occupant Classification Module
- Passenger System Reset

Guided Component Tests
2021 F-150 3.0 Diesel Engine and 2023 F-150 2.7L, 3.5L, 5.0 Engine
2023 F-250, F-350, F-450, F-550 7.3 Engine and 6.7 Diesel Engine
2022 E-350 and E-450 7.3 Engine
2023 F-250SD, F-350SD 6.8 Engine
2022 Bronco 2.3, 2.7L Engine and Bronco Sport 1.5L, 2.0 Engine
2023 Edge 2.0 Engine
2020-2023 Escape 2.0 and 2.5 Engine
2023 Escape 1.5 Engine
2023 Expedition 3.5 Engine
2020-2022 Explorer, Explorer Limited, Explorer Platinum 3.3 Engine
2022-2023 Explorer 3.0 Engine
2023 Explorer 2.3L, 3.3 Engine
2022 Maverick 2.5 Engine
2022-2023 Maverick 2.0 Engine
2022 Mustang EcoBoost and EcoBoost Premium 2.3 Engine
2020 Mustang 2.3L, 5.0L and 5.2L Engine
2020-2022 Mustang GT and GT Premium 5.0L Engine
2021-2022 Mustang Mach1 5.0 Engine
2021-2023 Mustang 5.2 Engine and 2023 Mustang 5.0 Engine
2020-2023 Police Interceptor Base 3.3 Engine
2022 Ranger 2.3 Engine
2020 Transit Connect 2.0 Gas and Flex Fuel Engine
2020-2022 Transit 150, 250, 350, 3.7 Engine

Ford® PMI, Special Functions, Guided Component Tests

Guided Component Tests
2023 Canyon 2.7L L3B Engine
2021-2023 Savanna 2500, 3500 6.6 L L8T Gas Engine
2022-2023 Sierra 6-, 8- and 10-Speed Transmission
2023 Sierra 1500 5.3L L84 Gas/Ethanol Engine

GMC® Canyon, Savanna, Sierra

2021+ Pan America
2022+ Sportster S
2022+ Nightster
2023+ CVO

Harley-Davidson® Added Models

2016-2022 CR-V Engine, Power Steering Control Module, Intelligent Cruise Control Module Actuator Tests and Special Functions
2016-2021 Clarity Intelligent Cruise Control Module Actuator Tests and Special Functions
2015-2020 Civic Intelligent Cruise Control Module Actuator Tests and Special Functions
2019+ Passport Engine Actuator Tests and Special Functions

Honda® Actuator Tests & Special Functions

2023 Oil Level Sensor
2021-2023 Active Purge Pump, Active Purge Pump Pressure Sensor
2022-2023 Active Exhaust Solenoid

Plus new Location Images for 2006 Tiburon

Hyundai® Guided Component Tests

2010 - 2015 XF Active Damping Control Module codes and data, actuator tests and special functions
2013 - 2015 XF Chassis Control Module codes and data, actuator tests and special functions

Jaguar® XF Coverage Updates

Guided Component Tests
2023 Compass 2.0L Engine and 8F30 Transmission
2023 Cherokee 2.4L Engine

Jeep® Compass and Cherokee

1.6L and 2.0L
- 2023 Oil Level Sensor
- 2021-2023 Active Purge Pump, Active Purge Pump Pressure Sensor
- 2021-2023 Fuel Tank Differential Pressure Sensor

Plus New Location Images
2017-2020 Sorrento
2022 Carnival
1995-2002 Sportage

Kia® 2021-2023 K5 Guided Component Tests

Towbar codes, data, functional tests and special functions

Land Rover 2015+ Discovery Sport

Chassis Control Module Special functions
2013-2016 Range Rover
2014-2016 Range Rover Sport
Speed Control Module
2014+ Discovery Sport
2015+ Range Rover Evoque
2015+ Discovery Sport Towbar: Codes, data, functional tests and special functions

Land Rover® Coverage Updates

2022 NX250
2023 NX450+
2023 NX350 T24A-FTS New Model and Engine
2023 RX500H T24A-FTS New Model and Engine

Lexus® New Models for Guided Component Tests

Guided Component Tests

2001-2006 Tribute Engine 2.3/3.0 EGR system
2020-2022 CX5 ADAS System
2020-2021 CX3 ADAS
2021-2022 CX-5 New Signature 2.2 Diesel Engine
2020-2021 CX30 2.5 ADAS
2022 CX30 2.5 Engine
2023 CX30 2.5 Engine
2023 CX5 2.5 Engine
2023 CX50 2.5 Engine

Mazda® Engine and ADAS

Guided Component Tests
2021-2023 GLE63 S AMG 4.0L Hybrid Engine
2020-2022 E350 2.0L and GLC300 2.0L
2020 GLC350e 2.0L Hybrid Engine
2020-2021 GLC63 S AMG 4.0L Engine and 2020-2021 GLC63 AMG 4.0L Engine
2020-2023 GLE53 AMG 3.0L Hybrid Engine
Cam Adjustment Valve tests for select 4.0L engines

Mercedes-Benz® EngineNew Model! 2024 Alfa Romeo® Tonale

Guided Component Tests
2023 Altima 2.0L & 2.5L ABS, Engine and Transmission
2023 Frontier 3.8L ABS and Engine
2023 Murano 3.5L Engine
2022 - 2023 Pathfinder 3.5L-Engine and Transmission
2020 - 2023 Sentra (all models) 2.0L-ABS and Engine
2016 - 2019 Titan 5.0L Diesel ABS, Engine and Transmission (NEW)
2020-2023 Titan 5.6L ABS and Engine
2021 Versa 1.6L Engine

Nissan® ABS, Engine and Transmission

Guided Component Tests
2022-2023 BRZ and WRX 2.4L ABS, Engine and Transmission
2022 Crosstrek Hybrid 2.0L Hybrid Electronics
2023 Crosstrek and Impreza 2.0L ABS, Engine and Transmission
2023 Ascent, Legacy and Outback 2.4L ABS, Engine and Transmission
2023 Crosstrek, Forester, Legacy and Outback 2.5L ABS, Engine and Transmission

Subaru® ABS, Engine and Transmission

Models S, X, Y and 3
2012-2020 Model S
2016-2020 Model X
2023 and earlier Models S, X, 3 and Y
Onboard function instructions to find Alert Codes, and how to unlock Gateway and enable/disable Service Mode

Guided Component Tests
2023 and older Model S and X ABS
- ABS Module
- Brake Fluid Level Switch
- Brake Pedal Switch
- Electric Brake Booster
- Electronic Parking Brake Actuator
- iBooster Pedal Sensor
- Wheel Speed Sensor

Tesla® - New Make!

Occupant Classification System calibration

Toyota 2017+ Camry

2022 Corolla Cross Clutch Travel Sensor
2023 Highlander T24A-FTS Engine
2023 Prius M20A-FXS E
2023 Prius Prime M20A-FXS Engine

Toyota® Guided Component Tests

2018+ Crafter Transmission
2010-2014 Touareg Anti-lock Brake Control Module

Volkswagen® System Coverage Updates

Codes, data, actuator tests and resets

Ford 2014 - 2020 Transit Dosage Module

Special functions

Ford 2021+ E-Series Transmission

Cruise Control Module Radar Dynamic Calibration

Ford® 2015 – 2020 F350®Fast-Track Intelligent Diagnostics¹,²For more information, see Features.New Features and Enhancements

Visit snapon.com/securitylink for details

More makes for more access via Security Link™

Product training available in English and French

Multilingual Product Training Support

Toggle between English and 7 different languages, including French and Spanish

New Snap-on® Cloud multilingual support

Simultaneously select multiple files to download or delete.

Easier and faster file use within Snap-on CloudSoftware Options

Offers 6 months of current domestic, Asian and European coverage

Basic UpgradePrePaid Plan - 1 or 3 year

Continuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track^® Intelligent Diagnostics-enabled products receive complete data services for one year

Subscription

Features

Here is the good news

Fast-Track Intelligent Diagnostics guides users through every step needed to find the solution, while avoiding the steps they don’t. It includes continuous Smart Data updates with any Prepaid or Subscription plan. With Smart Data it automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time. It highlights vehicle data that is out of expected range, includes SureTrack common replaced parts and real fixes for the specific DTC, and resets procedures to complete the repair after component replacement with only those that pertain to that fault code shown.

Fast-Track® Intelligent Diagnostics¹Adjustable Graph Scale

Reads the VIN for you

Reads the VIN for youAutomotive Coverage as far back as 1983 model yearBi-directional ControlsBoots up in <10 secondsCamera

ID BY Camera is for use with stubborn or older vehicles unable to take advantage of Instant ID. It offers automated VIN identification using the scan tool's onboard camera

Camera IDCharging SystemCode Scan ReportCoverage - 48 makes as far back to 1983Custom Data ListsData Manager

Ethernet/DoIP Support is built in for Jaguar, Land Rover and Volvo models with Ethernet Adapter

Ethernet Support

Shows you how to test, where to connect and what results to look for

Fast Track® Guided Component TestsFull range of component test functionalityFunctional Tests

Find over 70 topics and hundreds of on-tool Guided Component Test courses ranging from 5-30 minutes, including Power User Tests, How To’s and more

Guided Component Test TrainingHigh-Speed Lab ScopeIgnition Scope Capabilitilies

Auto ID using Mode 9 VIN

Instant IdInstant Screen Shots

Ability to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.

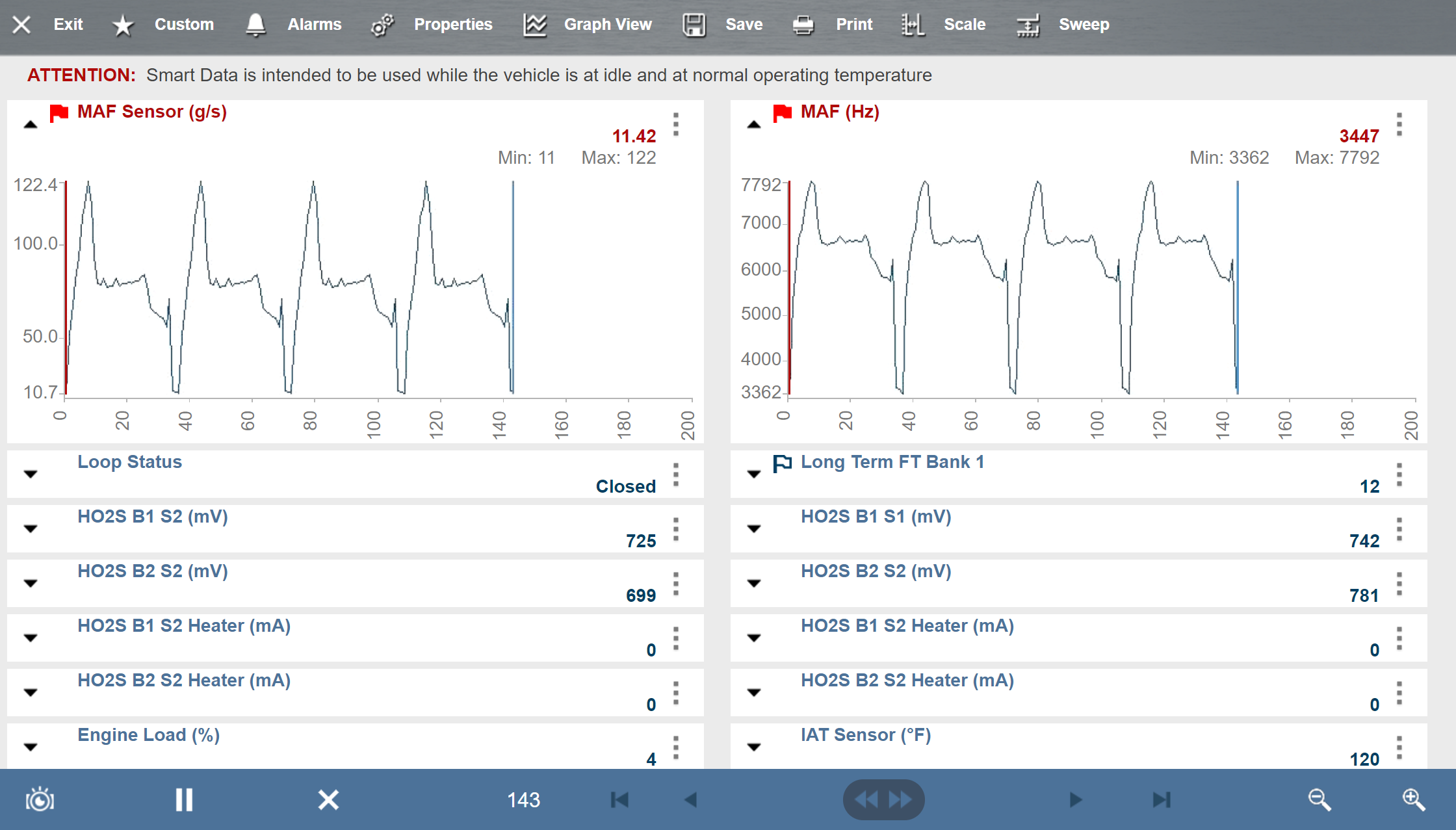

Live Data Graphing

One-Touch Full Vehicle Code Scan & Clear quickly checks and clears codes for all available modules on the vehicle.

One-Touch Code Scan and Clear

Over-the-air download that occurs in the background. Software installation at your convenience.

Over-Air Automatic Software UpdateOnline Instructor-led Training

Records All PIDS While On or Off Screen

PID RecordingPID SortingPID Trigger (a Snap-on exclusive)

Complete data services, domestic, Asian and European coverage plus SureTrack®, Smart Data and more. One and three year plans available.

Prepaid Software Plan, 1 and 3 year

A companion to the Pre- and Post-scan Reports.

Now document recalibration completion for one or many systems.

Report: ADAS Recalibration

Friendly simplified language report for owners. Includes Pre-/Post-Scans for shop use.

Report: Diagnostic Health ScanReset Procedures

Access direct from the scan tool to the FCA vehicle gateway module for 2018 and newer models

Easy set-up process by any device with Wi-Fi and browser

Turnkey access to vehicles directly from the scan tool

Security Link™³

With Wi-Fi and current software get all the necessary information about related and required repair procedures that must be done to complete the job

Service Resets and Relearns³ShopKey Solutions (optional)

Upload images to print, store and share with others

Snap-on® CloudSoftware Status Icon

Subscription guarantees that you receive continuous coverage, access to secure gateways and SureTrack expert information, and for those devices that have it, Fast-Track® Intelligent Diagnostics is always enabled.

Software Subscription

SureTrack Community on-tool web browser

SureTrack Community²

Integrated expert information on the tool with a current Snap-on software upgrade. Simply connect the diagnostic platform to Wi-Fi to get Real Fixes and verified parts replacement records harvested from millions of actual repair orders.

SureTrack® Expert Information²Touchscreen OperationTrouble Code DefinitionsTSBS, Campaigns & Recalls

Shortcut key for popular functions

User-programmable function key

Waveform Library and Known Good Test Values

Waveform LibraryWeb BrowserWi-Fi enabledWi-Fi Status Icon

Direct from tool

Wireless PrintingWireless Scanner

Scalable X-axis for live data graph

Zoom

Resource Center

Look here for the ZEUS User Manual, other helpful documents and Training

ZEUS User Manual
