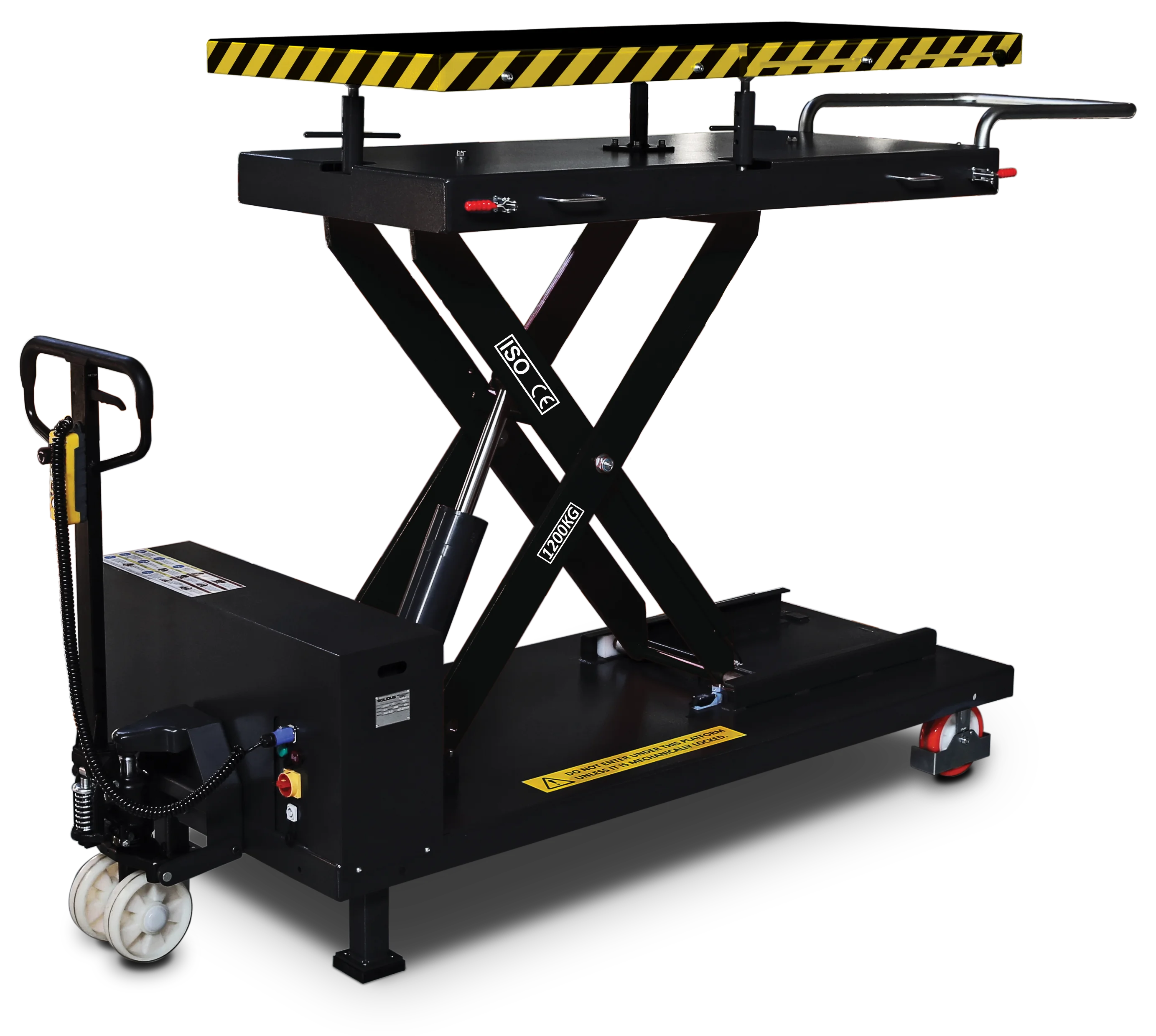

Electric & Hybrid Vehicle Battery Lift

Model: EELS735A

Now is the time to future-proof your workshop with the SUN EV and HEV battery lift. The Sun Electric and Hybrid Battery Lift is a dedicated lifting table to assist with mounting and removing batteries from electric and hybrid vehicles. It features a dual-speed electro-hydraulic lifting system and has a total lifting capacity of 1200kg within a lifting range of 800mm to 1810mm

electric vehicle battery lift
  • electric vehicle battery lift
  • electric vehicle battery lift
  • electric vehicle battery lift
  • electric vehicle battery lift
Open AllClose All
Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Base to Floor Clearance196mmControl Voltage24vFrequency50HzFull Stroke Time45sLifting Capacity1200kgMaximum Height1810mmMinimum Height800mmPlatform Length1741+325mmPlatform Width800mmVoltage220v
Features



close modal
A three-pin plug is used to control the 24V system

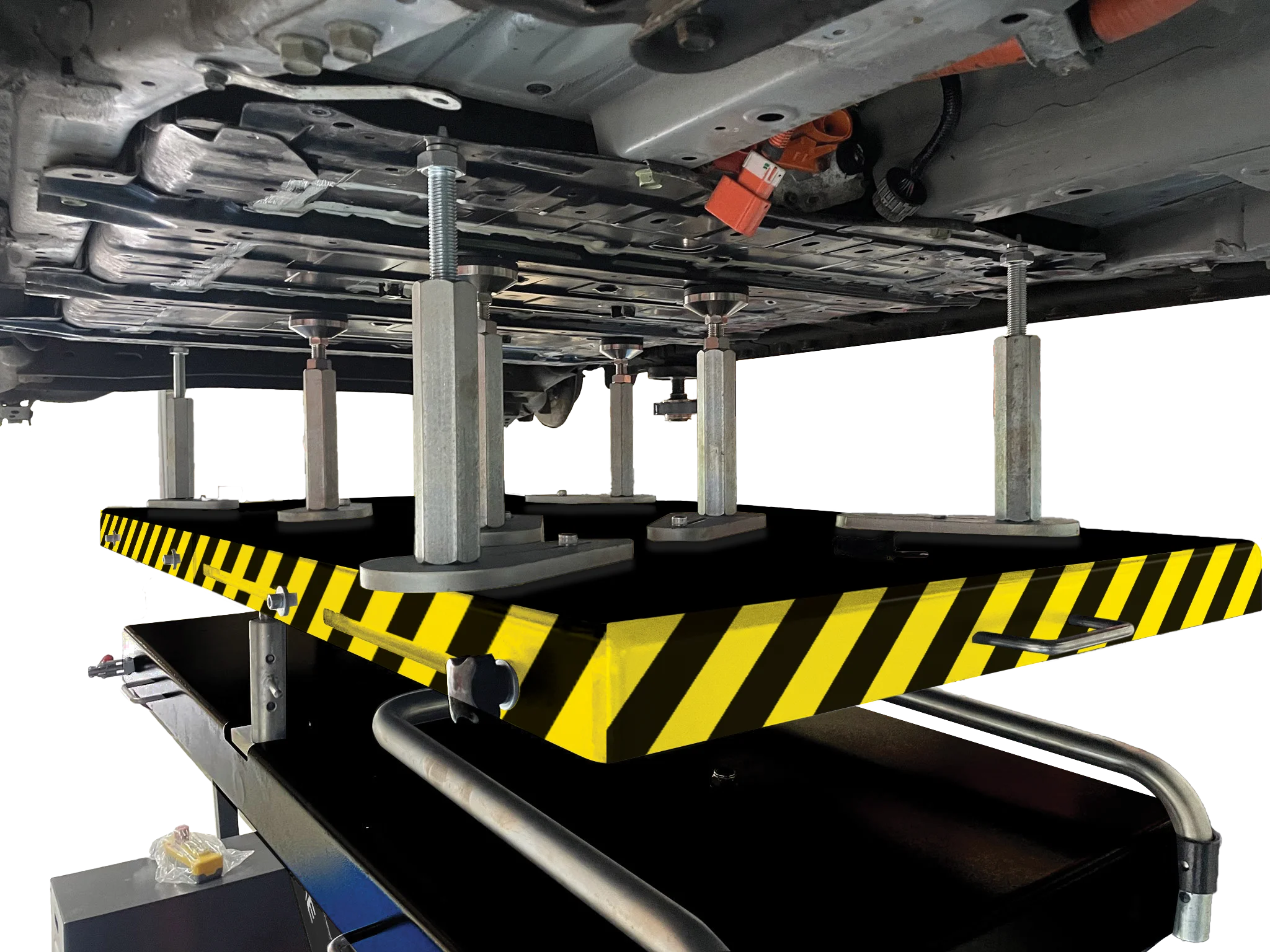

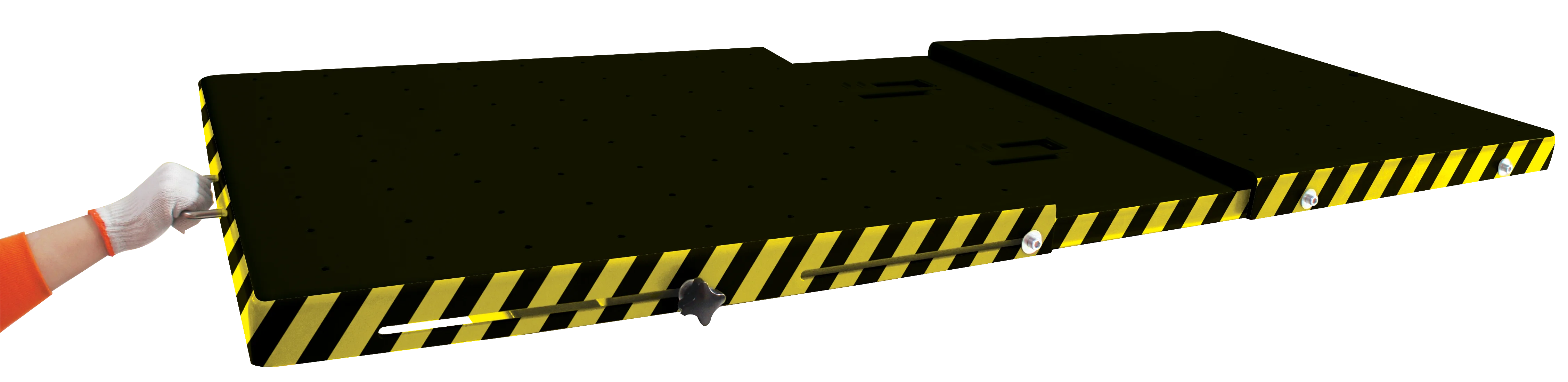

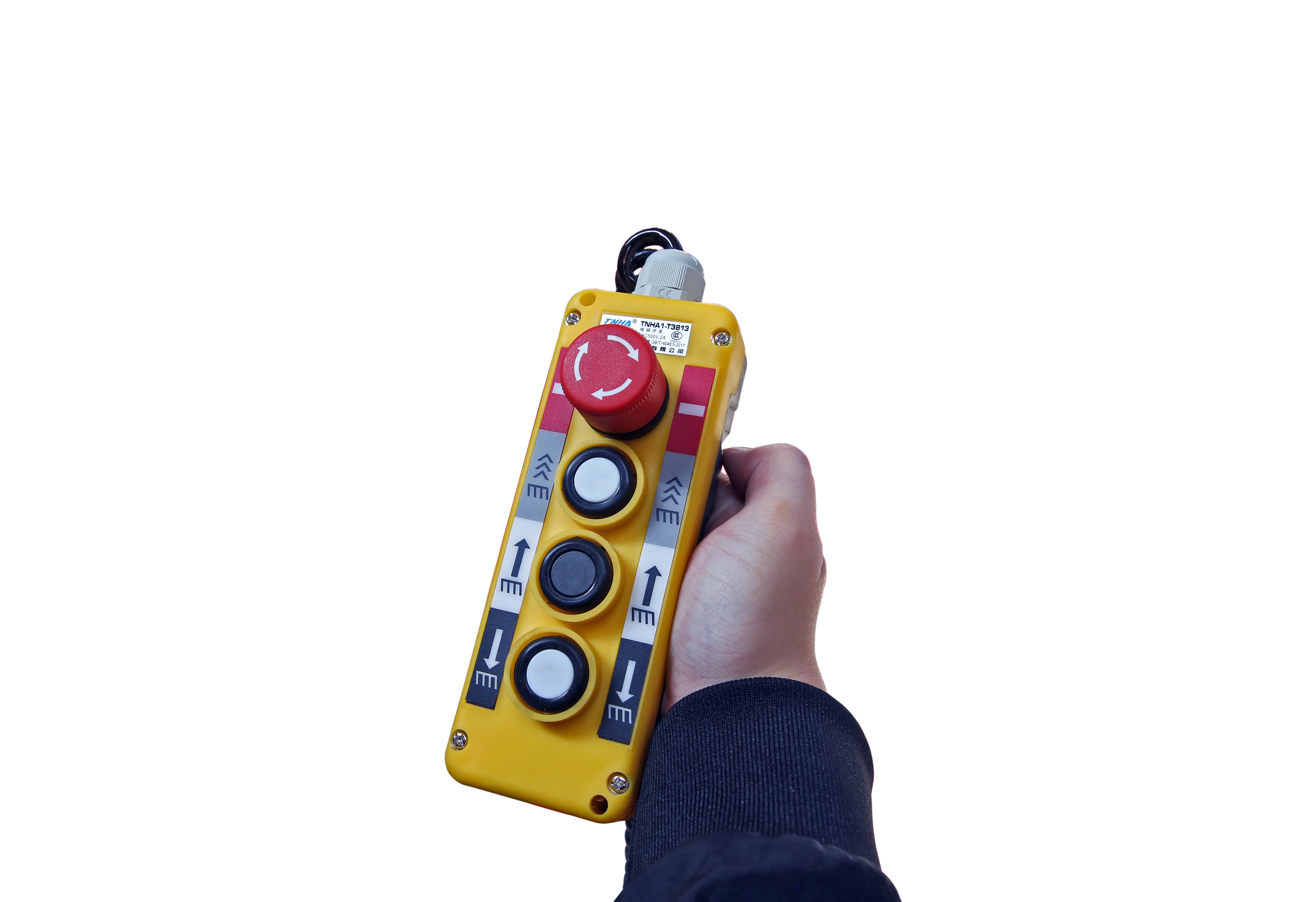

Compatible with EV, BEV, HEV, and PHEV vehicles for battery removal and installationDual-speed systemIt may also be used to disassemble the engine, gearbox, drive axle, fuel tank, and suspension of both petrol and diesel powered vehiclesMechanical locking system that is electrically releasedOil hose with double steel wire fabrications that has passed a pressure test at 40 MPa can work at twice the nominal working pressure without breakingPins and pads are included for positioning and securing componentsPlatform extends to a maximum of 325mm to accommodate large loadsStop, slow rise, standard rise, and down functions are all available on the hand-held lift controlsThe suspend platform can tilt within a height of 40mm. The lower platform can move laterally within a distance of 20mmWorking table with reserved holes (100mm x 100mm) for positioning and mounting components with specialised fixtures
